Vertical Venting
Direct Vent
Combustion
See Figure B5-53.

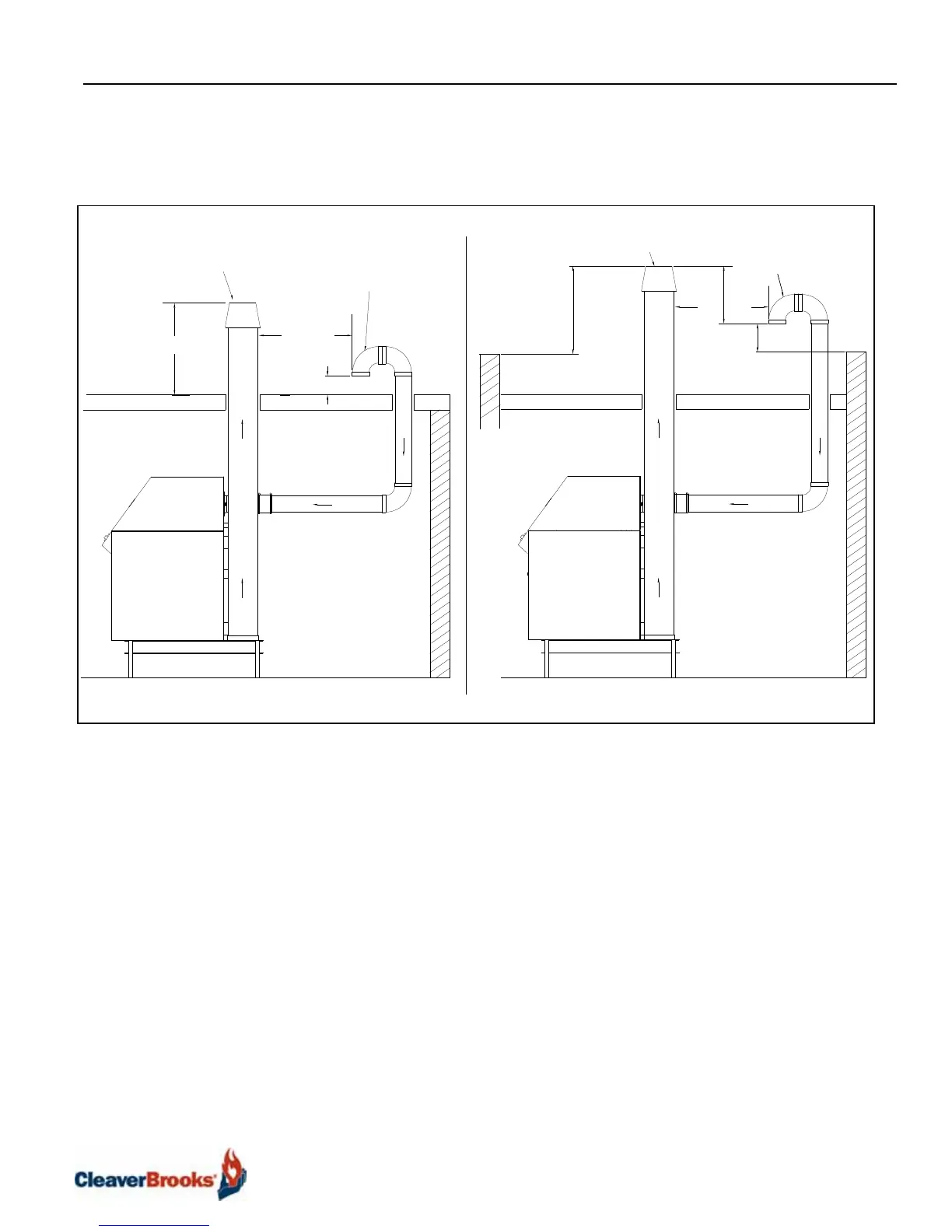

Figure B5-53. Vertical Stack with Direct Vent Combustion Air
As noted in Paragraph B above, these installations use air from outside the building
for combustion. The same recommendations apply as noted in B and also, the
recommendations on flue vent sizing according to Table B5-26.
ELECTRICAL Voltage requirements for the Fan Motor are 115 - 120/1/60. Control Circuit voltage
is 120/1/60 for all boiler sizes. Refer to Table B5-3 "Ratings" for ampacity
requirements.
Refer to Figure B5-54 through Figure B5-56 for wiring connections and control
locations.
Boiler
Vent Termination
Air Intake (w/Screen)
48" Minimum
48"
Minimum
12"
Minimum
above roof
or snow line
Boiler
Vent Termination
Air Intake (w/Screen)
48" Minimum
12" Minimum
above parapet
or snow line
36" Minimum
above intak
24" Minimum
With parapet wall
