Setup using the web interface
98-144390-A Chapter 4: Setup and operation 4-3
Setup and operation
Topics in the web interface
The site map shows the existing menus and submenus. You can click on each menu in the
site map to go directly to the page or display the respective submenu.
The DASHBOARD is the first screen that is displayed when the user or administrator enters
the IP address of the web interface. It shows the properties and status of the EXPLORER
3075GX. The web interface has the following sections:

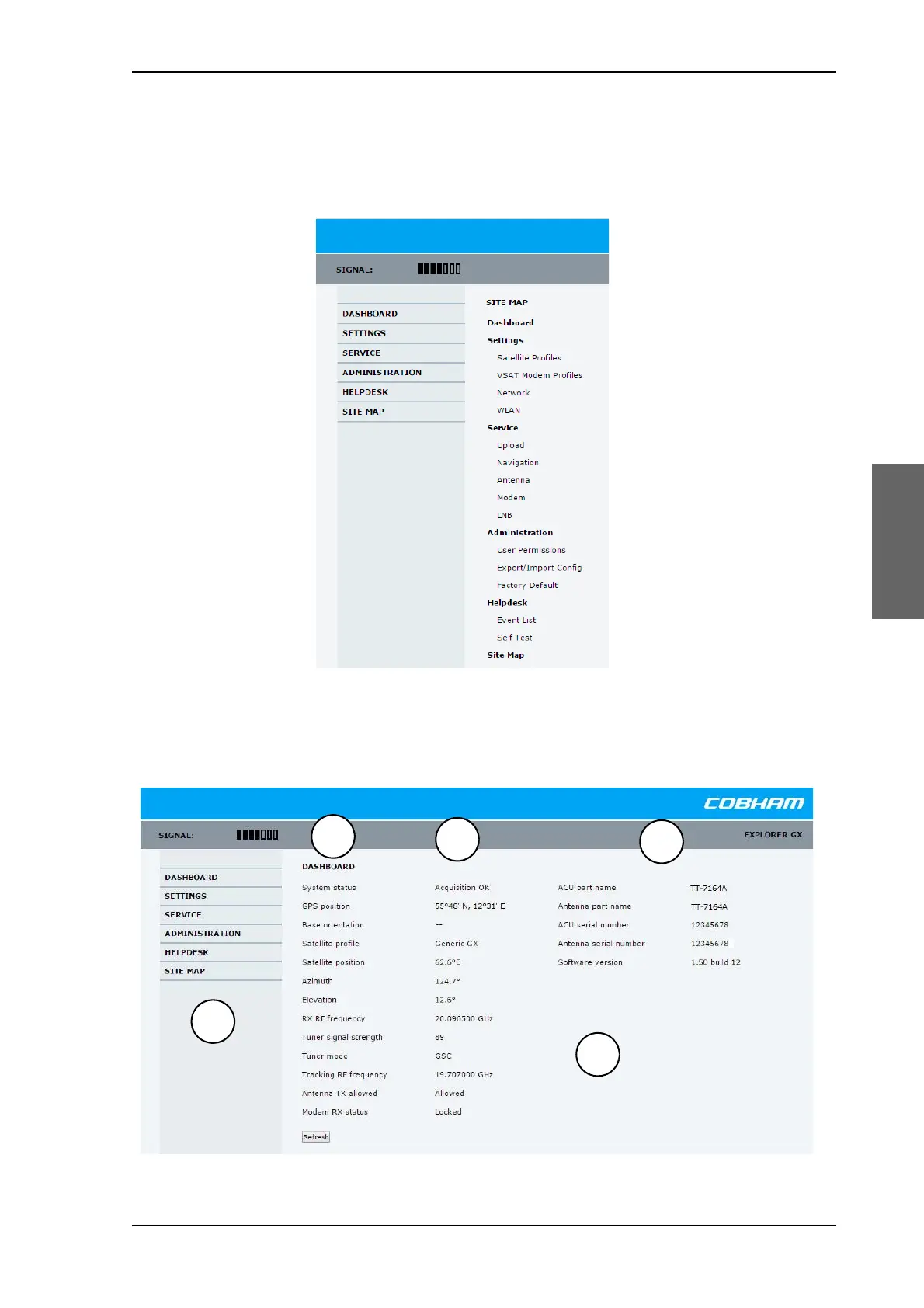

Figure 4-3: Topics in the web interface (SITE MAP)
Figure 4-4: Web interface: DASHBOARD
1
2
3
5
4
