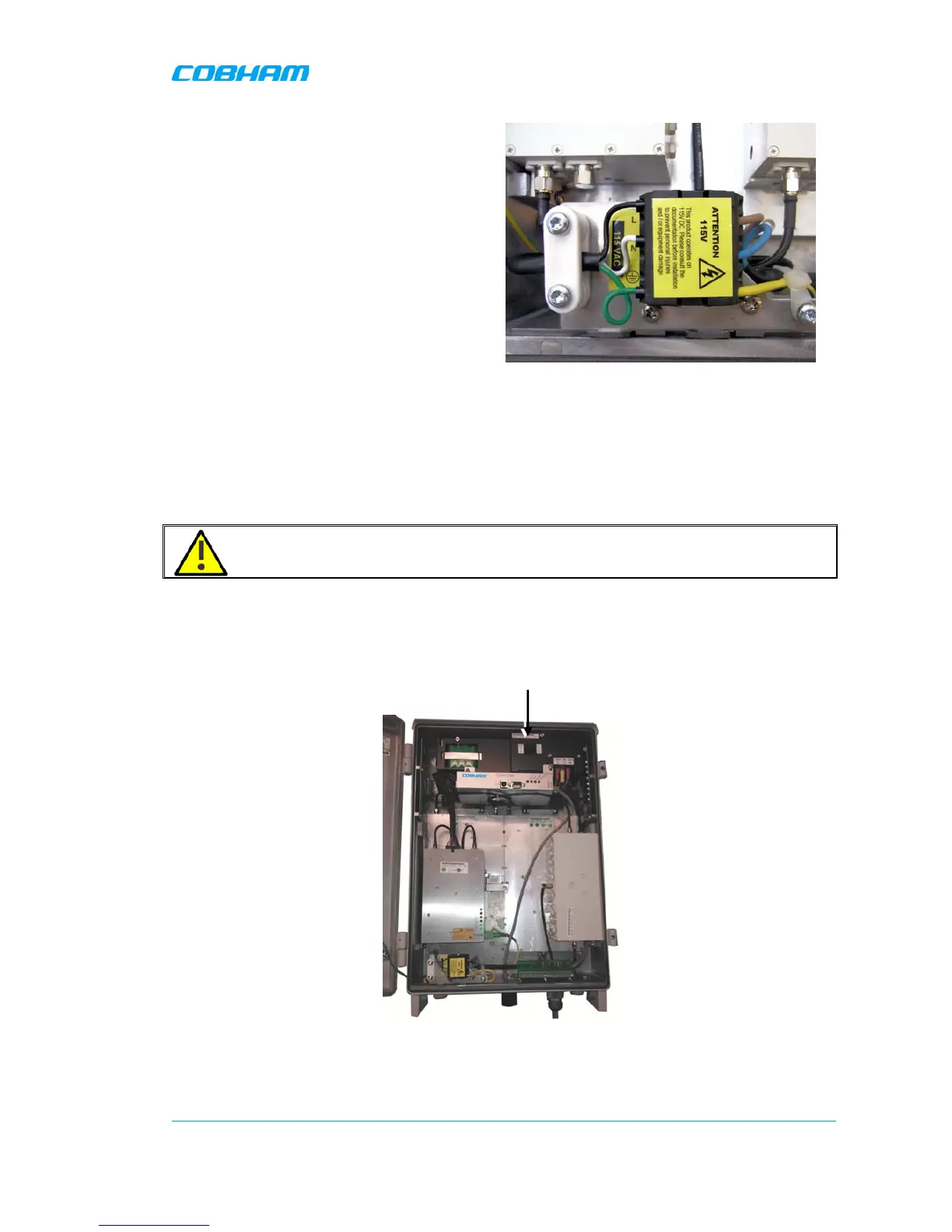

MBF-40 SMR700/SMR800 PS REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
Cobham Wireless – Coverage Date: 28-Jan-16 www.cobham.com/wireless
Doc. No. 00046UM Rev. 2.1
Page | 29
5. 115 VAC connect wires to the plinth as
follows:
• Phase linked to Black cable
• Neutral linked to the White
cable
• Ground to the Green cable
Figure
2-26: 115VAC Power Connections
2.3.7.2 Power ON
The power supply has a switch which allows it to be set in two positions:
• ON – repeater is operational
• STAND-BY - the repeater is still connected to the power supply but not operational.
CAUTION!! Make sure the antenna cables or 50 ohm terminations are connected to the
repeater’s antenna connectors before the repeater is turned on.
To power on the repeater
1. Locate the power supply switches inside the repeater.
Figure 2-27: Example of Single Power Supply Model
