COBHAM Sailor 900 VSAT - Figure 8-56: Azimuth Motor, Remove Cover; Figure 8-57: Azimuth Motor, Loosen the Belt Tensioner

To Next Page

To Previous Page

Removal and replacement of ADU modules

8-48 Chapter 8: Service & maintenance 98-133966-G1

6. Loosen the 15x4 mm Allen screws (the 3 Allen screws on top are

longer than the rest) on the cover over the azimuth drive modules,

and remove the cover (lift and slide).

7. Loosen the belt tension device by loosening the 4x4 mm Allen

screws (thread size M5).

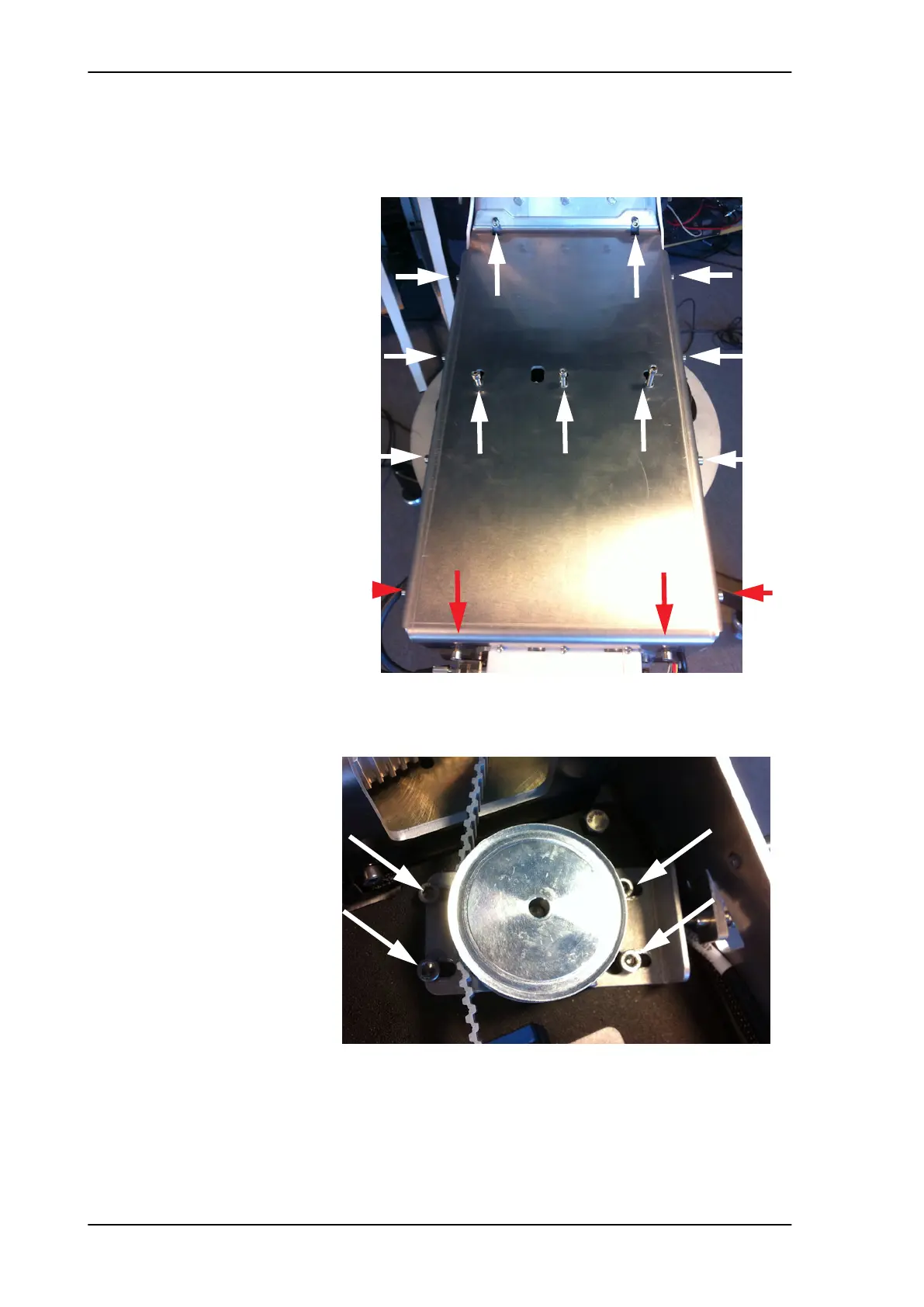

Figure 8-56: Azimuth motor, remove cover

Figure 8-57: Azimuth motor, loosen the belt tensioner

L=35 mm L=35 mm L=35 mm

SAILOR900TM.book Page 48 Monday, September 16, 2013 11:01 AM
