1.7 - Cabled Operation
1.5 - Powering On/Off Reader
To power on the reader, press and hold either of the red trigger buttons for 3 seconds (Figure 1.9).
The reader will power down after 2 hours of non-use. To change the default settings, please see Section 4.6 - Reader
Power Off Settings.
1.6 - Batch Operation
1.6.1 - Introduction
Batch data storage and data transfer are controlled by the resident JavaScript application on your CR2500 reader. Please
consult the Code Viewer user manual for the application on your CR2500 for instructions on how to control data storage
and transfer.
1.7.1- Introduction
The CR2500 is a Multi-Interface Unit (MIU) and is available with USB (6 ft. or 12 ft.), RS-232 (Serial) and PS/2 cables. All of
the cables are connected to the CR2500 with a 8-pin DIN connector (Figure 1.3)
Hand Held CR2500 - To install a cable directly to the CR2500, correctly line up the 8-pin DIN connector into the back end
of the reader. The arrows on the connector should be facing down (Figure 1.10). When the reader and the cable connector
are lined up, fi rmly push the cable into the reader. The cable has a locking mechanism that will fi rmly hold the cable in place
(Figure 1.11). To deattach the cable from the reader, you must pinch the plastic on the 8-pin DIN and pull back to disengage
the connector.

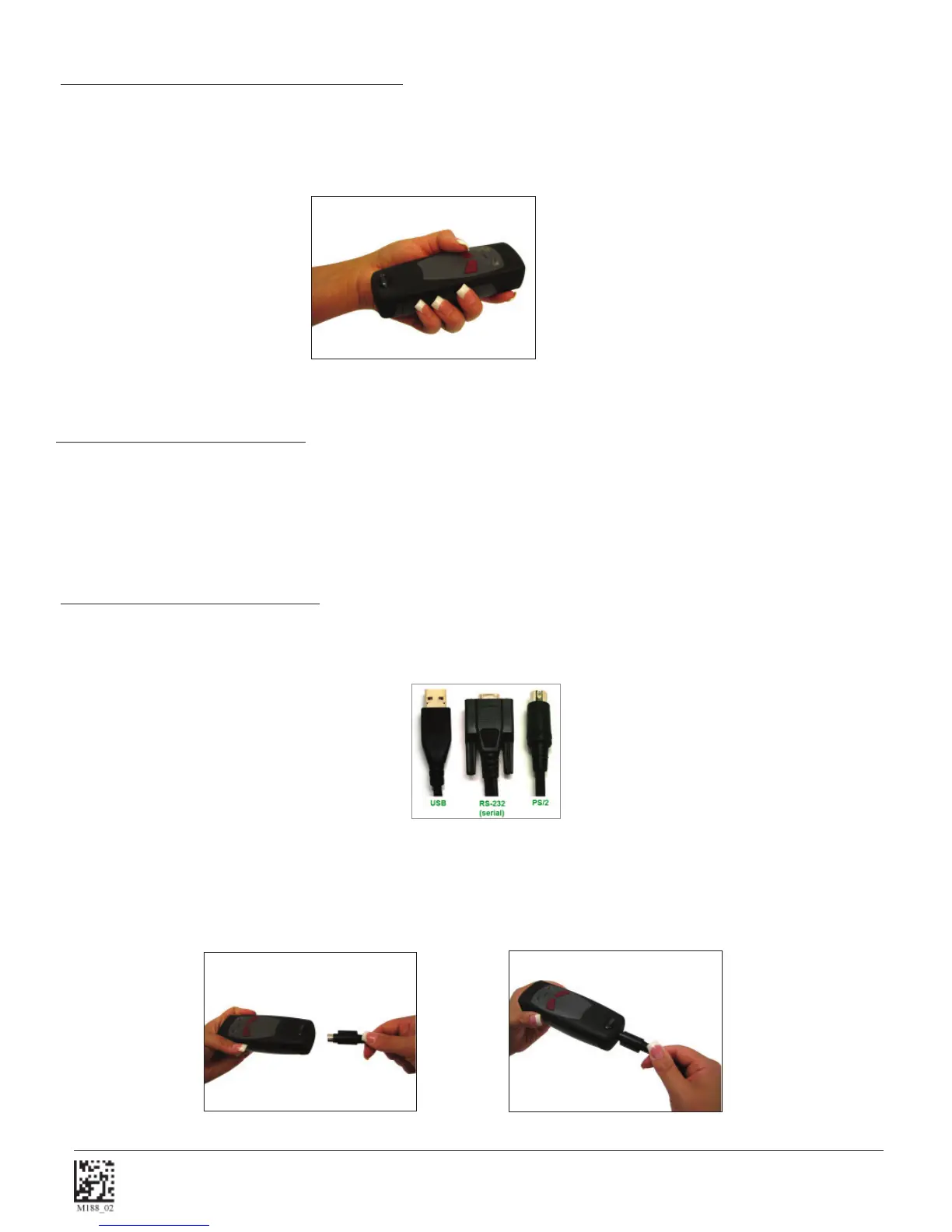

Figure 1.10 Figure 1.11
Figure 1.9
