Code Reader 2500 User Manual

C004386_03_CR2500_ User_Manual - 5
Save Settings

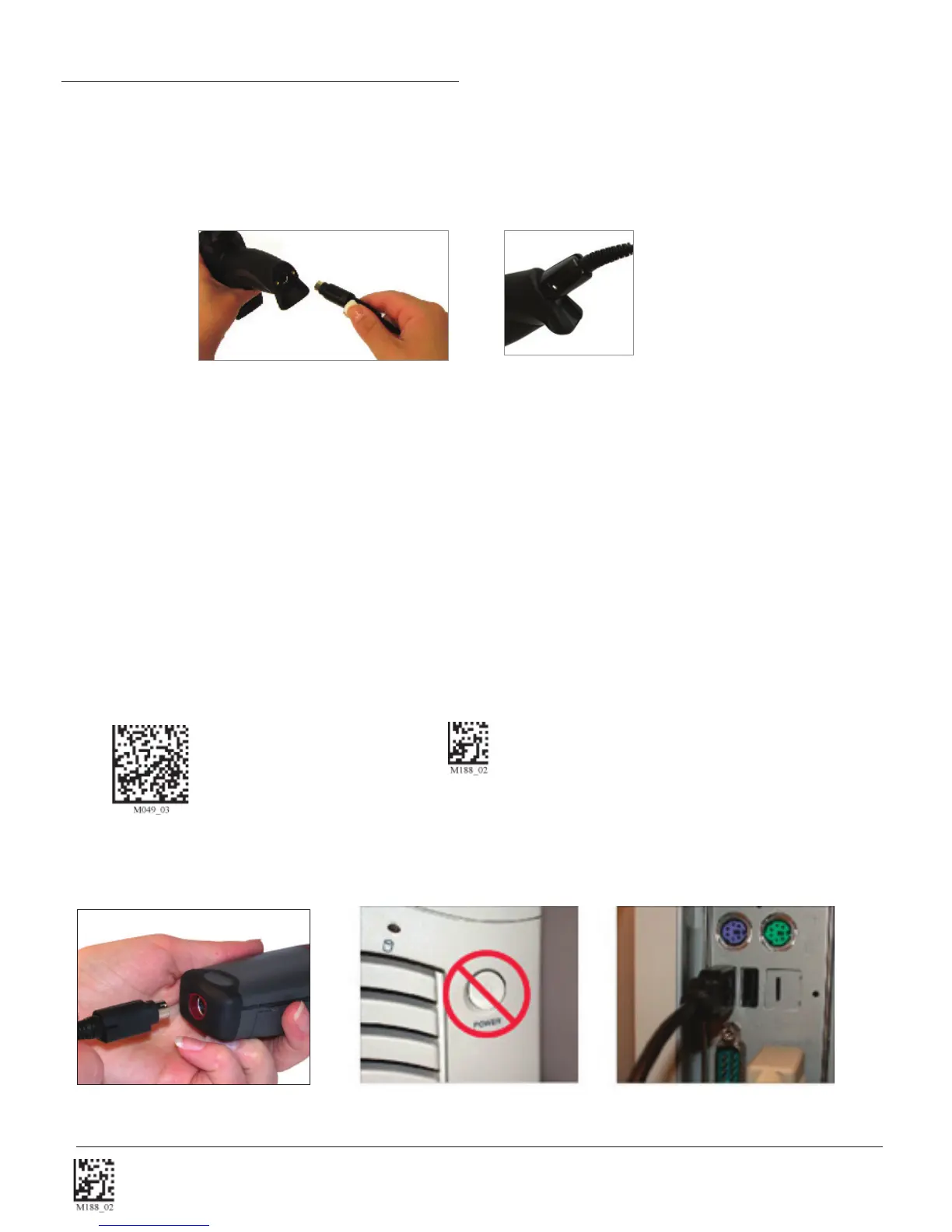

CR2500 with Cabled Handle - If a handle was purchased for use with the CR2500, the 8-pin DIN connector is at the
bottom of the handle (Figure 1.2). Insert the 8-pin connector and fi rmly push the cable into the handle. The cable has a
locking mechanism that will fi rmly hold the cable in place. If using the H2 cabled handle, for additional stability, there is an
optional cable attachement clip that can secure the cable to the handle with two threaded screws (Figure 1.13).
Figure 1.12
Figure 1.13
1.7.2 - CR2500 as a USB Keyboard
To connect the CR2500 to your host computer via USB interface:
1. Attach the USB cable to CR2500 (Figure 1.14).
2. There is no need to power of the computer (Figure 1.15) Connect the USB cable to a USB port on the computer (Figure
1.16).
3. Once properly connected, the CR2500 will power on and beep.
4. Scan the below code (M049_03) for USB Keyboard Mode:
USB Keyboard Factory Reset Save Settings
7. Scan the Save Settings Code (M188_02)
Figure 1.15
Figure 1.16
Figure 1.14
1.7 - Cabled Operation (continued)
