Code Reader 2500 User Manual
4
of 1
of 1 rating
60 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
C004386_03_CR2500_User_Manual -
28

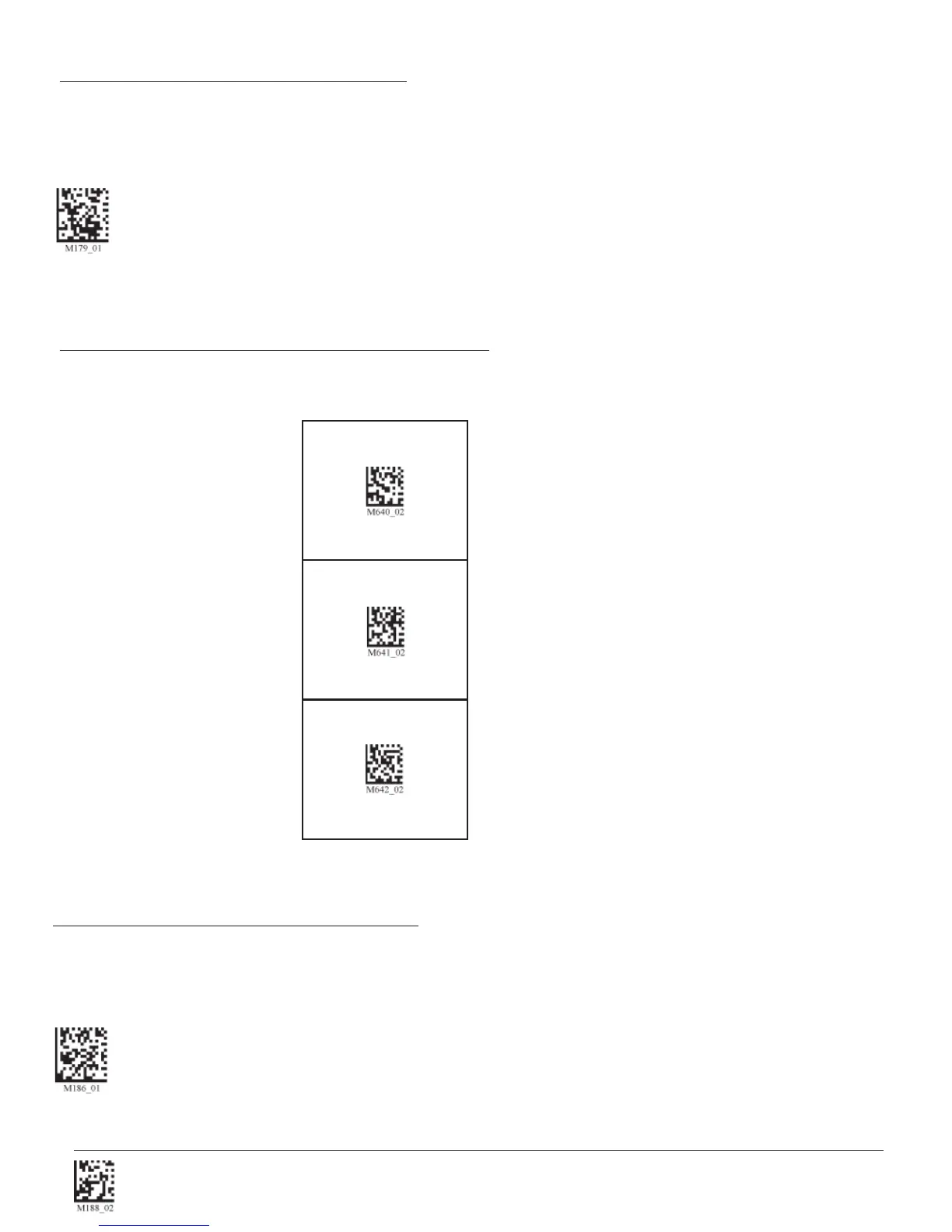

Save Settings
2.4 - Left T
rigger Programming
Scan the following codes to set the left trigger functionality:
Left T
rigger T
ake Picture
2.5 - Right T
rigger Optimization Matrix
2.6 - Right T
rigger Programming
Scan the following codes to set the right trigger functionality:
Right T
rigger T
ake Picture
Both
Fields
Wide
Field
SXGA
High
Density
Field
33
35
Table of Contents
Default Chapter
1
Code Reader 2500
1
Statement of Agency Compliance
2
Table of Contents
4
Chapter 1 - Getting Started
7
Introduction
8
Unpacking
8
Reader Battery Installation
9
Attaching Handles
9
Powering On/Off Reader
10
Batch Operation
10
Introduction
10
Cabled Operation
10
CR2500 as a USB Keyboard
11
Addional USB Communication Settings
12
Keyboard Support
13
PS/2 Cable Installation Guide
14
RS-232 (Serial) Cable Installation Guide
15
Additional RS-232 (Serial) Communication Data Bit Settings
16
Additional RS-232 (Serial) Communication Baud Rate Settings
16
Additional RS-232 (Serial) Communication Parity Settings
16
Bluetooth Radio Operation
17
Introduction
17
Bluetooth Radio Auto Connect
19
Bluetooth Radio Auto Disconnect
19
Bluetooth Radio Time out Settings
20
Bluetooth Radio out of Range Notifi Cation Settings
20
Auto Save Last Bluetooth Address
20
Confi Guration for Belkin Bluetooth Manager Software (Version 1.4.2.10)
21
Confi Guration for Toshiba Bluetooth Stack Instructions
23
Confi Guration for Microsoft Bluetooth Stack Instructions
26
Installing Codexml Router Bluetooth Edition for Windows
28
Targeting and Reading Techniques
29
Imager Field Selection and Resolution
30
Decode Zone
30
Chapter 2 - Optimization and Trigger Programming
31
Introduction
32
Global Trigger Optimization Matrix
33
Left Trigger Optimization Matrix
33
Left Trigger Programming
34
Right Trigger Optimization Matrix
34
Right Trigger Programming
34
Handle Optimization Matrix
35
Handle Trigger Programming
35
Continuous Trigger Optimization Matrix
36
Continuous Scan
36
Continuous Scan Settings
37
Continuous Scan - Sleep Time out
37
Continuous Scan - Trigger Delays
37
Continuous Scan - Duplicate Scan Suppression
37
Motion Detection Scan Settings
37
Chapter 3 - CR2500 Programming: Symbology Settings
38
Aztec Symbology
39
Codabar Symbology
39
Codablock F Symbology
39
Code 11 Symbology
39
Code 39 Symbology
40
Code 93 Symbology
40
Code 128 Symbology
40
Composite Symbologies
41
Data Matrix Symbology
41
Gocode Symbology
41
Interleaved 2 of 5 Symbology
42
Maxicode Symbology
42
Matrix 2 of 5 Symbology
42
Micro PDF417 Symbology
42
MSI Plessy Symbology
43
NEC 2 of 5 Symbology
43
Optical Character Recognition (OCR)
43
PDF 417 Symbology
43
Pharmacode
44
Postal Symbologies
44
QR Code Symbology
44
GS1 Data Bar (Formerly RSS) Symbology
45
Telepen Symbology
45
Upc/Ean/Jan
45
Chapter 4 - Reader Feedback and Special Settings
46
Volume and Vibration Settings
47
Code Readability Index
47
Backlight Intensity Settings
48
Backlight Timeout Settings
48
Targeting Settings
48
Reader Power off Settings
48
Reader ID and Firmware Version
49
Reader Settings Lock
49
Lock-Out Link Mode
49
Chapter 5 - Advanced Decode Performance
50
Set Targeting Zone Tolerances
51
Windowing
52
Mirror Decoding
53
Anti-Glare
53
Chapter 6 - Adding a Prefi X or Suffi X and Reader Text Commands
54
Prefi X Settings
55
Suffi X Settings
55
Erase Prefi X and Suffi X Settings
56
Reader Text Commands
56
Chapter 7 - CR2500: Maintenance and Troubleshooting
57
Reset Reader to Factory Defaults
58
General Safety Information
58
Warranty
59
CR2500 Accessories
60
Frequently Asked Questions
60
CR2500 Maintenance
60
