Save Settings
1.7.3 - PS/2 Cable Installation Guide
1. Power off the computer. If you disconnect the computer’s keyboard while it is powered on, your computer will lock up.
2. Attach the the PS/2 cable to the CR2500.
3. If you have a cabled keyboard, detach the keyboard cable from the computer and connect that same connector to the
female connection on the CR2500 PS/2 cable (Figure 1.17).
4. Now connect the male CR2500 PS/2 connector into the keyboard port on the computer (Figure 1.18).
5. Power on the computer. The CR2500 is powered by the PS/2 port and does not require a power supply.
6. Once properly connected, the CR2500 will power on and beep.
Code does not guarantee compatibility
with all models of computers.

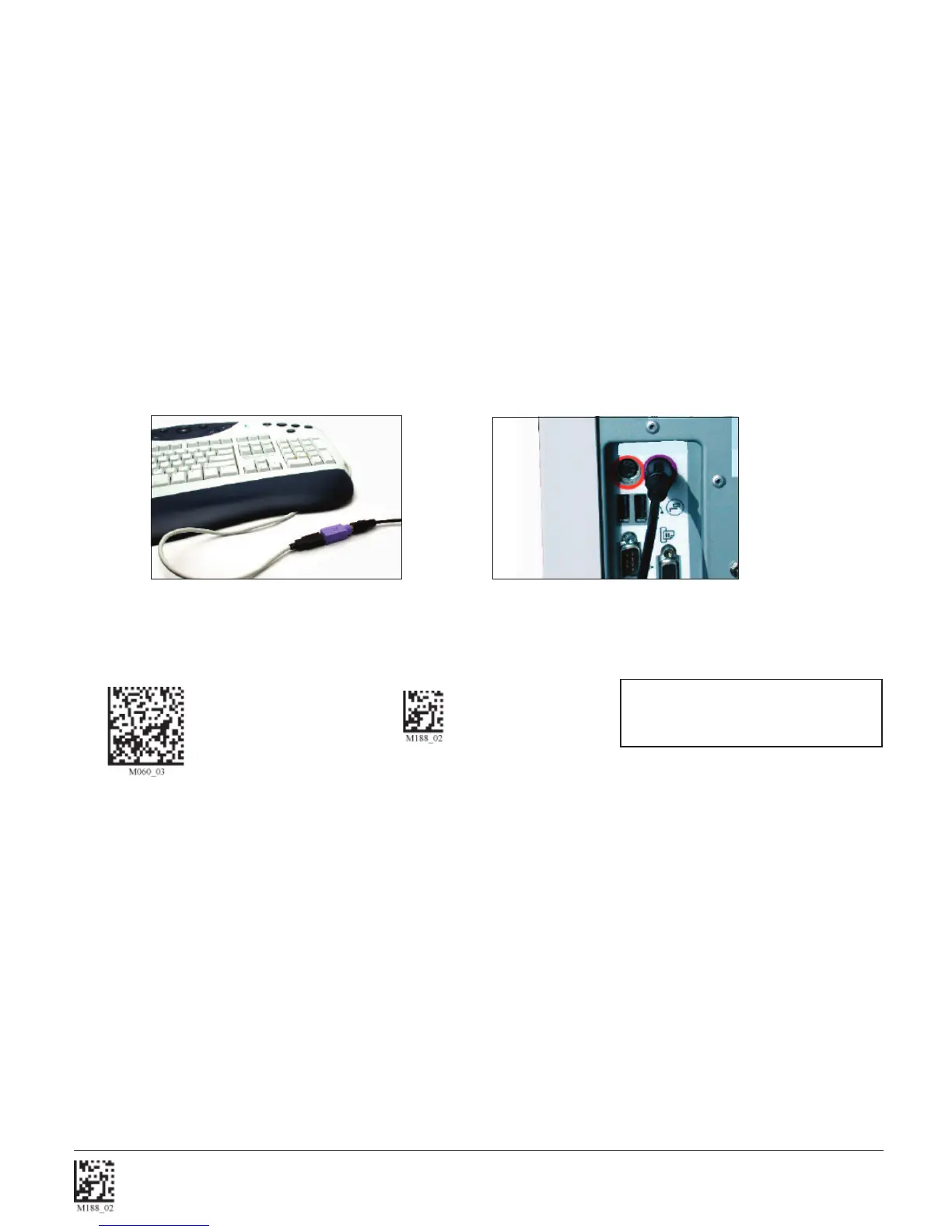

Figure 1.17
Figure 1.18
Save Settings
PS/2 Factory Reset
