Reader Layout

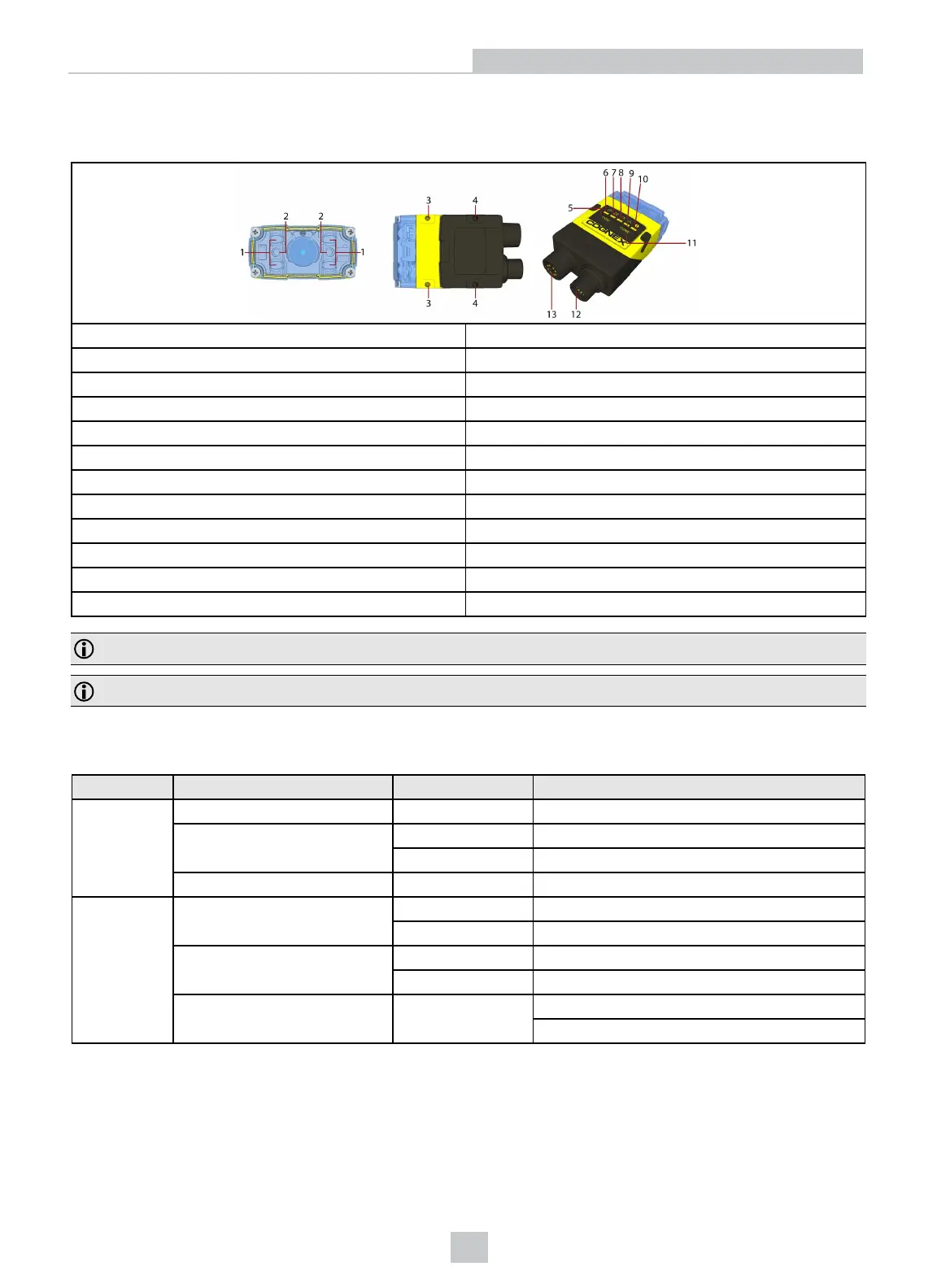

The following images shows the built-in lighting system and other features of the DataMan 260.
1 Illumination LEDs
2 LED aimers
3-4*
Mounting holes
(M3 x 3.5mm)
5
Trigger button
6
Power indicator
7 Train status/
Trigger status indicator
8 Good/bad read indicator
9 Network status indicator
10
Error indicator
11
Tune button
12
Power, I/O and RS-232 connector
13
Ethernet connector
Note: *Use only one set of mounting holes (either 3 OR 4) for mounting.
Note: The five status LEDs together also function as a peak meter using an orange light.
Indicator LEDs
Type Signal Color Meaning
Status Power GREEN Power ON
Train status GREEN Trained
YELLOW Untrained
Error RED Error
- check device log
Action
Good/bad read
GREEN
Good read
RED
Bad read
Network YELLOW Link up
blink
Data transfer
Peak meter Yellow Tune
Focus
13
Getting Started
