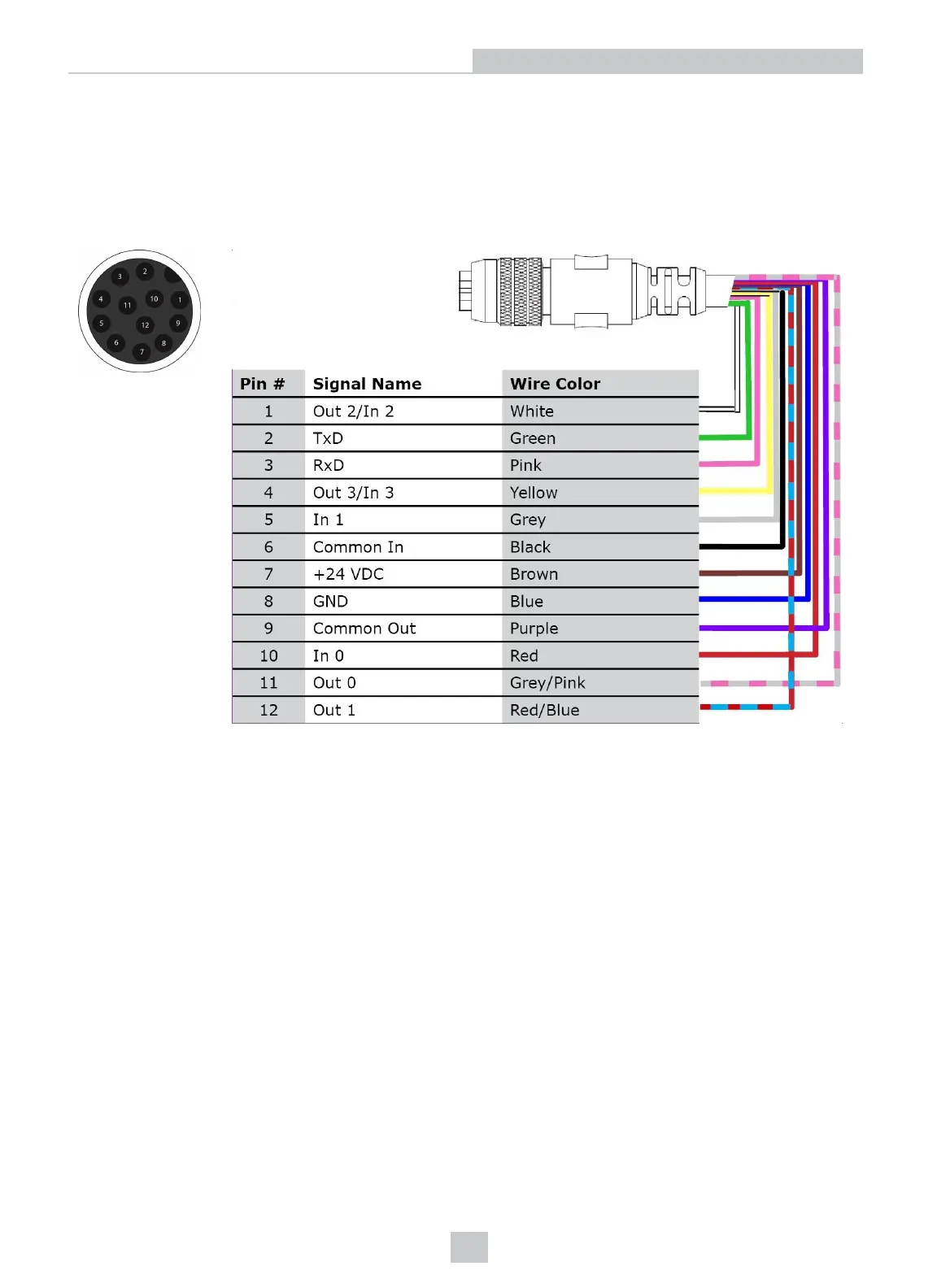

5m I/O Breakout Cable (CCB-M12x12Fy-xx)
The I/O cable provides access to trigger and high-speed outputs. Unused wires can be clipped short or tied back using a
tie made of non-conductive material.
For RS-232, use the Power Supply return path for ground.
The drawing on the left shows the plug on the device.
38
Setting Up Your DataMan 260
