Communication Modules
The DataMan 260 is available with the following communication options:
l 24 VDC Ethernet Model
l PoE (Power over Ethernet) Ethernet Model
Ethernet Interfaces
The DataMan 260 readers provide the following interface modules:
l 24 VDC Ethernet Model/ RS-232: This module has Ethernet and RS-232 interfaces and requires 24V external
power (Non-PoE).
l PoE Ethernet Model/ RS-232: This module has Ethernet and RS-232 interfaces and supports Power over
Ethernet.
Note: Connectors without a cable should be covered by a protective cap to meet the IP requirements.

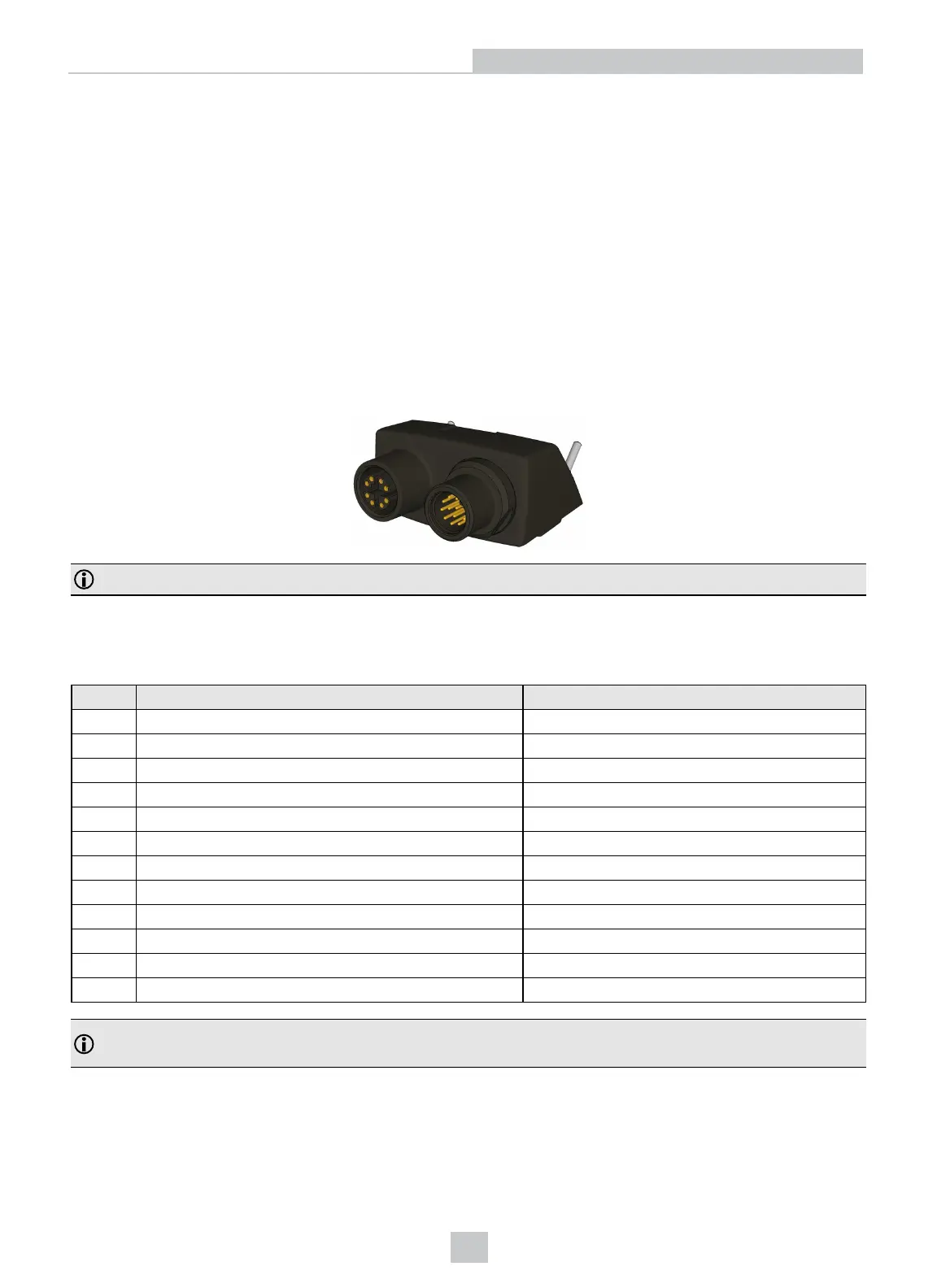

This I/O module has an M12x8 X-coded connector for the Ethernet signals and a (male) M12x12 connector for power, I/O
and RS-232.
The signals on the M12x12 connector are the following:
PIN Signal: 24 VDC Ethernet Model Signal: PoE Ethernet Model
1 OUT_2 OUT_2
2 TXD TXD
3 RXD RXD
4 OUT_3 OUT_3
5 IN_1 IN_1
6 IN_COM IN_COM
7 +24V VIN N.C.
8 GND RS232GND
9 OUT_COM OUT_COM
10 IN_0 IN_0
11 OUT_0 OUT_0
12 OUT_1 OUT_1
Note: When angled cables are mounted, all of them point downwards or, in the case of the 90° configuration,
backwards.
