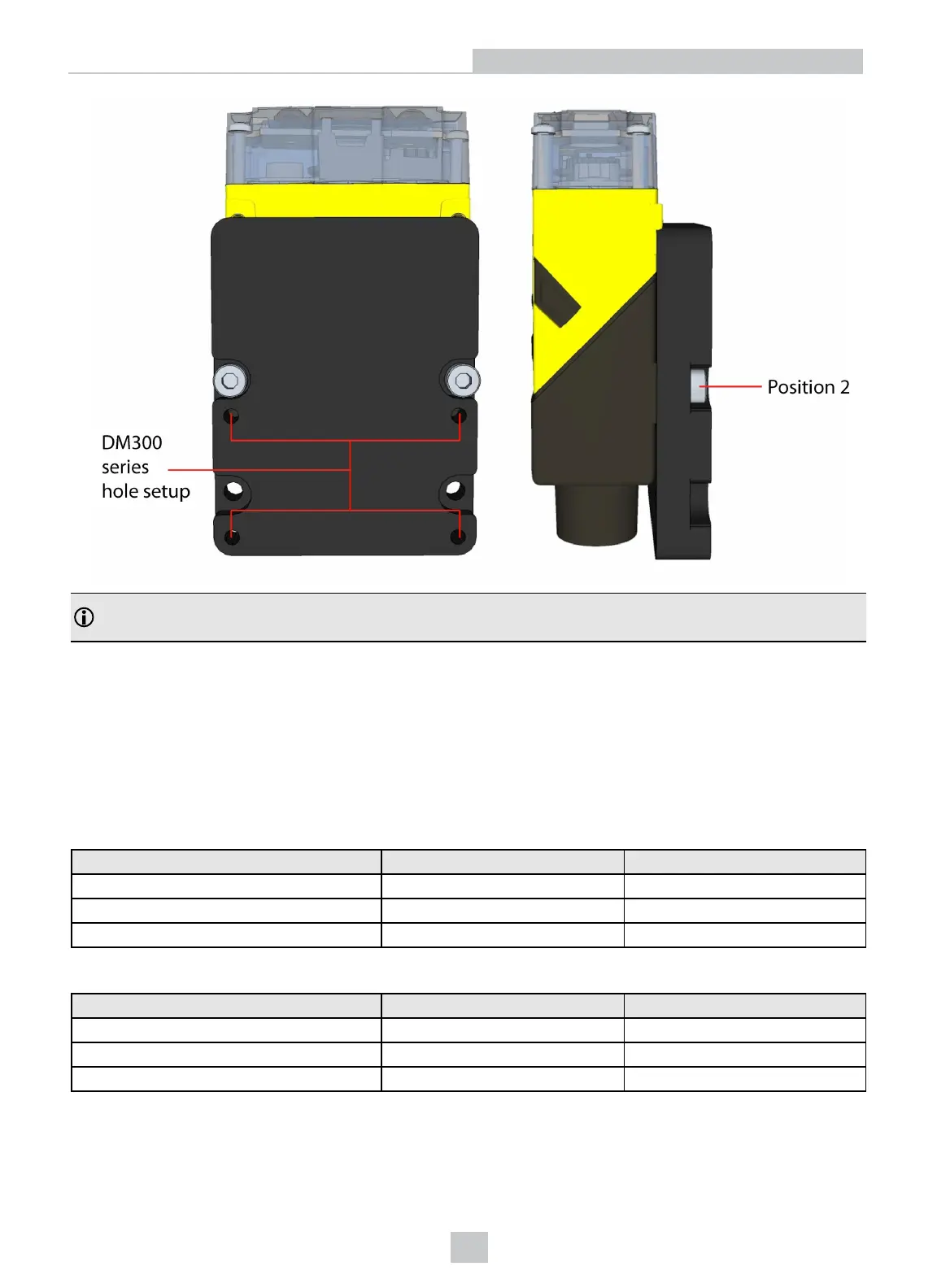

Note: The adapter plate must always be connected to the mounting holes of the DataMan 262 IO module. The
threaded holes in the adapter plate are matching with the DataMan 300 series mounting holes.
Field of View and Reading Distances
DataMan 260 Readers with a 6.2 mm Lens
Short Range (Focused to 105 mm)
The following tables show the Field of View (FoV) widths of the 6.2 mm lens focused to 105 mm at various distances.
DM260
Distances in mm 2D min. code 1D min. code
40 4 MIL 2 MIL
65 5 MIL 3 MIL
105 10 MIL 6 MIL
DM262
Distances in mm 2D min. code 1D min. code
40
3 MIL
2 MIL
65
4 MIL 2 MIL
105
7 MIL 5 MIL
The following map shows the FoV of the DataMan 260 series readers with a 6.2 mm lens. The horizontal and vertical
field of view is shown for working distances of 40 mm, 65 mm and 105 mm.
32
Setting Up Your DataMan 260
