Ethernet Cables
The Ethernet cable (CCB-84901-2001-05) provides Ethernet connection for network communications. The Ethernet
cable can be connected to a single device or provide connections to multiple devices via a network switch or router.

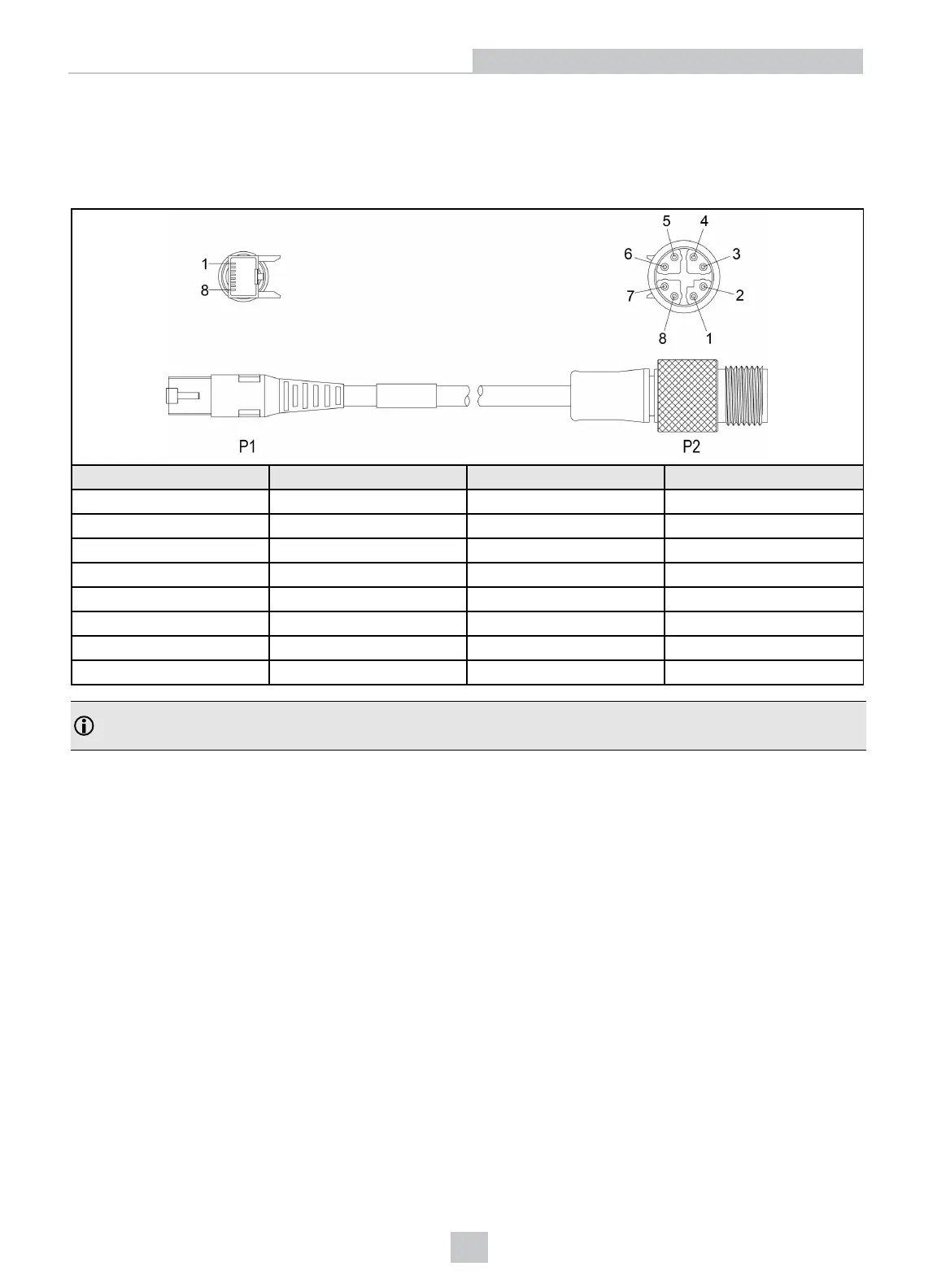

X-coded to RJ45 Cable
P1 Pin Number Wire Color Signal Name P2 Pin Number
1 White/Orange TxRx A + 1
2 Orange TxRx A - 2
3 White/Green TxRx B + 3
4 Blue TxRx C + 8
5 White/Blue TxRx C - 7
6 Green TxRx B - 4
7 White/Brown TxRx D + 5
8 Brown TxRx D - 6
Note: Cables are sold separately. The wiring for this cable follows standard industrial Ethernet M12 specifications.
This differs from the 568B standard.
43
Setting Up Your DataMan 260
