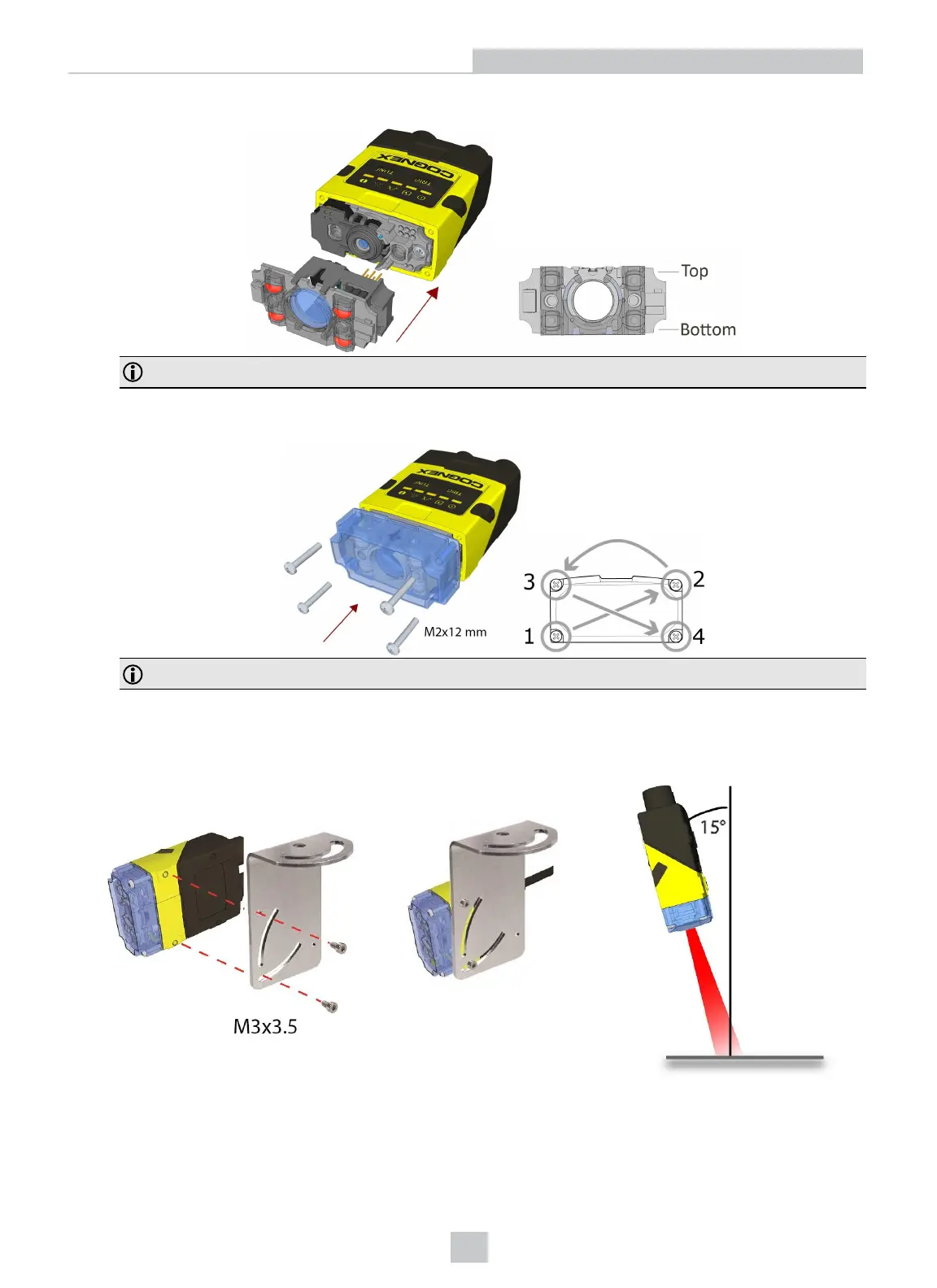

3. Attach a new color illumination module.
Note: Take care to attach the illumination with the right orientation.
4. Attach the front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a torque
wrench.
Note: The rib in the front cover must be oriented to the top side.
Mounting
Mounting the DataMan 260 at a slight angle (15°) can reduce reflections and improve reader performance.
29
Setting Up Your DataMan 260
