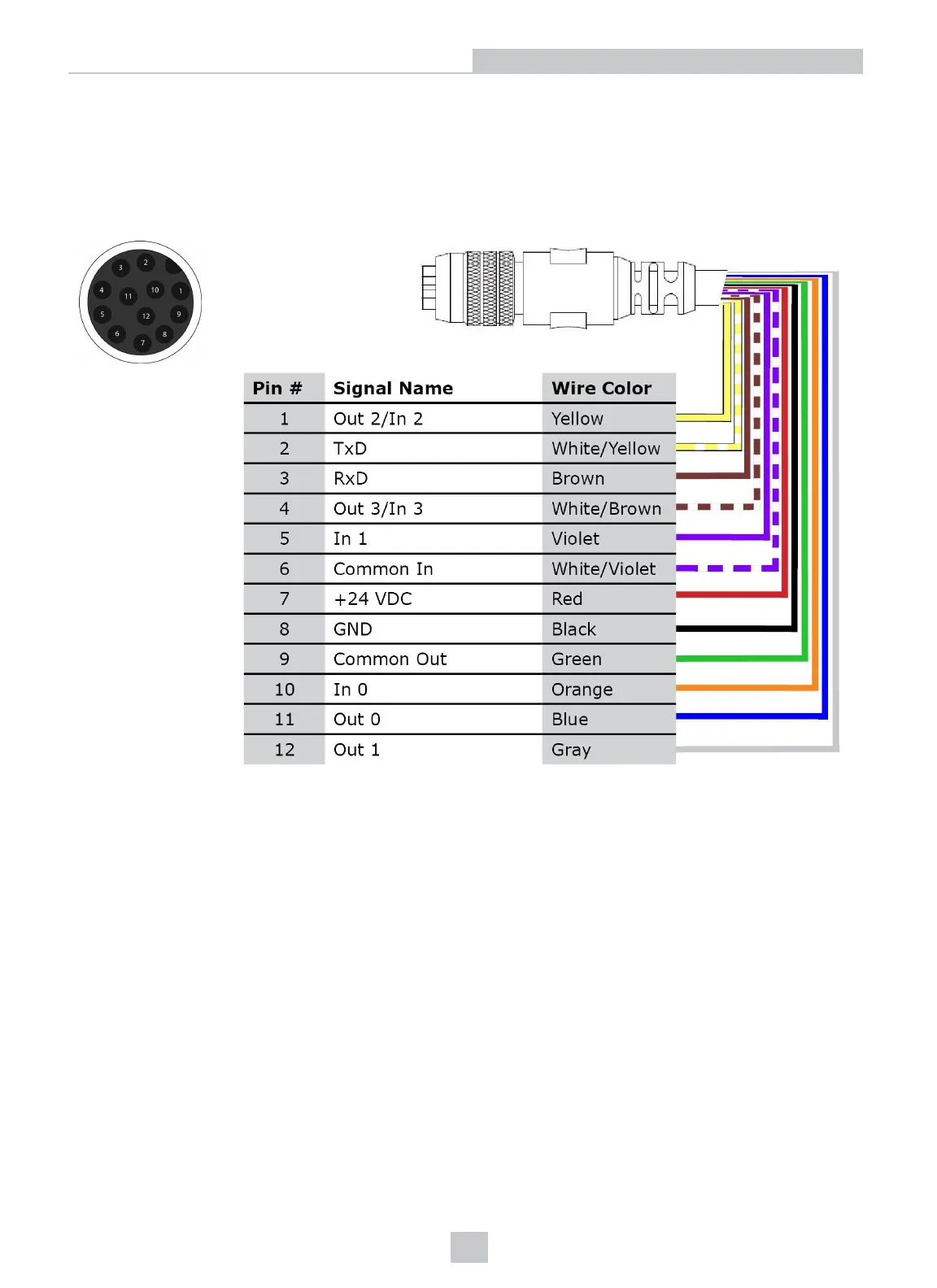

15m I/O Breakout Cable (CCB-PWRIO-15)
The I/O cable provides access to trigger and high-speed outputs. The cable is not terminated. Unused wires can be
clipped short or tied back using a tie made of non-conductive material. For RS-232, use the Power Supply return path for
ground.
The drawing on the left shows the plug on the device.
Acquisition Triggering
The acquisition trigger input on the reader is opto-isolated.
To trigger from an NPN (pull-down) type photo-detector or PLC output, connect In 0 to +24VDC and connect Common In
to the output of the detector. When the output turns on, it pulls Common In down to 0VDC, turning the opto-coupler on.
To trigger from a PNP (pull-up) type photo-detector or PLC output, connect In 0 to the output of the detector and connect
Common In to 0VDC. When the output turns on, it pulls In 0 up to 24VDC, turning the opto-coupler on.
39
Setting Up Your DataMan 260
