Changing a 6.2 mm Lens to a 16 mm Lens
Perform the following steps to change a 6.2 mm lens to a 16 mm lens on your DataMan 260 reader.
Note: Disconnect the DataMan 260 reader from power before changing lenses.
WARNING: This modification must be made in a dust-free and ESD safe area.

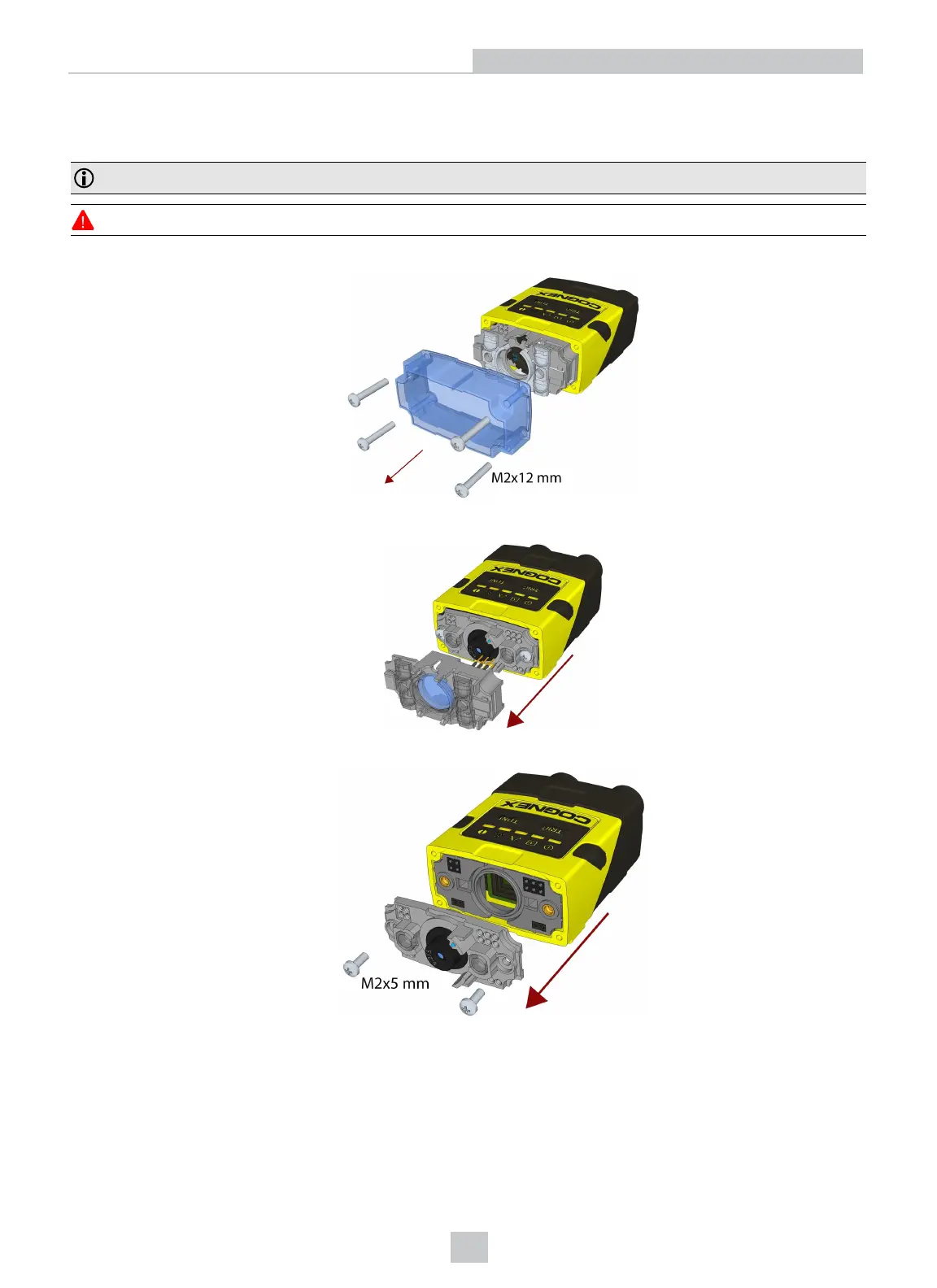

1. Remove the front cover: unscrew the four M2x12mm Phillips Pan head screws and take off the LEDcover.
2. Remove the illumination module.
3. Unscrew the two M2x5mm Phillips head screws and remove the 6.2 mm lens mount.
