Connections, Optics and Lighting
Descriptions about the I/O Cables, RS-232 cable, Ethernet cable, and high-speed output lines and wiring are provided in
the following sections.

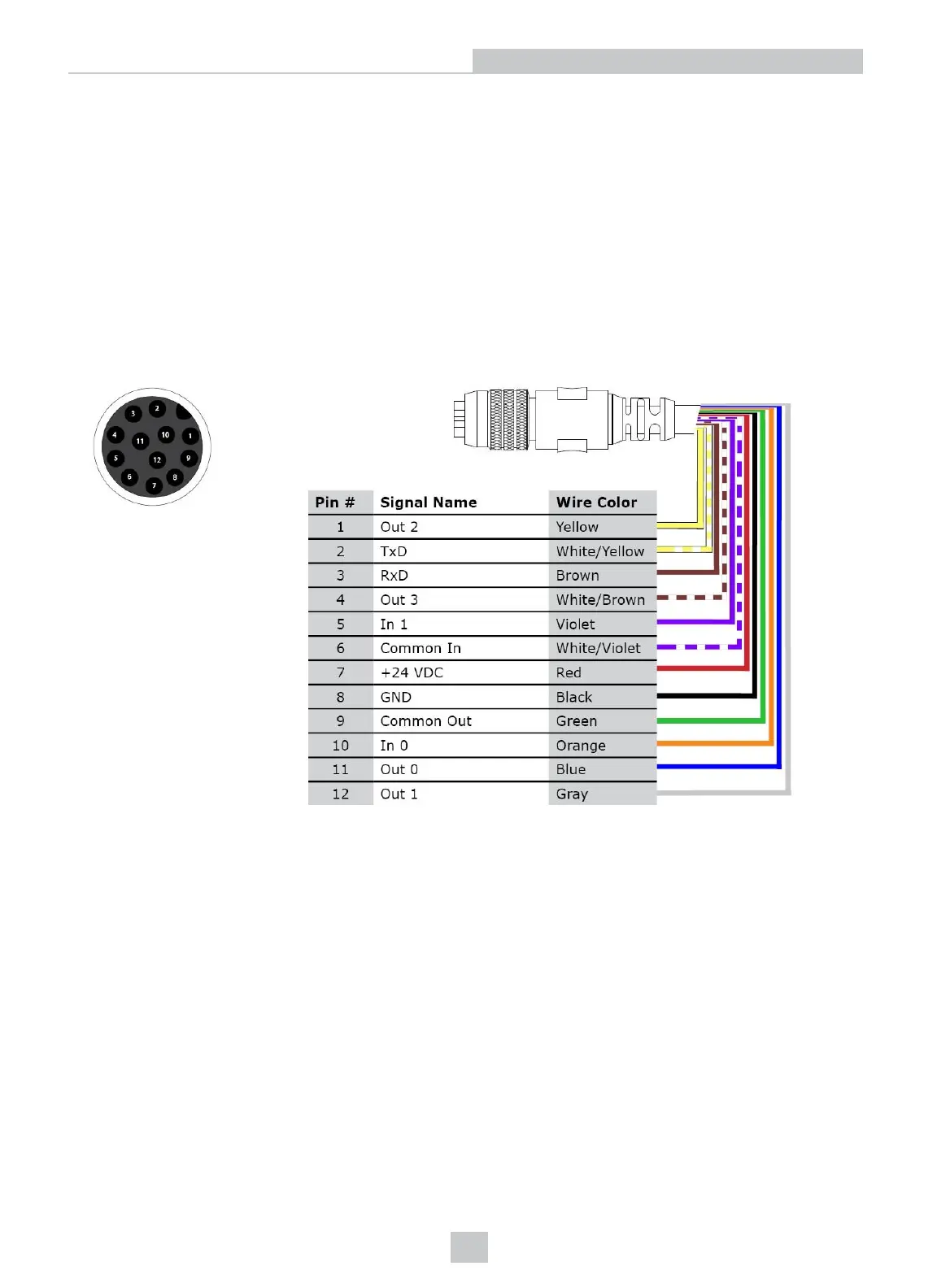

5m I/O Breakout Cable (CCBL-05-01)
The I/O cable provides access to trigger and high-speed outputs. Unused wires can be clipped short or tied back using a
tie made of non-conductive material.
For RS-232, use the Power Supply return path for ground.
The drawing on the left shows the plug on the device.
Signal: 24 VDC Ethernet Model
36
Setting Up Your DataMan 260
