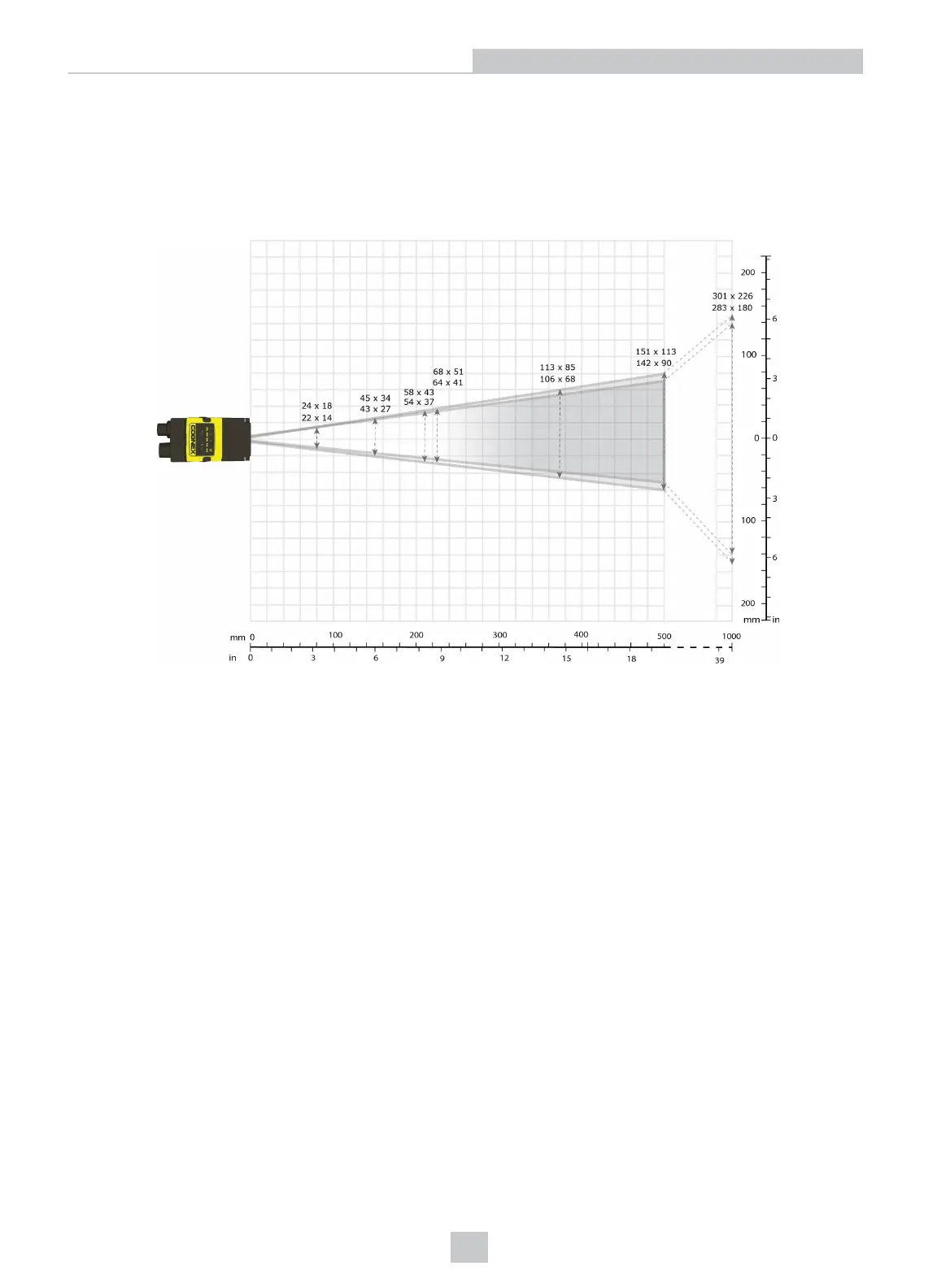

The following map shows the FoV of the DataMan 260 readers with a 16 mm lens. The horizontal and vertical field of
view is shown for working distances of 80 mm, 150 mm, 190 mm, 225 mm, 375 mm, 500 mm and 1000 mm.
The FoV values are shown as follows:
l outer: DM262
l inner: DM260
35
Setting Up Your DataMan 260
