The FoV values are shown as follows:
l outer: DM262
l inner: DM260
Long Range (Focused to 190 mm)
The following tables show the FoV widths of the 6.2 mm lens focused to 190 mm at various distances.
DM260
Distances in mm 2D min. code 1D min. code
150 12 MIL 6 MIL
190 15 MIL 10 MIL
225 18 MIL 10 MIL
375 30 MIL 15 MIL
500 35 MIL 20 MIL
1 m - 35 MIL
DM262
Distances in mm 2D min. code 1D min. code
150 12 MIL 5 MIL
190 10 MIL 6 MIL
225 15 MIL 6 MIL
375 20 MIL 10 MIL
500 25 MIL 15 MIL
1 m - 30 MIL

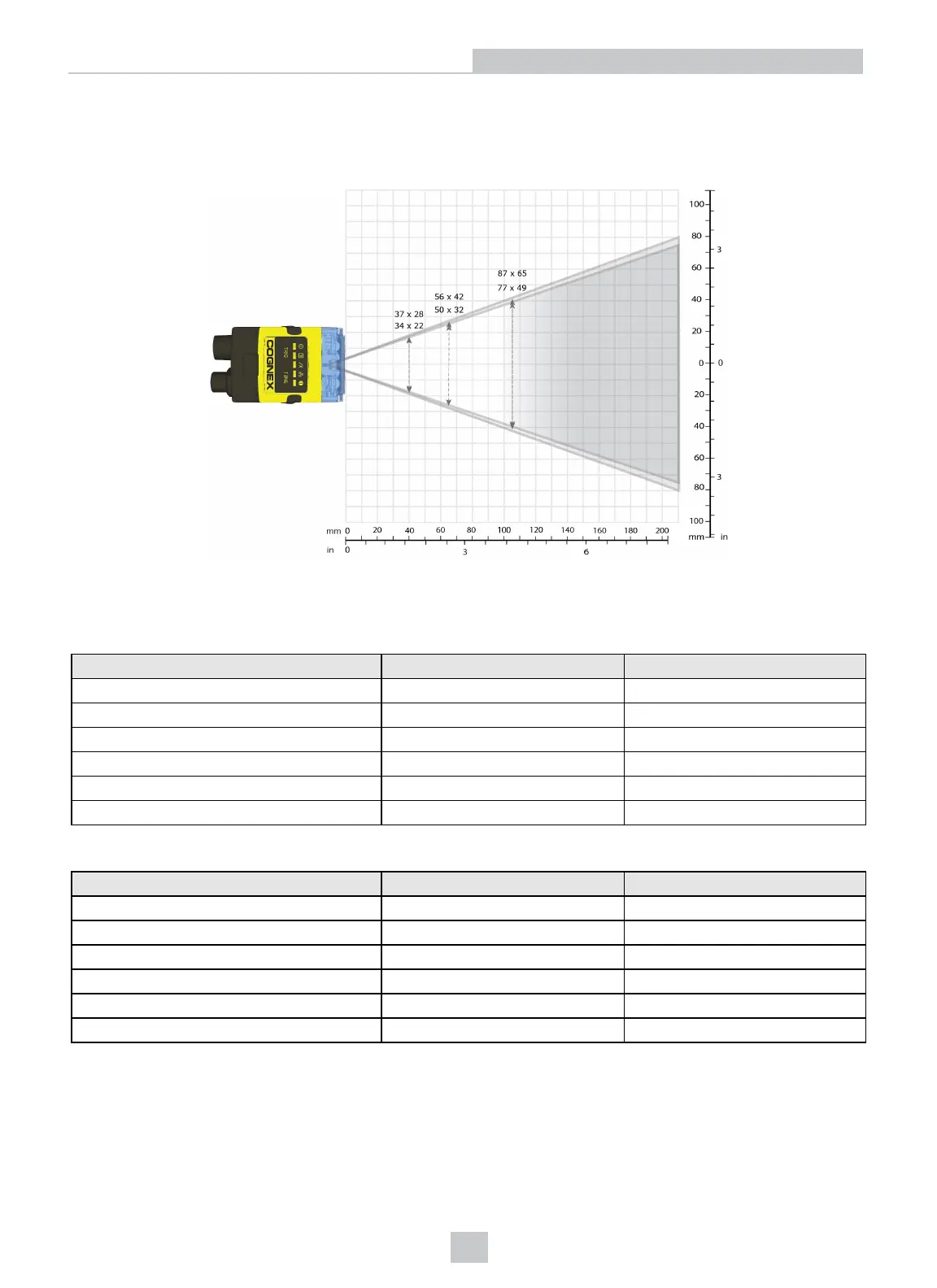

The following map shows the FoV of the DataMan 260 series readers with a 6.2 mm lens. The horizontal and vertical
field of view is shown for working distances of 150 mm, 190 mm, 225 mm, 375 mm and 500 mm.
The FoV values are shown as follows:
33
Setting Up Your DataMan 260
