3. Push the top side of the filter firmly until it is sitting flat against the PCB.
Note: Use finger to push the filter in and then a q-tip to clean the filter, or use a q-tip to push the filter into
place.

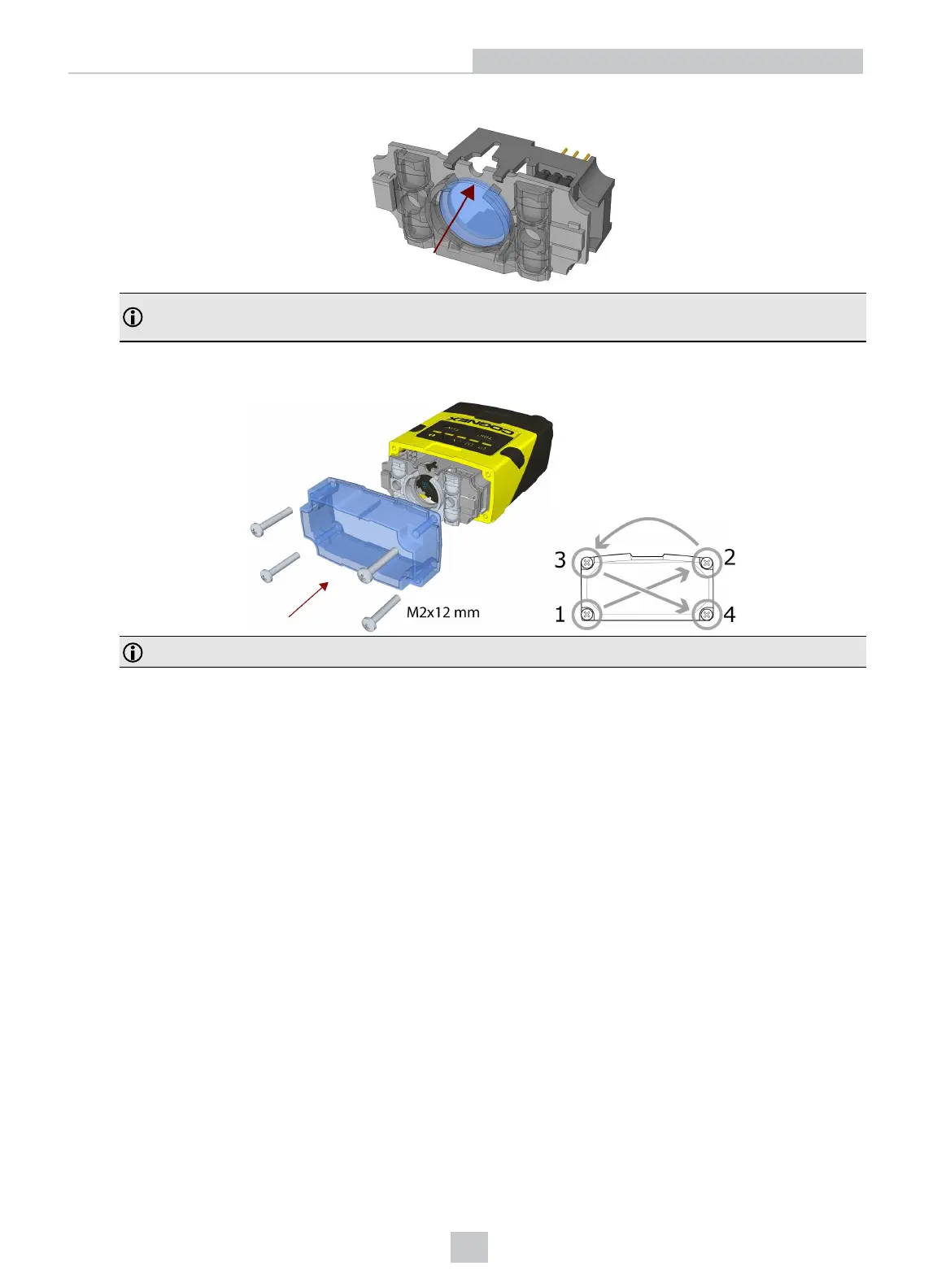

4. Attach the front cover. Observing the tightening sequence below, tighten all four M2x12mm Phillips Pan head
screws to 9 Ncm using a torque wrench.
Note: The rib in the front cover must be oriented to the top side.
22
Setting Up Your DataMan 260
