Cognex DataMan 262 - Page 25

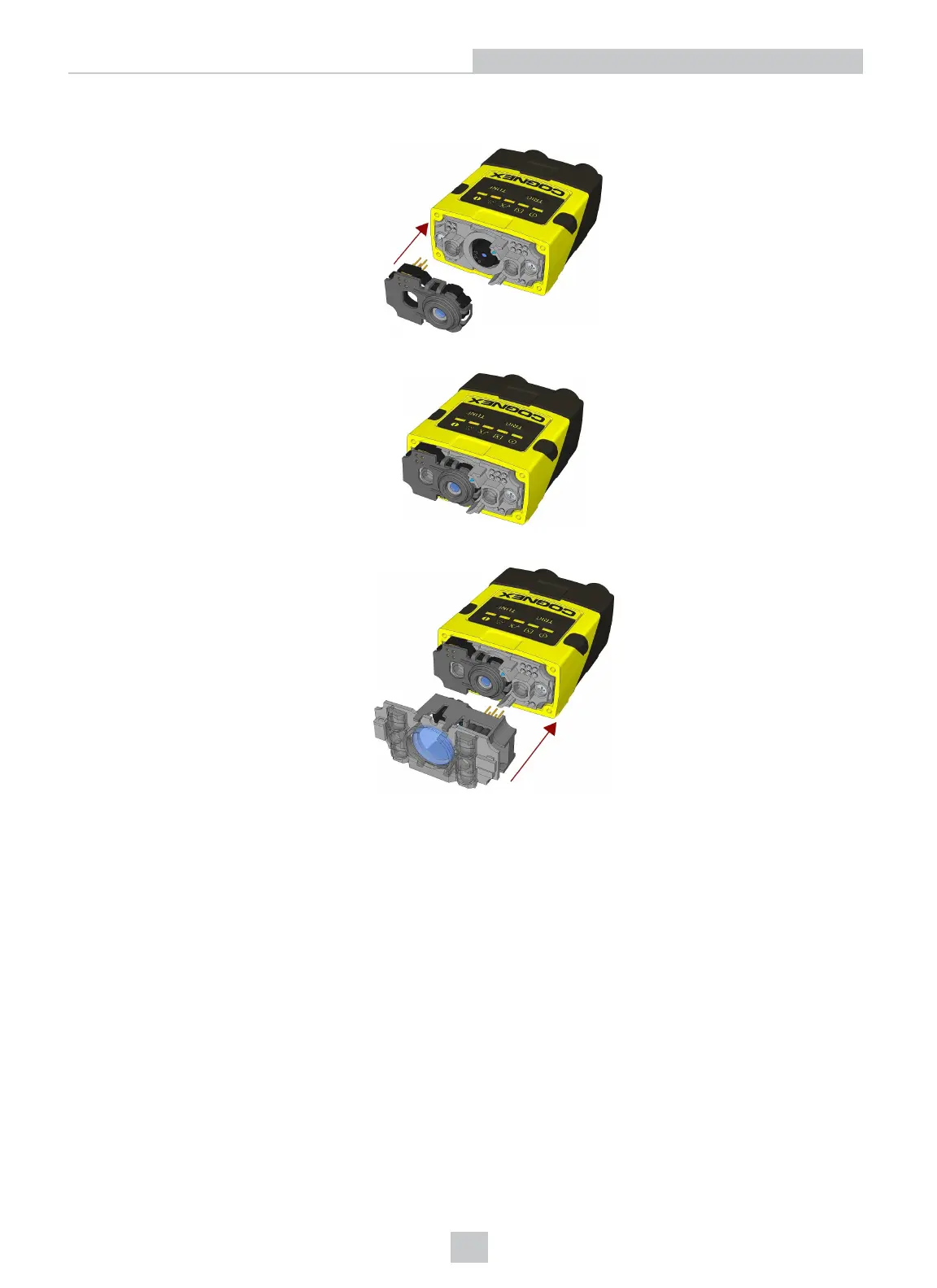

5. Attach the liquid lens accessory by aligning the 2x2 connectors of the liquid lens with the 2x2 sockets on the
optics mount.
6. Press the liquid lens onto the imager lens until you reach the stop.
7. Reattach the illumination.
24
Setting Up Your DataMan 260
