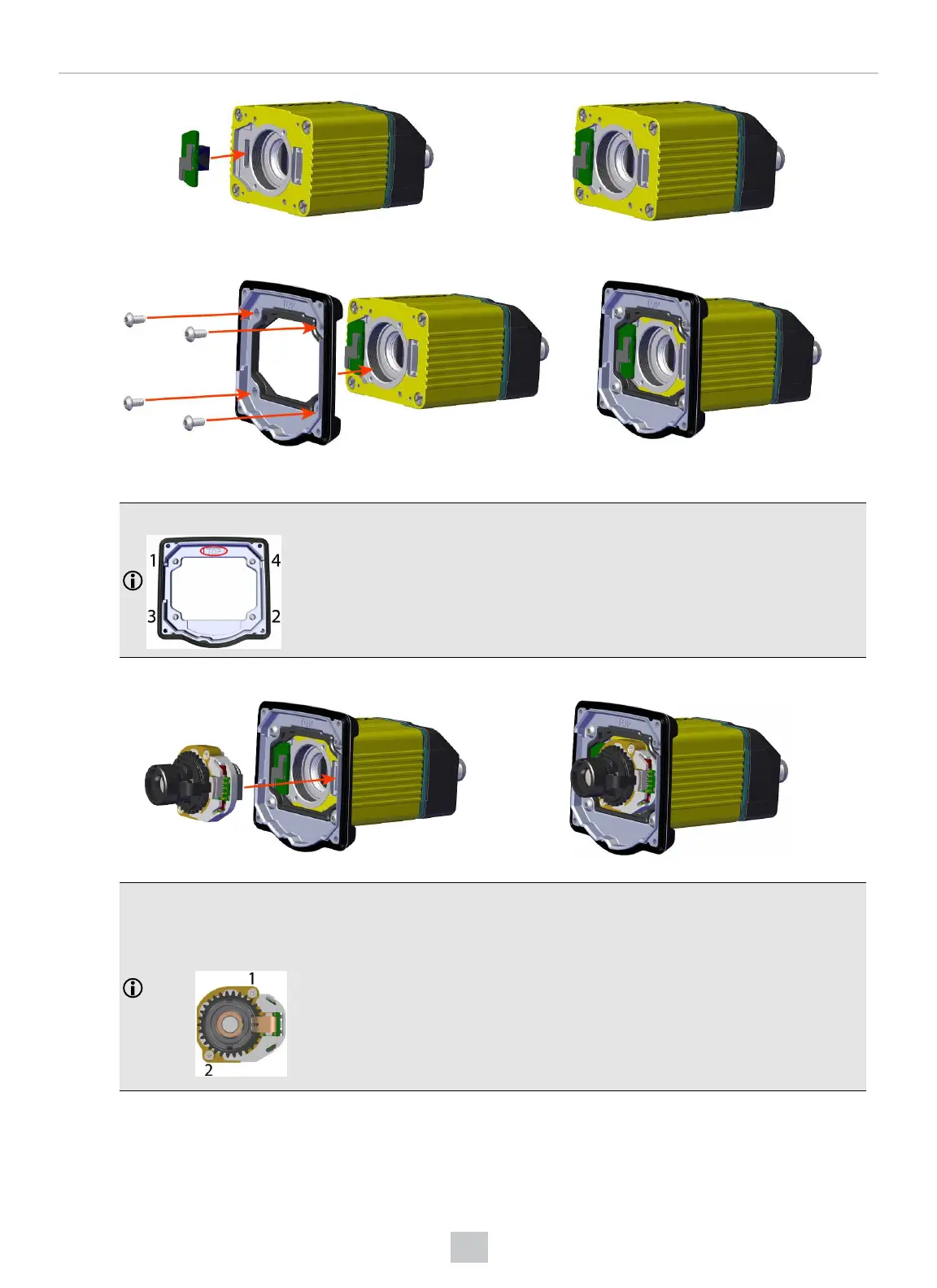

3. Attach the DM470 HPITadapter plate.
M3 x 6 mm screws
Note: Use a 2 mm hex wrench to torque the screws to 0.34 Nm (3 in-lb). Tighten in sequence.
4. Attach the lens module and fix the lens with the captive screws.
Note: Use a Phillips screwdriver (PH0) to torque the screws to 0,08 Nm (0.7 in-lb). Tighten in sequence.
l Do not push or pull the lens at its barrel – push or pull on the metal housing.
l Be careful not to touch the gear ring with the screwdriver.
5. Attach the light module.
65
Mechanical Information
