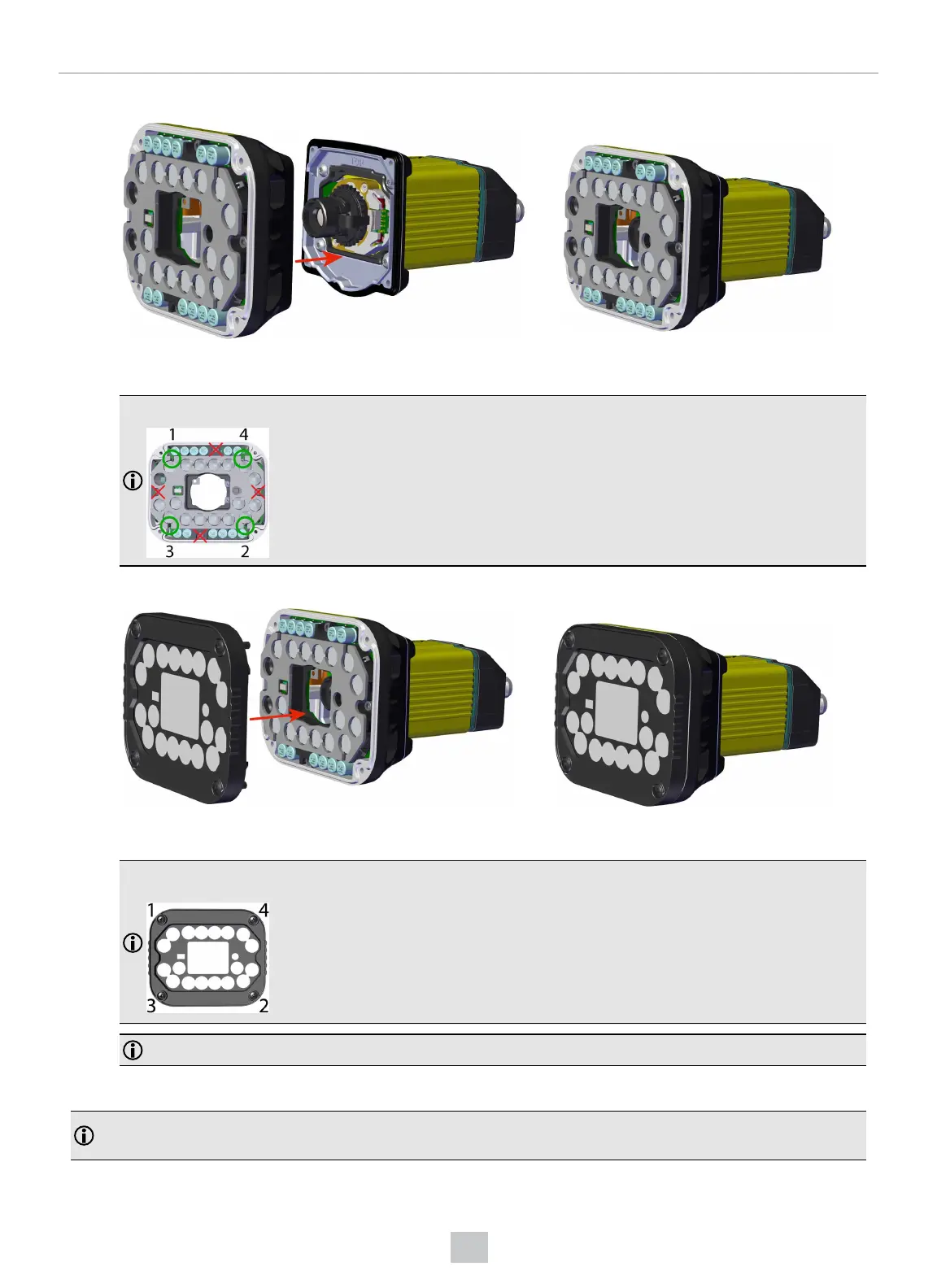

M3 x 6.35 mm captive screws
Note: Use a 2 mm hex wrench to torque the captive screws to 0.34 Nm (3 in-lb). Tighten in sequence.
6. Attach the front cover.
M3 x 12mm captive screws
Note: Use a Phillips Screwdriver (PH0) to torque the captive screws to 0.31 Nm (2.75 in-lb). Tighten in
sequence.
Note: Remove the adhesive protective film from the front cover after attaching it.
Installing a C-Mount Lens
Note: The following steps describe service procedures for both the DataMan 370 and the 470 series readers, but
the images show only the DataMan 370.
