ComAp Inteli Mains NTC BaseBox

Communication Guide, ©ComAp – March 2014 119
IGS-NT Communication Guide 03-2014.pdf

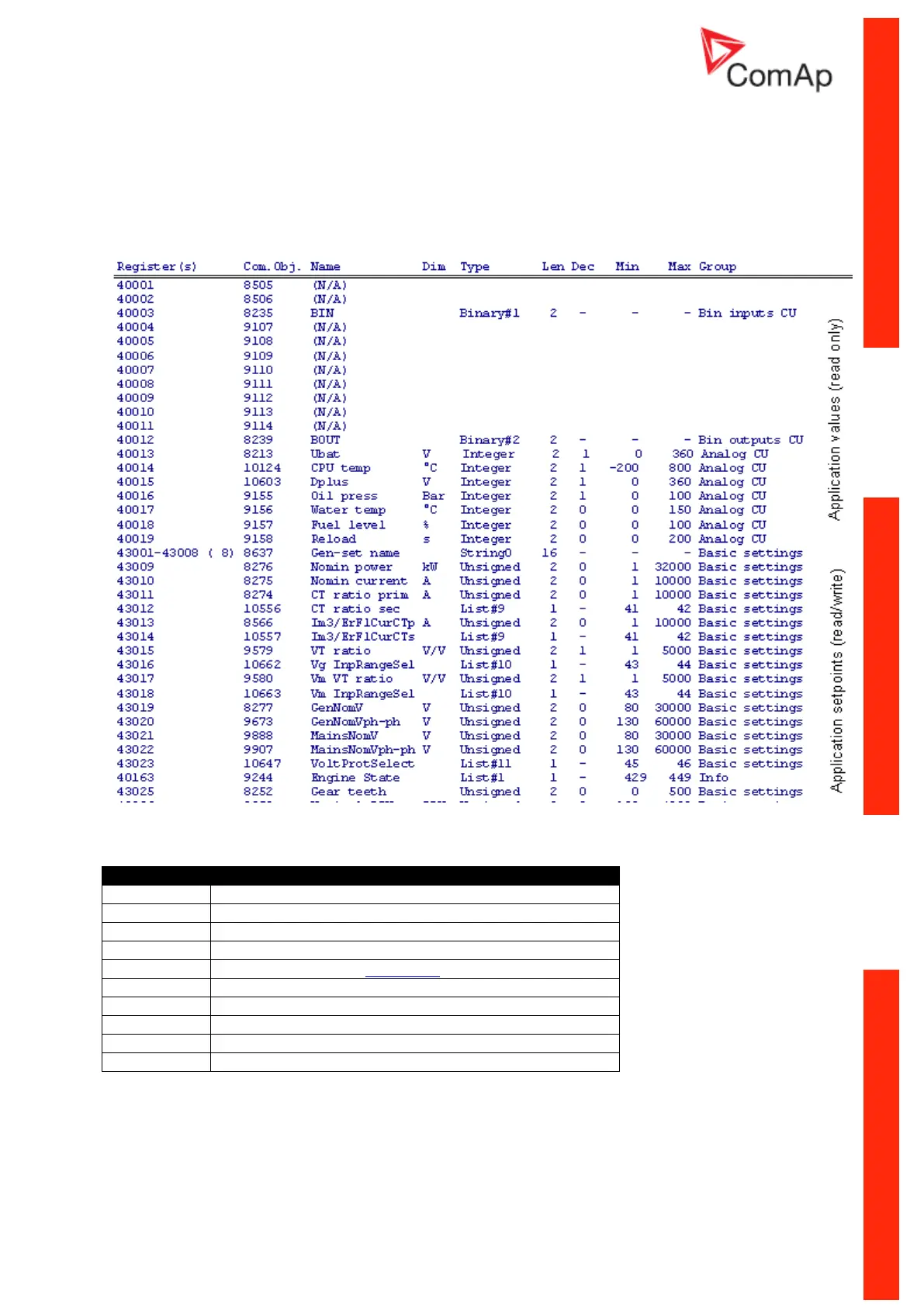

Generate Cfg Image (Comm. Objects …) and
Generate Cfg Image (Modbus Registers all/used).
A part of Cfg Image (Modbus Register …) file
Description of Cfg Image
Header
Descritpion
Registers(s)
Register number; register address = register number – 1
Com.Obj.
Corresponding communication object number
Name
Communication object name
Dim
Value dimension
Type
Value data type (see Data types)
Len
Data length in Bytes (max. 64)
Dec
Number of decimals
Min
Value low limit
Max
Value high limit
Group
Group of setpoints/values
