Ethernet LAN Configuration
These settings are only as an example!
Please notice:
Setting CAN-Addr.1 was interchanged with setting CAN-Addr.2 starting with IBConfig-1.6. It
means that IG-IB’s CAN address has to be set to CAN-Addr.2, if I-LB which is set to the address
ADR1 is connected to the same CAN bus as IG-IB. Use option CAN-Addr.1 if I-LB is set to ADR2.
It is necessary to set IG-IB's CAN address using IBConfig-1.5 in this way: IG-IB’s CAN address has to
be set to CAN-Addr.1, if I-LB which is set to the address ADR1 is connected to the same CAN bus as
IG-IB. Use option CAN-Addr.2 if I-LB is set to ADR2.

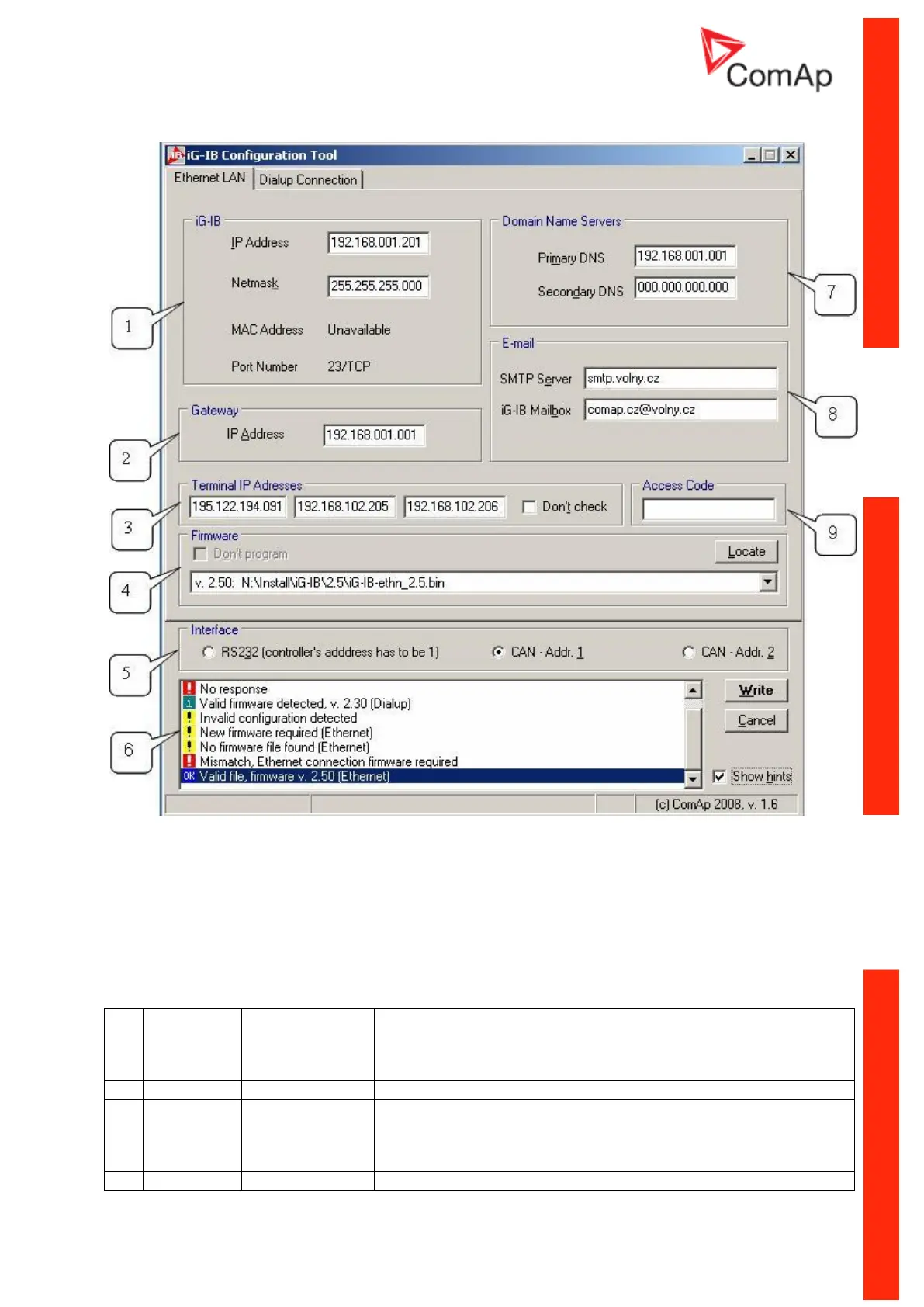

Set following items in IG-IB configuration window.
1
IG-IB
IP Address
Netmask
MAC Address
Port Number
Ask your IT manager
Ask your IT manager
Ask your IT manager
Ask your IT manager
2
Gateway
IP Address
Ask your IT manager
3
Terminal IP
Addresses
Don’t check
Connection will be restricted to these terminal IP addresses, i.e. IG-
IB won’t connect to any other address.
Tick “Don’t check” if you want to allow connection to all terminal IP
addresses.
4
Firmware
Firmware file name (*.bin) is displayed in this window when old iG-
