Setpoint group General Analog Inputs Related FW 2.0.0
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 11409 Related applications MCB, MGCB, BTB
Description
Threshold level for switching the binary output AIN SWITCH 03 (PAGE 484) on. The value is measured from
AIN SWITCH 03 (PAGE 484) analog input.

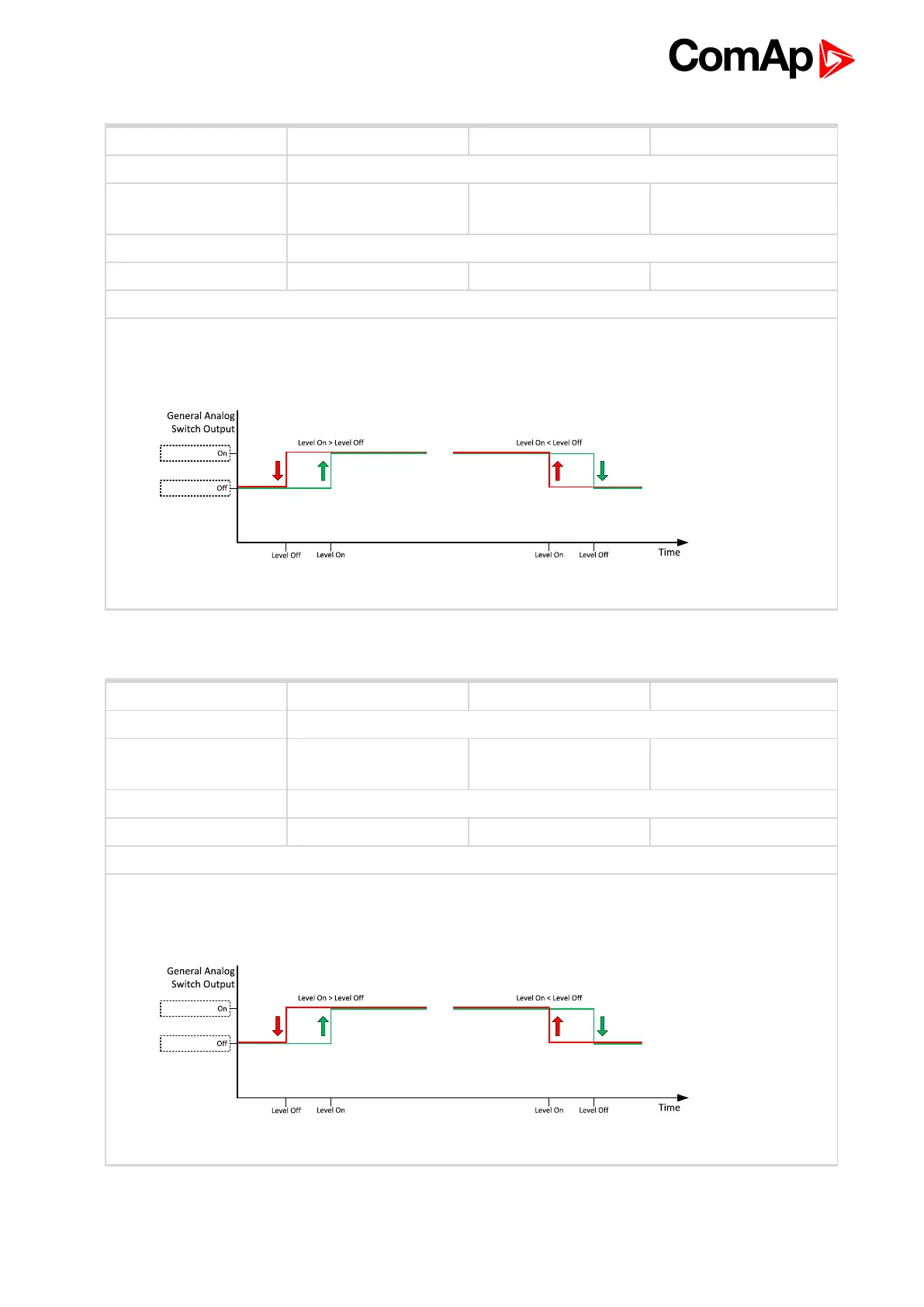

Image 8.6 General analog input 3 switch
Analog Switch 3 On
6 back to List of setpoints
Setpoint group General Analog Inputs Related FW 2.0.0
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 11412 Related applications MCB, MGCB, BTB
Description
Threshold level for switching the binary output AIN SWITCH 03 (PAGE 484) off. The value is measured from
AIN SWITCH 03 (PAGE 484) analog input.
Image 8.7 General analog input 3 switch
Analog Switch 3 Off
6 back to List of setpoints
