ComAp InteliMains 210 BTB User Manual

InteliMains 210 Global Guide
24

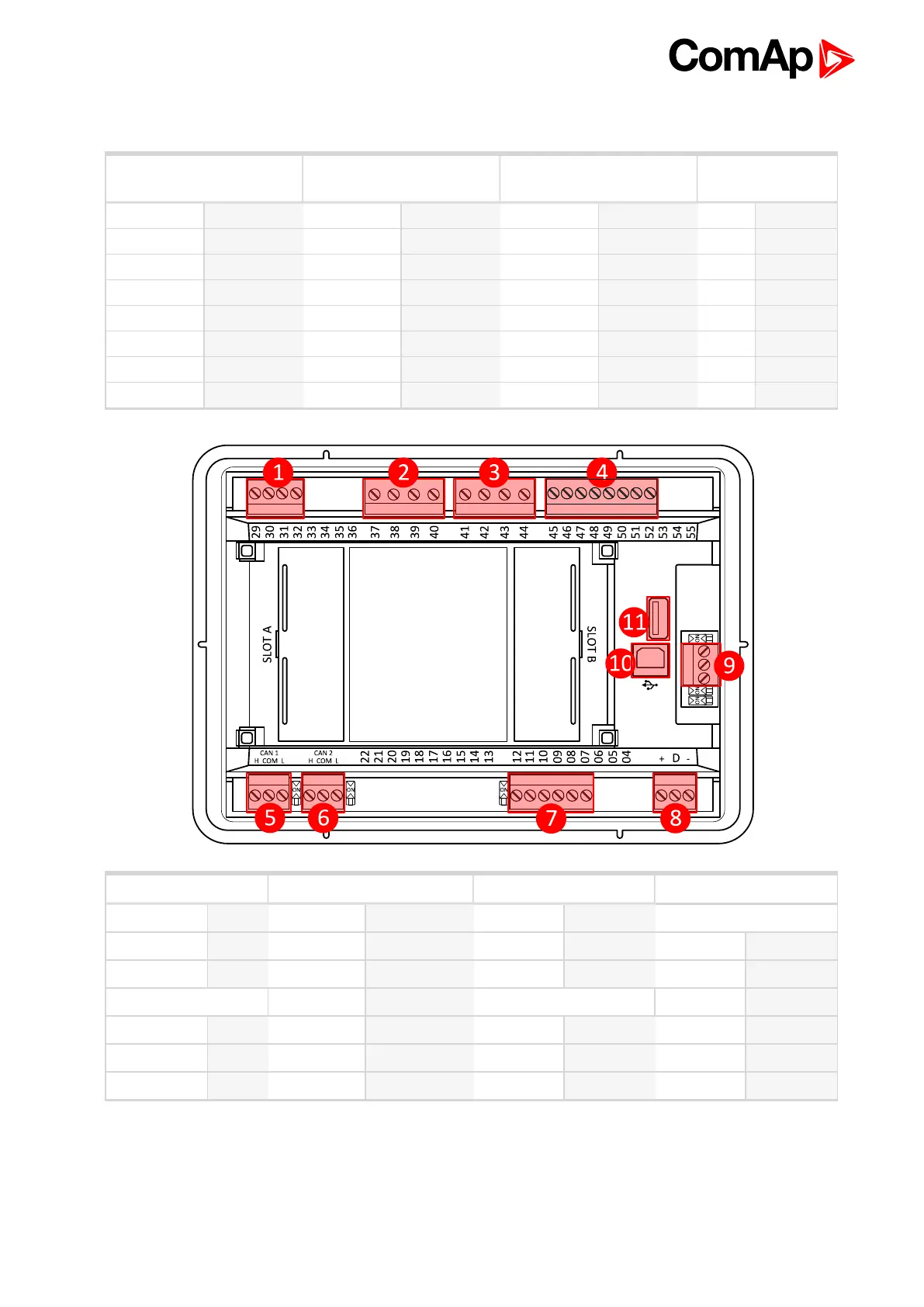

4.3 Terminal Diagram
① CURRENT
MEASUREMENT
② MAINS VOLTAGE ③ BUS VOLTAGE ④ BINARY
INPUTS
T29 COM T37 N T41 N T45 BIN1
T30 L1 T38 L1 T42 L1 T46 BIN2
T31 L2 T39 L2 T43 L2 T47 BIN3
T32 L3 T40 L3 T44 L3 T48 BIN4
T49 BIN5
T50 BIN6
T51 BIN7
T52 BIN8
⑤ CAN1 ⑦ BINARY OUTPUTS ⑧ POWER SUPPLY, D+
⑩ USB
T26 L T07 BOUT1 T01 BATT -
⑪ USB HOST
T27 COM T08 BOUT2 T02 D+
T28 H T09 BOUT3 T03 BATT +
⑥ CAN2 T10 BOUT4 ⑨ RS485
T23 L T11 BOUT5 T56 B
T24 COM T12 BOUT6 T57 COM
T25 H T58 A
