ComAp InteliMains 210 BTB - Binary Inputs

InteliMains 210 Global Guide
33

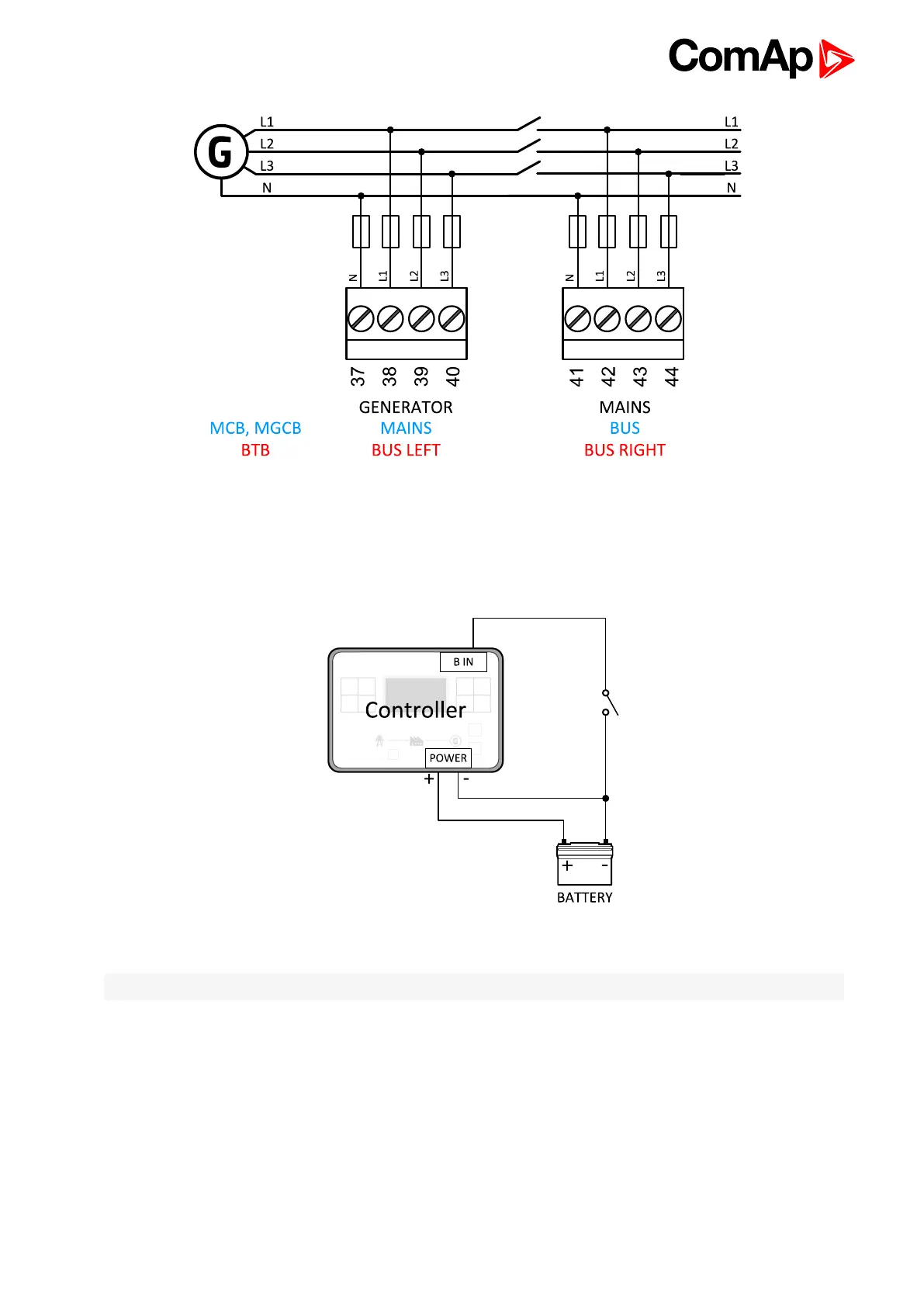

Image 4.8 Voltage measurement on InteliGen 200 Hardware
4.4.5 Binary inputs
Use minimally 1 mm
2
cables for wiring of Binary inputs.
Image 4.9 Wiring binary inputs
Note: The name and function or alarm type for each binary input have to be assigned during the configuration.
