InteliMains 210 Global Guide
32
ConnectionType: Split Phase

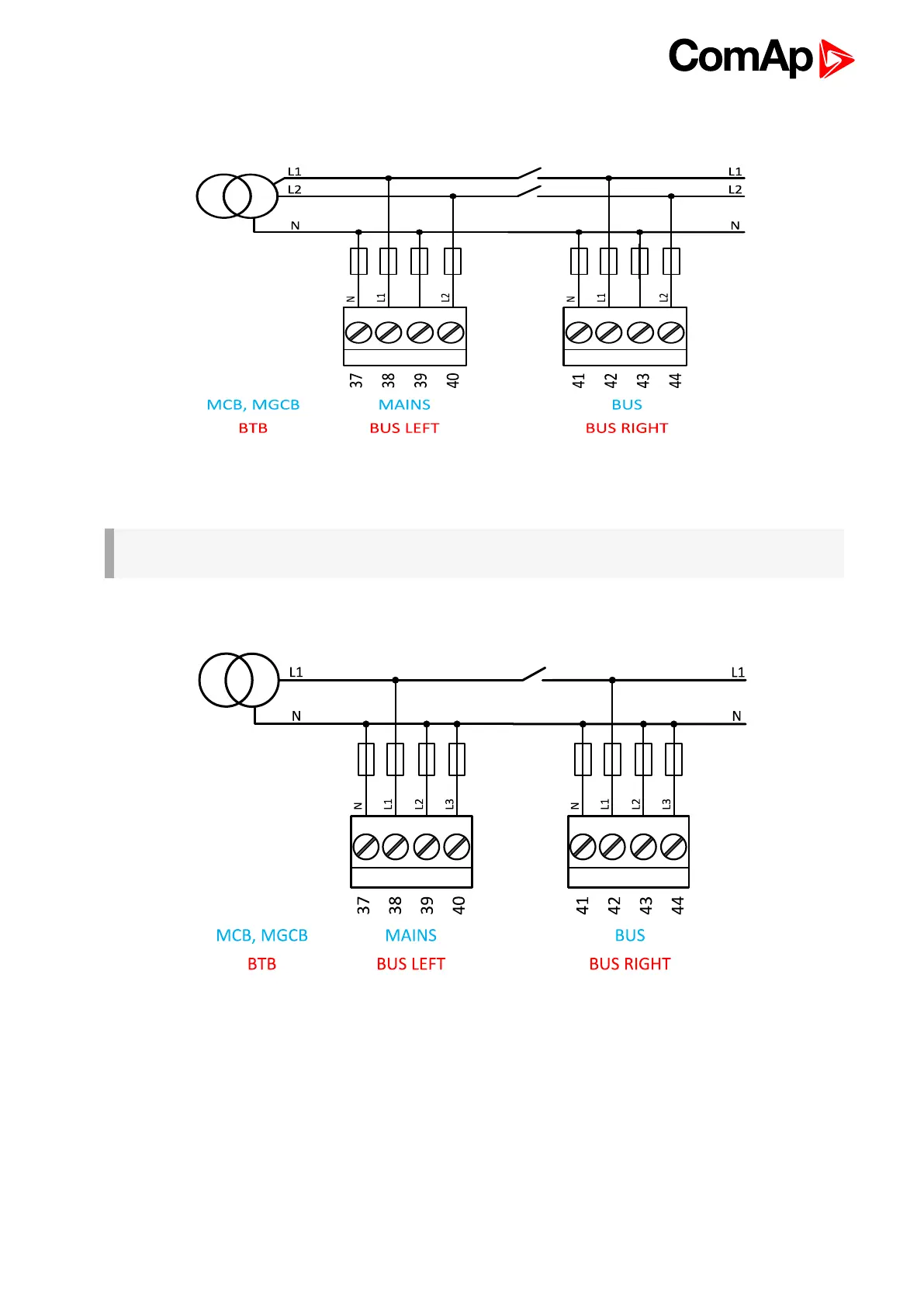

Image 4.6 Split phase application
IMPORTANT: The second phase of split phase connection is connected to the terminal, where is
normaly connected the third phase.
ConnectionType: Mono Phase
Image 4.7 Mono phase application
Voltage measurement InteliMains applications on InteliGen 200 hardware
Because there is possible to import the InteliMains 210 Firmware in to the InteliGen 200 Hardware, is important
to respect the number of terminals for voltage measurement.
