InteliMains 210 Global Guide
242
Setpoint group General Analog Inputs Related FW 2.0.0
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 14976 Related applications MCB, MGCB, BTB
Description
Threshold level for switching the binary output AIN SWITCH 18 (PAGE 489) on. The value is measured from
AIN SWITCH 04 (PAGE 485) analog input.

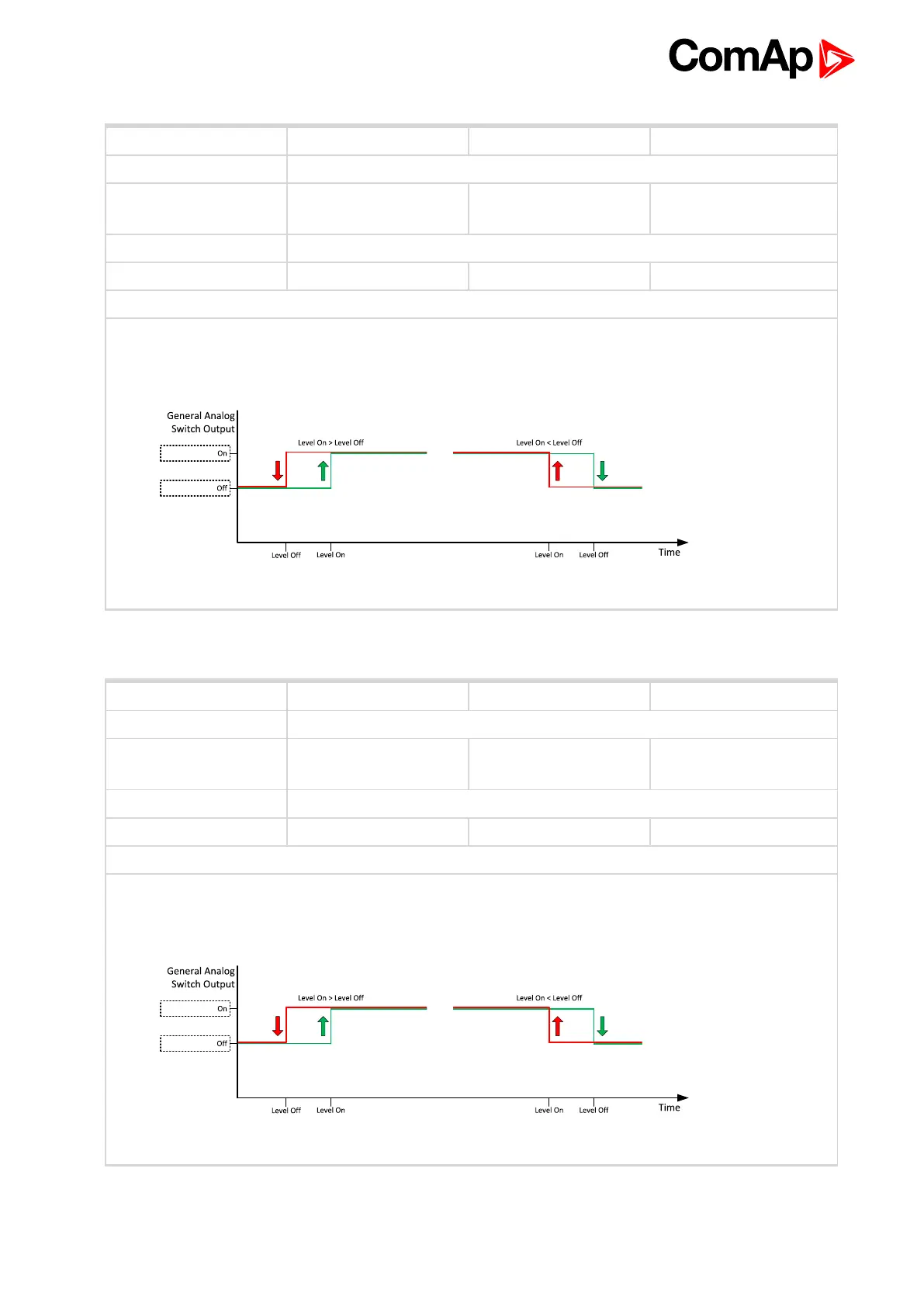

Image 8.36 General analog input 4 switch
Analog Switch 18 On
6 back to List of setpoints
Setpoint group General Analog Inputs Related FW 2.0.0
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 14992 Related applications MCB, MGCB, BTB
Description
Threshold level for switching the binary output AIN SWITCH 18 (PAGE 489) off. The value is measured from
AIN SWITCH 04 (PAGE 485) analog input.
Image 8.37 General analog input 4 switch
Analog Switch 18 Off
6 back to List of setpoints
