InteliMains 210 Global Guide
360
Setpoint group PLC Related FW 2.0.0
Range [units] Depends on resolution of value [-]
Default value
Depends on resolution of
value [-]
Alternative config NO
Step Depends on resolution of value [-]
Comm object 10500 Related applications MCB, MGCB, BTB
Description
Adjustable value for input in PLC logic.
Configuration of setpoint:
Configuration is made via configuration PC tool InteliConfig

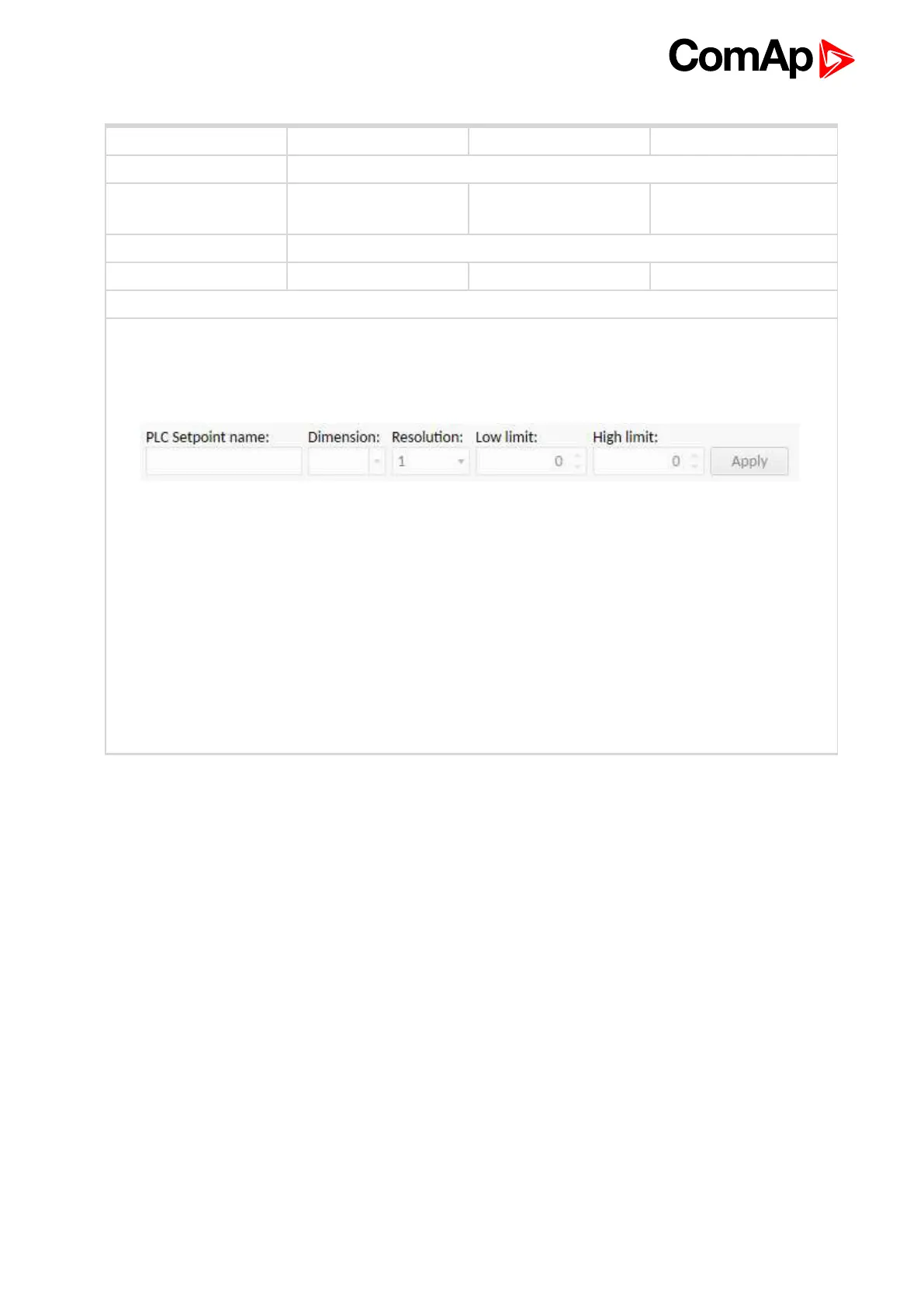

Image 8.102 Screen of configuration from InteliConfig
PLC Setpoint name Name of the setpoint (0..32 characters)
Dimension Dimension of value of the setpoint.
Resolution
Resolution of the value of the setpoint. Resolution adjust number of decimal places
in low and high limit.
Low limit
The lowest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
High limit
The highest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
PLC Setpoint 61
6 back to List of setpoints
