Group: Comparison of analog inputs
PLC group Comparison of analog
inputs
Related FW 2.0.0
Related applications AMF, MRS MINT, SPtM
Comm object 3
Inputs
Input Type Negation Range Function
Input Analog No Any Compared value
Input ON Analog No Same as Input Comparative level for switching on
Input OFF Analog No Same as Input Comparative level for switching off
Outputs
Output Type Negation Range Function
Output Binary No 0/1 Comparator output
Description
The block compares the input value with the comparative levels. The behavior depends on whether the ON
level is higher than OFF level or vice versa.

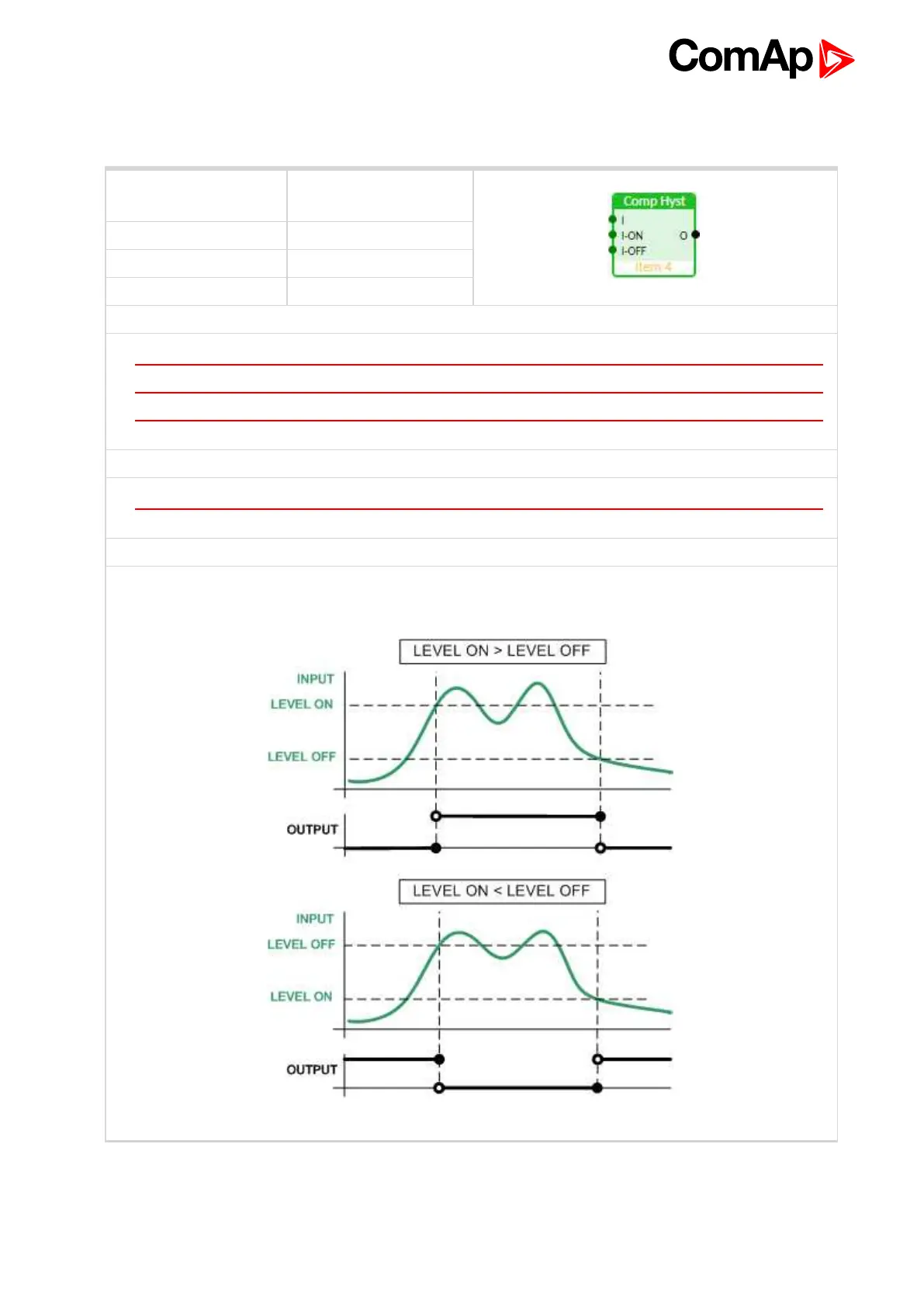

Image 8.146 Different On and Off levels
