InteliMains 210 Global Guide
53
Note: This button will not change the mode if the controller mode is forced by
one of binary inputs listed in the Reference Guide – “Operating modes”
chapter.

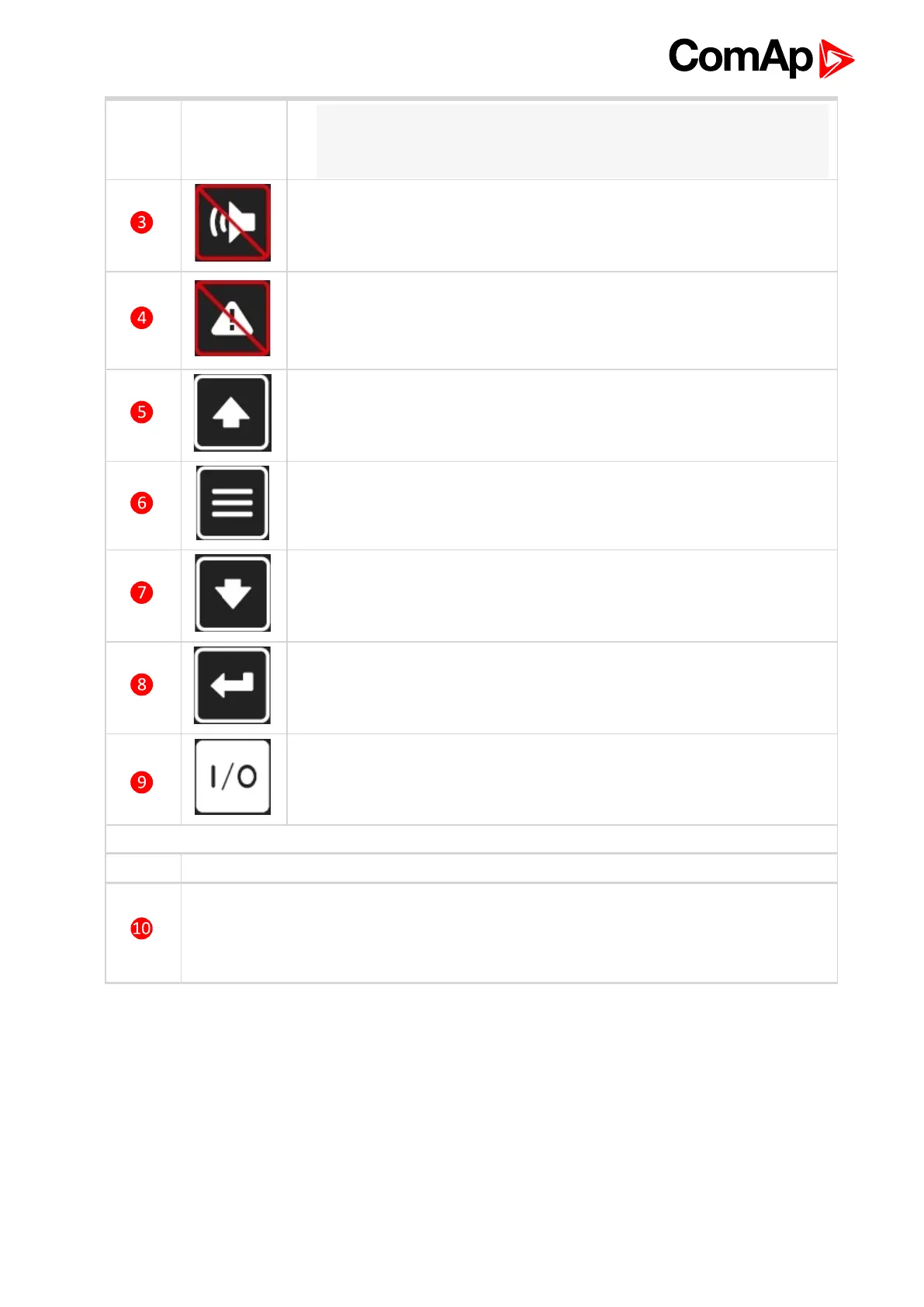

HORN RESET button. Use this button to deactivate the horn output without
acknowledging the alarms.
FAULT RESET button. Use this button to acknowledge alarms and deactivate
the horn output. Inactive alarms will disappear immediately and status of active
alarms will be changed to "confirmed" so they will disappear as soon as their
reasons dismiss.
UP button. Use this button to move up or increase value.
PAGE button. Use this button to switch over display pages.
DOWN button. Use this button to move down or decrease value.
ENTER button. Use this button to finish editing a setpoint or moving right in the
history page.
BTB button. Works in MAN mode only. Press this button to open or close the
BTB or start the synchronization manually.
Indicators and others
Position Description
Bus Right status indicator. There are two states - Bus Right OK (indicator is green) and Bus
Right failure (indicator is red). Green LED is on if the Bus Right voltage is present and within
limits. Red LED starts flashing when Bus Right failure occurs. After FAULT RESET button is
pressed, goes to steady light (if an alarm is still active) or is off (if no alarm is active).
