Operator Interface

This chapter provides general information on how to operate the InteliVision 5 display. This manual is

intended for everybody who is concerned with operation and controls of the gen-set.

4 2

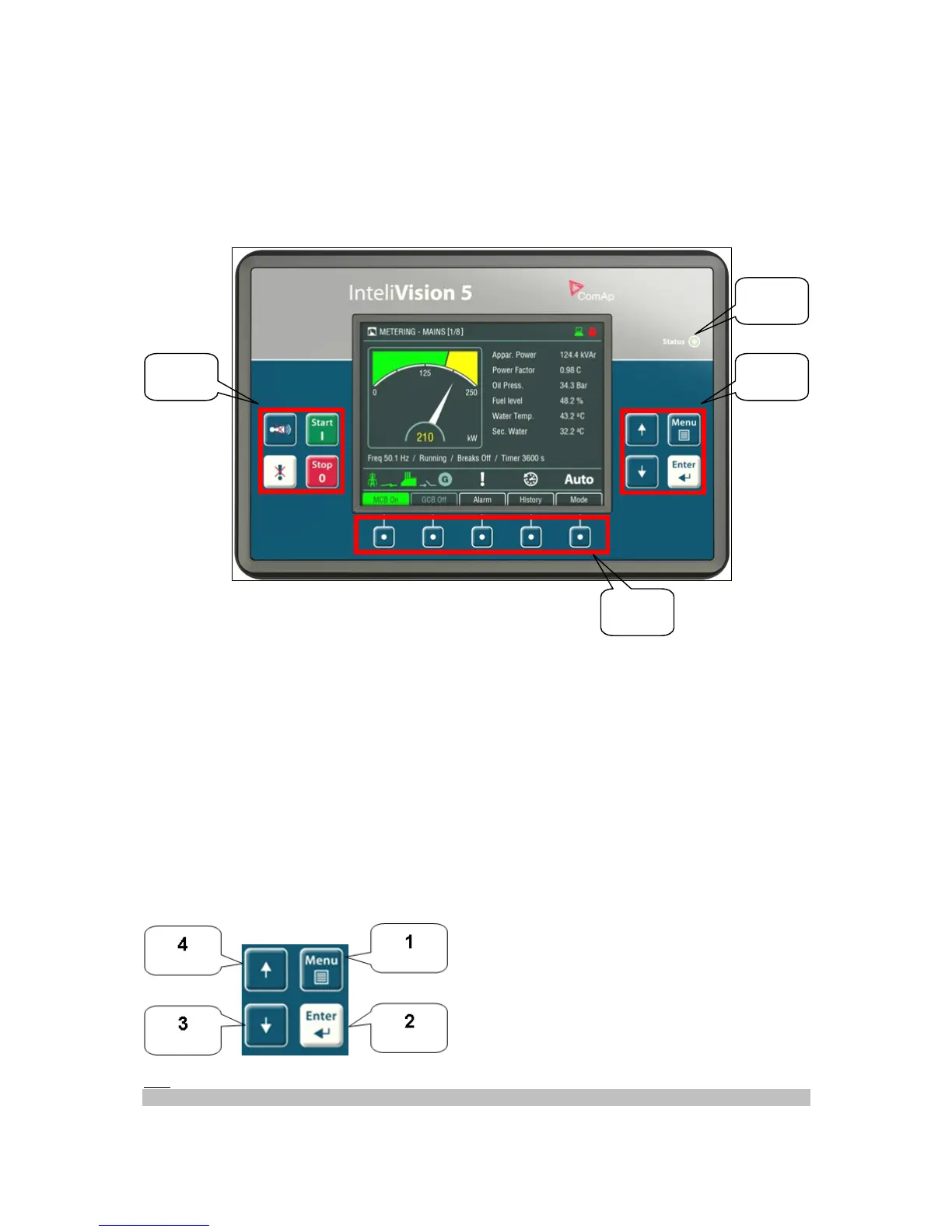

LED and Buttons

1. Status - Status LED indication (green = InteliVision 5 is running)

2. Navigation buttons - Arrows for movement + Menu and Enter button

3. Context buttons - Control or select submenu/sub-options buttons

4. Control buttons - Horn reset, Fault reset, Stop and Start buttons

Navigation Buttons

There are four navigation buttons:

1. ↑ - Movement up

2. ↓ - Movement down

3. Menu - Jump to menu/sub-menu page or escape from any dialog window

4. Enter - Confirms a value or opens a value adjustment within setting dialogs

Hint:

To leave the menu, use Menu button.
