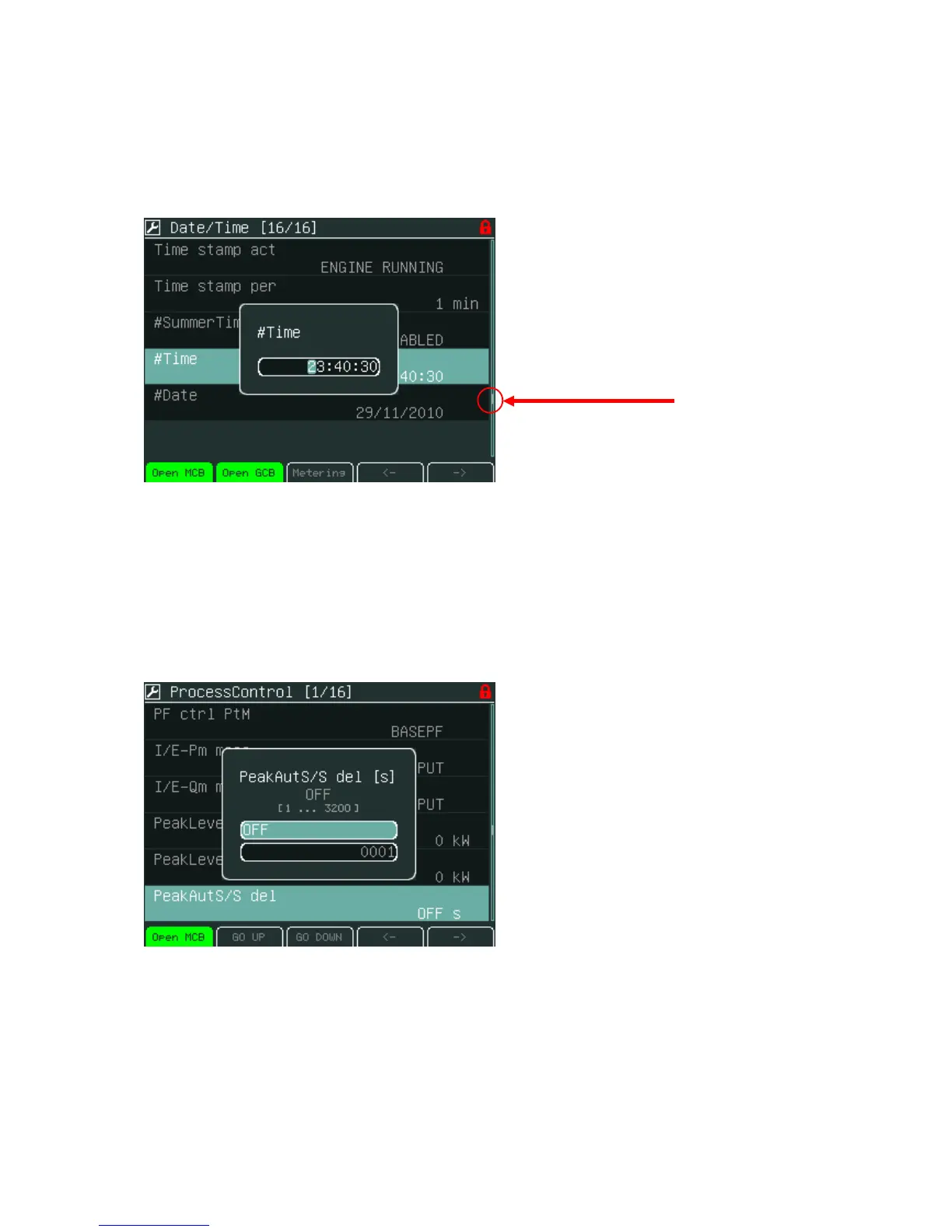

Time and Date Edit
1. Press the button when the proper setpoints group is chosen (e.g. Date/Time)
2. Use arrows ↑ or ↓ to go to a certain set-point (e.g. Time) and press Enter button, see picture
below:
Scroll bar shows cursors position
3. Use ↑ ↓ buttons to select the number, → ← for the next position and press Enter button.
Combined Setpoints
1. Press the button when the proper setpoints group is chosen (e.g. ProcessControl)
2. Use arrows ↑ or ↓ to go to a certain set-point (e.g. PeakAutS/S del) and press Enter button, see
picture below:
3. Use ↑ or ↓ buttons to select the number, → or ← for the next position or Go Up/Go Down context
buttons and press Enter button.
InteliVision 5-1.1 Reference Guide ©ComAp – December 2011 26
