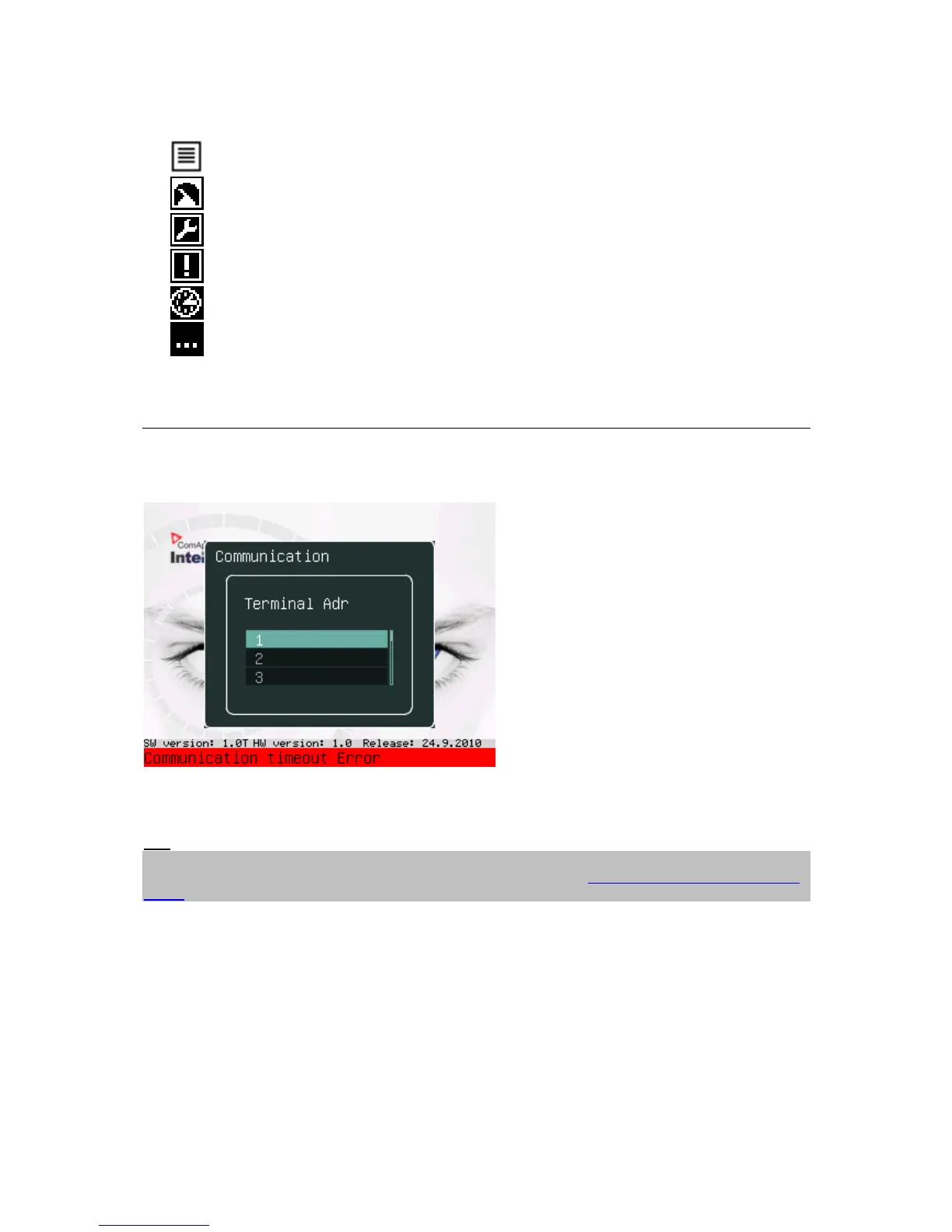

Icons Referring to Specific Screens
- Menu screen
- Measurement screens
- Setpoints screen
- Alarm list screen
- History screen
- Help/Others screen
Communication Error
Communication error occurs when no control unit is connected to the display or communication is
interrupted. In that case the following screen appears:
When the communication between unit and display is fixed, the red stripe disappears and InteliVision
5 initializes communication with the unit.
Hint:
The control unit is identified by InteliVision 5 and only valid numbers of terminal addresses are
displayed. For the maximum number of connected InteliVision 5 see How many InteliVisions 5 can be
used?
InteliVision 5-1.1 Reference Guide ©ComAp – December 2011 7
