How to Connect InteliVision 5 to IGS-NT?
InteliVision 5 is connected to the controller via RS-485 line. Connection is fixed after the unit is
powered up and the control unit is detected. Communication error screen disappears. InteliVision 5
identifies connected controllers and configuration is read automatically without any additional dialogue.
When terminal address has to be changed for any reason:
1. Press Menu button and choose Help/Others menu
2. Use ↑ or ↓ for Communication item and press Enter

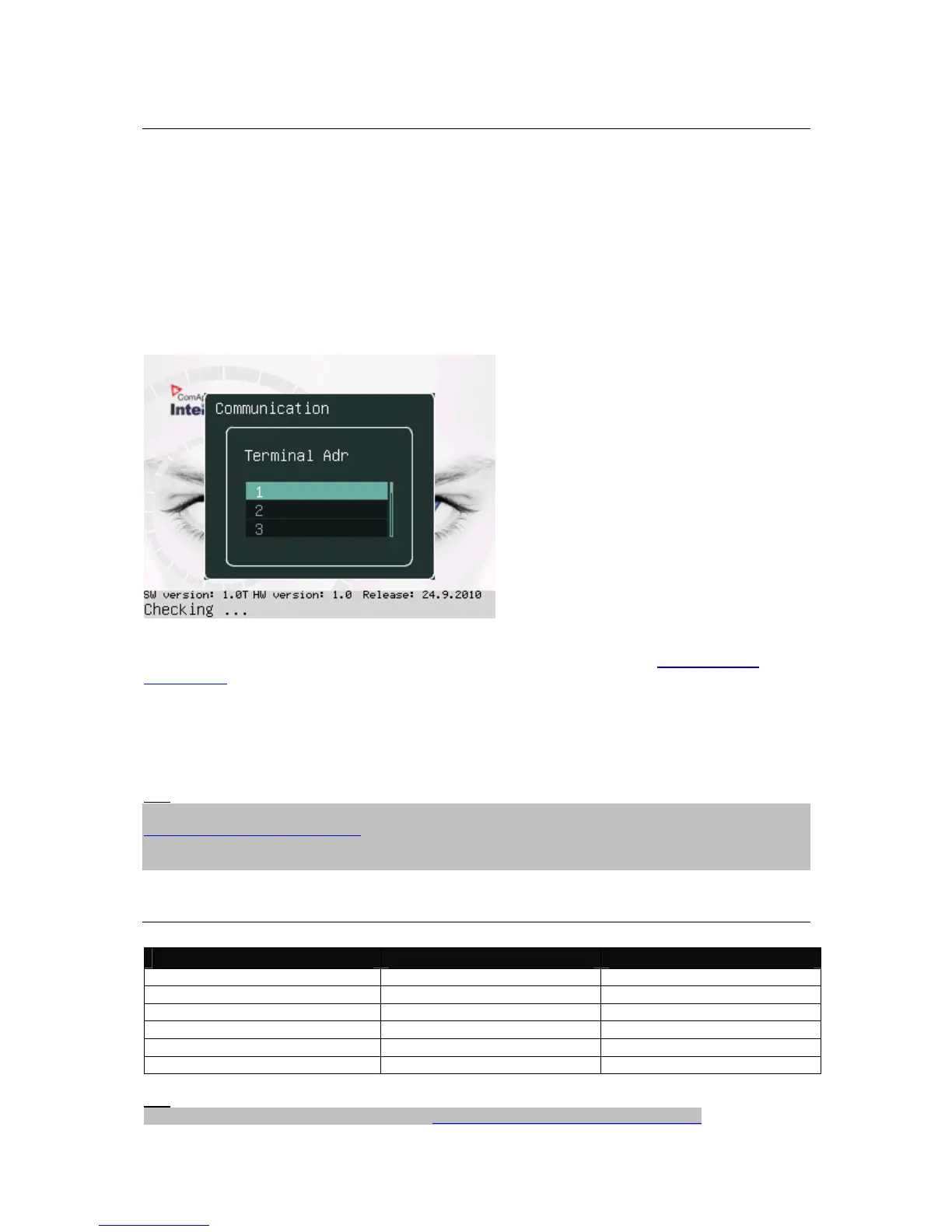

3. Use ↑ or ↓ and choose appropriate Terminal Adr and press Enter, see picture below.
InteliVision 5 will reboot and the new terminal address will be used. Loss of communication is
presented with the first screen, with SW version, HW version and release date. Communication
timeout error is displayed with terminal address dialogue.
When InteliVision 5 is connected to IS-NTC BB, there can be connected up to 3 IV5. When “terminal
Adr.“ dialog is chose, all terminals are automatically detected . Available NT terminal addresses are
displayed by green color. Color of active (occupied) NT terminals is red.
Hint
For the information how to connect InteliVision 5 to the controller go to the Installation guide 2.5 or
Terminals and dimension chapter. RS 485 terminators have to be used to assure proper functionality.
To avoid electrical disturbances on long distances or where electrical disturbance is present use
InteliVision 5 RD.
How many InteliVisions 5 can be Used?
Unit Number of displays Display address
IG-NT(C) –BB 2 1 and 2
IS-NTC – BB 3 1, 2, 3
IM-NT-BB 2 1 and 2
IG-NT(C) 1 2
IS-NT-BB 3 1, 2 ,3
IM-NT 1 2
Hint
For how to set up InteliVision 5 address see How to Connect InteliVision 5 to IGS-NT?
InteliVision 5-1.1 Reference Guide ©ComAp – December 2011 9
