Context Buttons

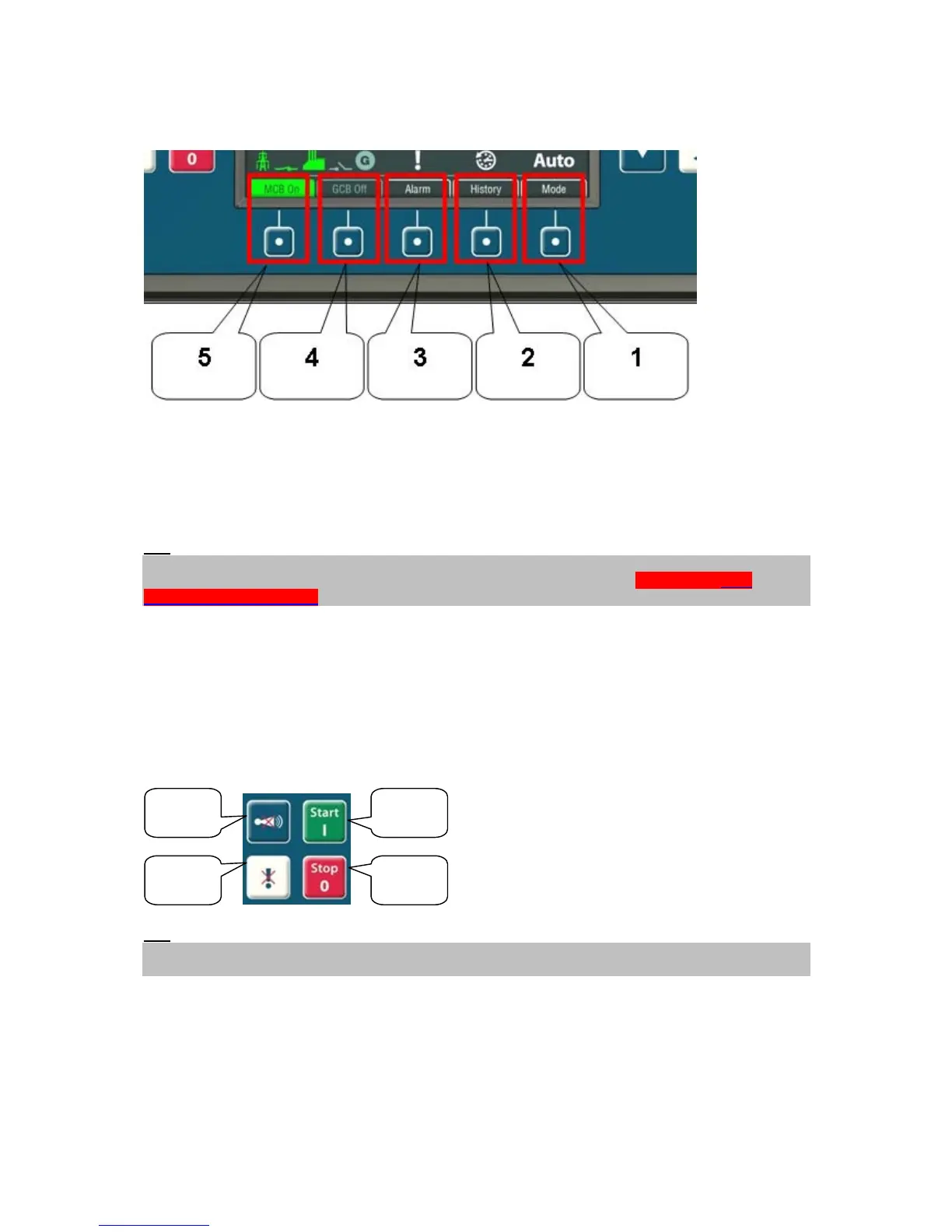

There are five context buttons with predefined meaning:
1. Mode button - Jump to the controller mode window
2. History - Jump to history screen
3. Alarm - Jump to Alarm list
4. GCB control - GCB control (close/open GCB)
5. MCB control - MCB control (close/open MCB)*
Hint:
MCB control button is present only in application where MCB is controlled.
Context buttons may be modified by users to fulfill customer’s requirements (see chapter User
definable SoftKeys buttons).
Control Buttons
There are four control buttons:
1. Start - Starts the gen-set
2. Stop - Stops the gen-set
3. Fault reset - Acknowledges faults and alarms (active only in Alarm screen)
4. Horn reset - Deactivates the horn (audible alarm)
4 1
3 2
Hint:
Start and Stop buttons work in MAN or SEM mode only. START and STOP buttons are independent
on the InteliVision 5 screen, menu or sub-menu.
