Inputs

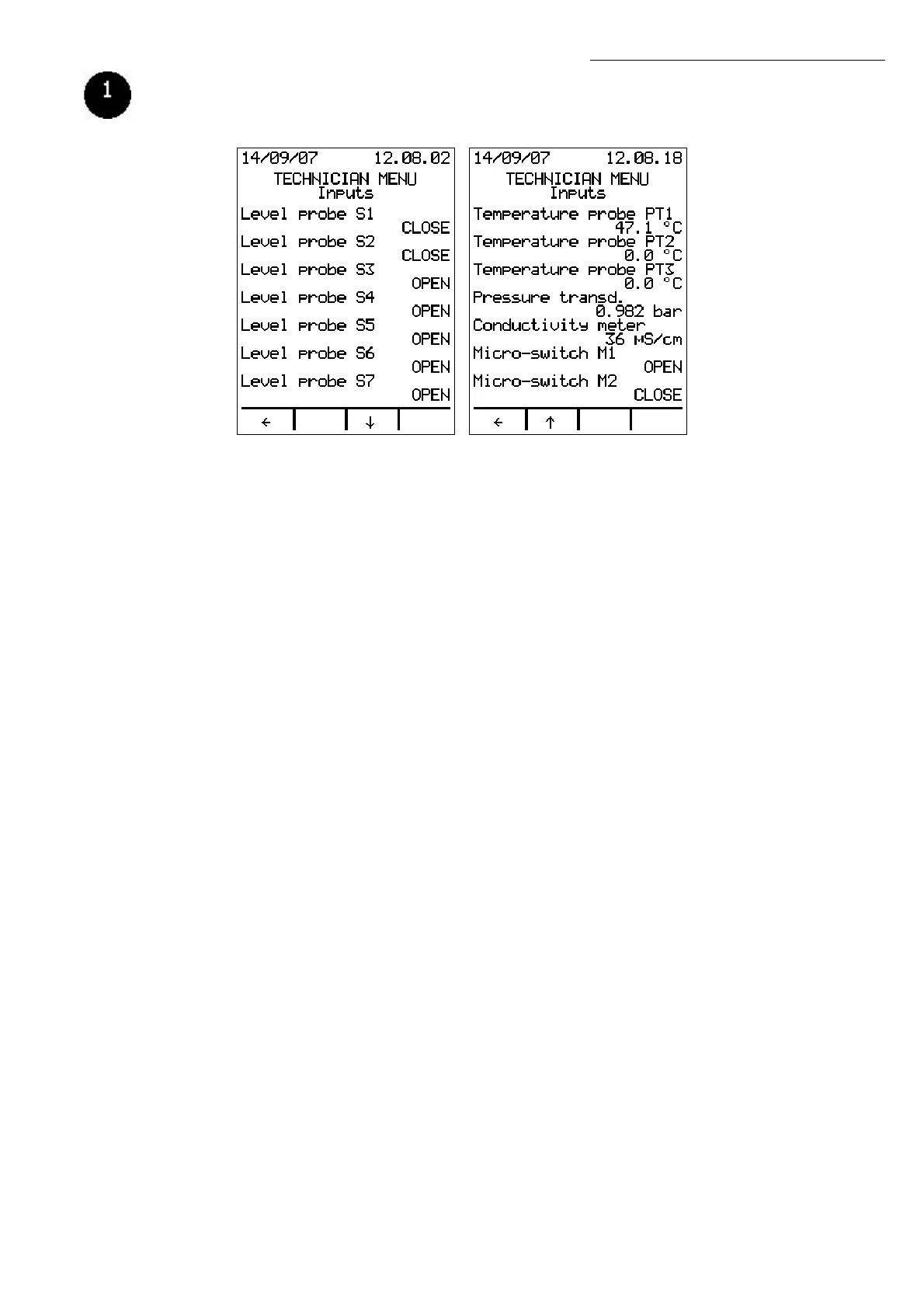

The status of the steriliser inputs can be displayed:
• S1 is the clean water tank 10 safety probe
• S2 is the clean water tank 10 minimum level probe
• S3 is the clean water tank 10 maximum level probe
• S4 is the waste water recovery tank 11 maximum level probe (not used in
6/18 S Dynamica models)
• S5 is the chamber 09 level probe for models 18/24 S Dynamica - S - B – BHD
(not used in 6 S Dynamica model)
• S6 is not used
• S7 is not used
• PT1 is the temperature probe 39 in chamber 09
• PT2 is not used
• PT3 is not used
• Pressure transducer 38
• Conductivity meter (optional; standard on BHD models)
• Micro-switch M1 36A: door locked
• Micro-switch M2 36B: door pre-lock
Use the ↑↓ arrows to scroll the list and press to go back to the Technician Menu.
