COMINOX STERILCLAVE 18 - Wiring Diagram 6 S Dynamica

65

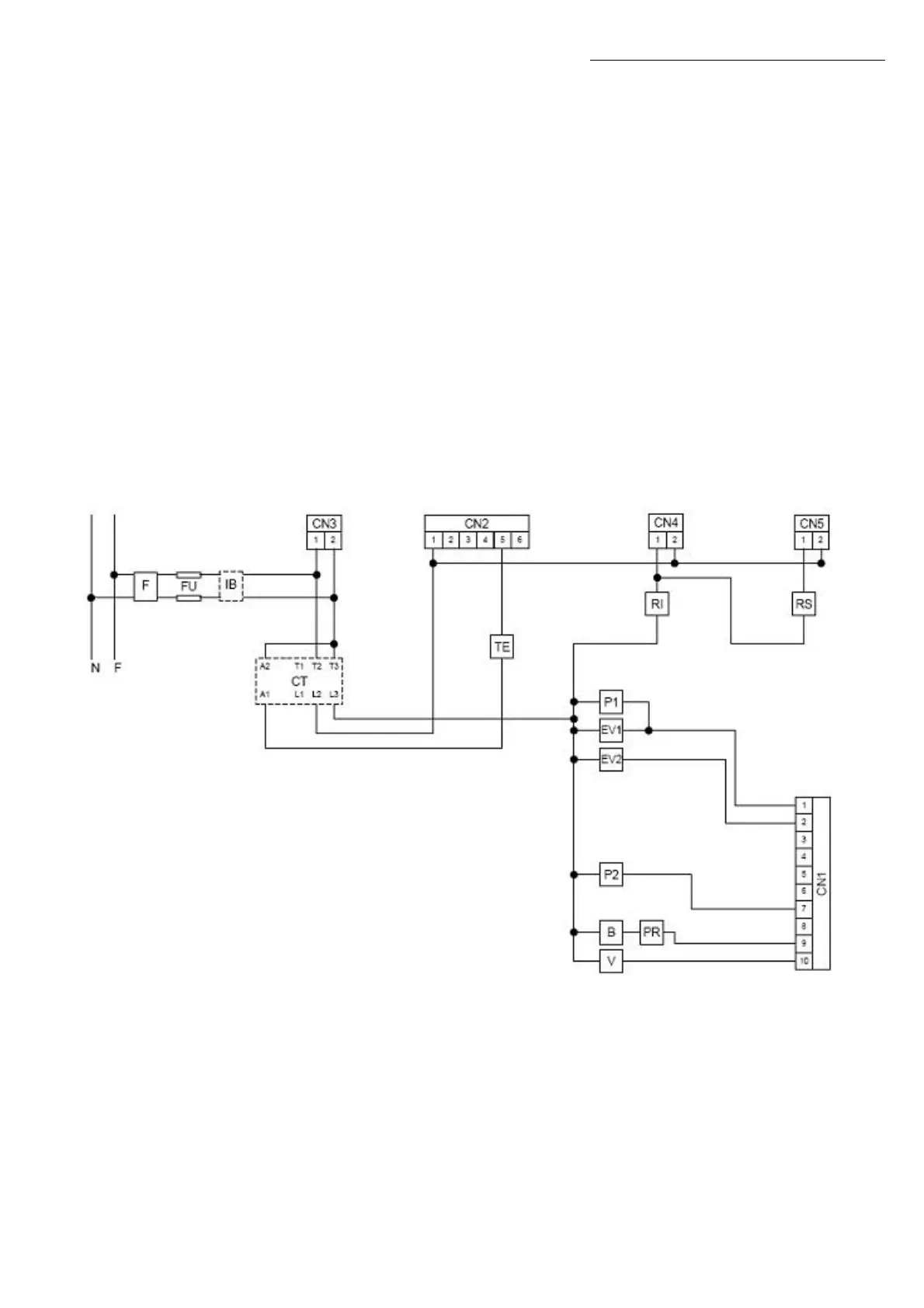

Wiring diagram 6 S Dynamica
- EV... Solenoid valves
- P1 Water inlet pump 35
- B Door lock winding
- P2 Automatic water inlet pump 46 (config. A), solenoid valve EV7 (config. B)
- CT Power contactor
- PR Safety pressure switch
- F Anti-jamming filter
- PV Vacuum pump 41
- FU Fuses 32
- RS Upper coil
- ET Fans 42
- RI Lower coil
- IB Main switch 0-1
- T Safety thermostat 17
Diagrams and wirings
