14

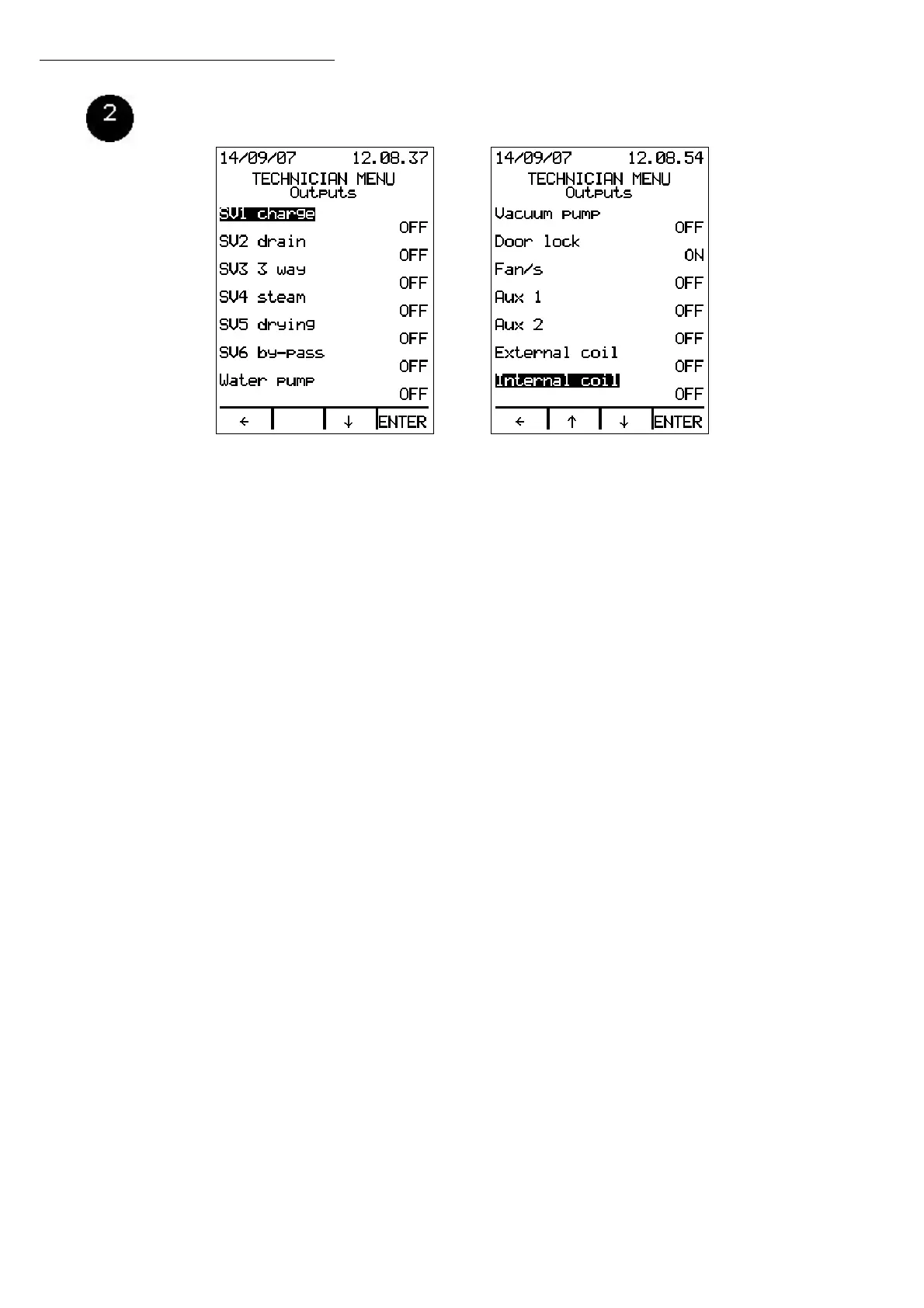

Outputs
The status of the steriliser outputs can be displayed and modified:
• EV1 charge to which the water inlet pump 35 is connected in parallel
(included on all models)
• EV2 drain (included on all models)
• EV3 3-way (not included on 6/18 S Dynamica models)
• EV4 steam (not included)
• EV5 drying (not included on 6/18 S Dynamica models)
• EV6 by-pass (not included on 6/18 S Dynamica models)
• Water pump is the automatic water inlet pump 46 (optional; standard on
BHD models). If the steriliser is provided with connections to the SPEEDY
WATER demineralisation system, the pump is replaced by solenoid valve EV7
(see page 51)
• Vacuum pump (not included on 6/18 S Dynamica models)
• Door lock (included on all models)
• The fan(s) are fans 42: single on 6/18 S Dynamica and 18 S; double on other
models
• Aux 1 is not used
• Aux 2 is not used
• External coil for pre-heating and drying chamber 09
• Internal coil for steam generation
NB. The internal coil is:
• The external cylindrical band arranged around chamber 09 in models 18 S
Dynamica, 18/24 S - B - BHD
• The series of lower and upper coils external to chamber 09 in 6 S Dynamica
The internal coil is:
• The coil in chamber 09 in models 18 S Dynamica, 18/24 S - B - BHD
• The lower coil external to chamber 09 in 6 S Dynamica
Use the ↑↓ arrows to scroll the list and highlight the required option. Press ENTER to change
the output state (ON/OFF).
Press to go back to the Technician Menu.
