DIAGRAMS AND WIRINGS
Logic electronic board

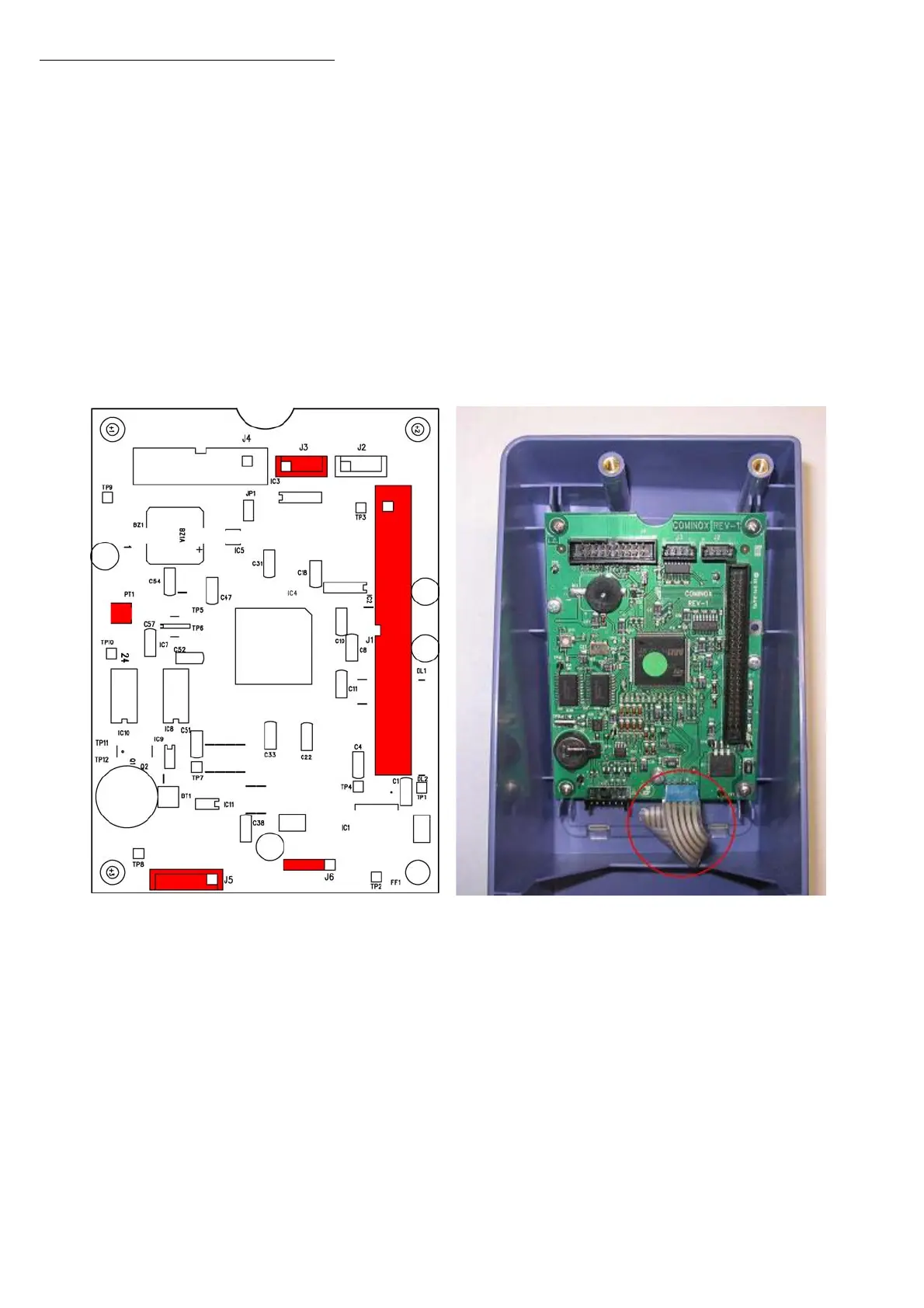

Logic board 33 is a low voltage board common to all models.
J1 Connection cable to power board 34
J3 Connection cable to the serial port
J5 Connection cable to the SterilCard reader
J6 Connection cable to the keyboard
PT1 Display adjustment trimmer (see chapter DISPLAY OFF OR NOT CLEAR)
