COMINOX STERILCLAVE 18 - Hydraulic Diagram 18;24 S - B - BHD

67

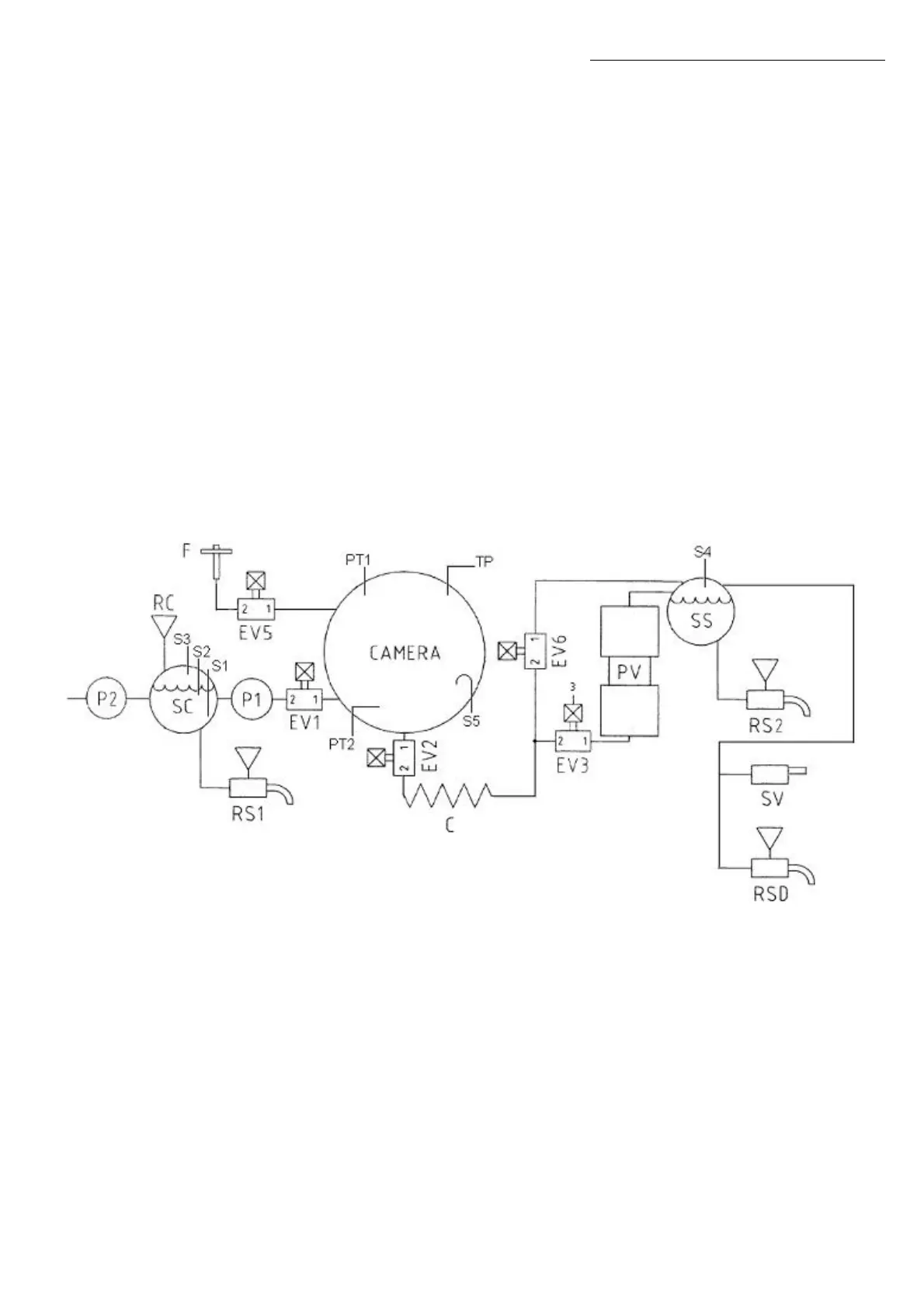

Hydraulic diagram 18/24 S - B - BHD
- EV... Solenoid valves
- RS1 Clean water drain tap 24
- C Condenser
- RS2 Waste water drain tap 25
- F Air sterilisation filter 15
- RSD Direct drain (BHD model only)
- P1 Water inlet pump 35
- SC Clean water tank 10
- P2 Automatic water inlet pump 46 (config. A), solenoid valve EV7 (config. B)
- SS Waste water recovery tank 11
- TP Transducer 38 (pressure)
- PR Safety pressure switch
- SV Condensation tank
- PV Vacuum pump 41
- VS Safety valve 12
- RC Filler 14
- VU Check valves
Diagrams and wirings
