12 Ruckus ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-09
Ruckus ICX 7450 Overview
Views of the Ruckus ICX 7450 switch
Views of the Ruckus ICX 7450 switch

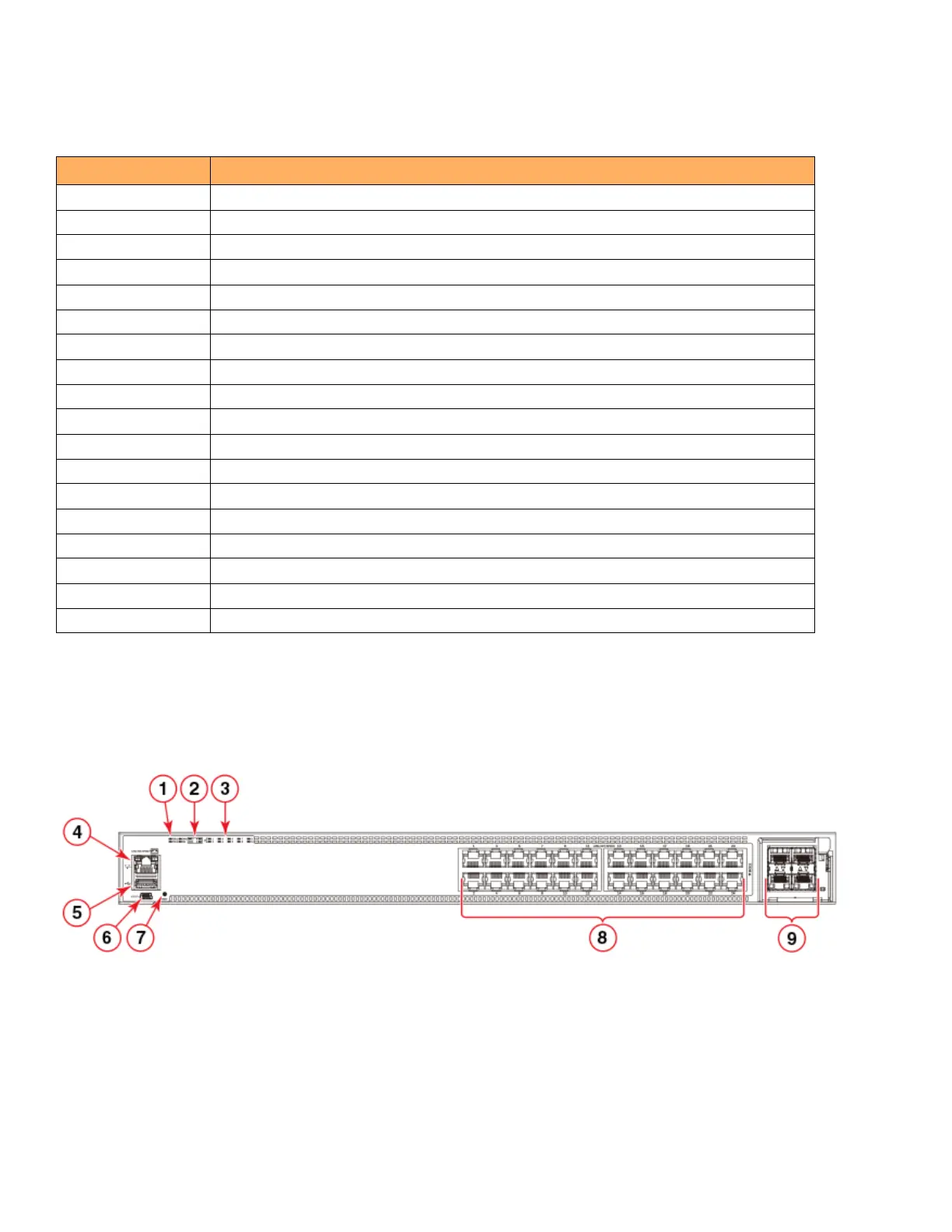

Figure 1 shows the front view of the Ruckus ICX 7450-24 switch.
FIGURE 1 Front view of the Ruckus ICX 7450-24
RPS15-E Ruckus ICX non-PoE 250 W AC PSU, power-supply-side exhaust (port-side intake) airflow
RPS15-I Ruckus ICX non-PoE 250 W AC PSU, power-supply-side intake (port-side exhaust) airflow
RPS16-E Ruckus ICX PoE+ 1000 W AC PSU, power-supply-side exhaust (port-side intake) airflow
RPS16-I Ruckus ICX PoE+ 1000 W AC PSU, power-supply-side intake (port-side exhaust) airflow
RPS16DC-E Ruckus ICX 510 W DC PSU, power-supply-side exhaust (port-side intake) airflow
RPS16DC-I Ruckus ICX 510 W DC PSU, power-supply-side intake (port-side exhaust) airflow
ICX-FAN10-E Ruckus ICX 7450 power-supply-side exhaust airflow fan (two fans required with two power supplies)
ICX-FAN10-I Ruckus ICX 7450 power-supply-side intake airflow fan (two fans required with two power supplies)
CC-MINIUSB-RJ45 Console cable, male mini-USB to male RJ-45
ICX7450-RMK FRU, Rack mount kit, 2-post, ICX 7450
XBR-R000295 FRU, Universal rack mount kit, 4-post 24-32-inch depth rack, DX6740T/VDX6740T-1G
PCEURO Power Cord for RPS15/16, European version
PCUK Power Cord for RPS15/16, United Kingdom version
PCAUS Power Cord for use in Australia
PCJAPAN Power Cord for RPS15/16, Japan version
PCCHINA2-IEC309 Power Cord, China, IEC309 TO C13, 10A, 250V
PCSWISS-C1312G-HF Power Cord, Swiss, SEV1011 TO C13, 10A, 250V, halogen free
PCINDIA 6-foot AC power cord for India
1System LEDs 6Mini-USB console port
2 Media/Stacking module LEDs 7 Reset button
3 Stack unit ID display 8 10/100/1000Base-T RJ-45 ports 1/1/1 - 1/1/24
4 Management port (RJ-45) 9 SFP/SFP+ (1/2/1 - 1/2/4) & QSFP+ (1/2/1)
5 USB port (for flash drive)
