Ruckus ICX 7450 Switch Hardware Installation Guide 17
Part Number: 53-1003899-09
• Slot 1 and Slot 2 are located on the front of the Ruckus ICX 7450-48F device. Slot 1 contains 1 GbE SFP ports 1/1/1 through
1/1/48, with odd port numbers on the top row and port 1/1/1 on the left. Slot 2 contains 1/10 GbE SFP+ ports 1/2/1 and
1/2/3 on the top row (left to right), and ports 1/2/2 and 1/2/4 on the bottom row (left to right). Refer to the following figure.

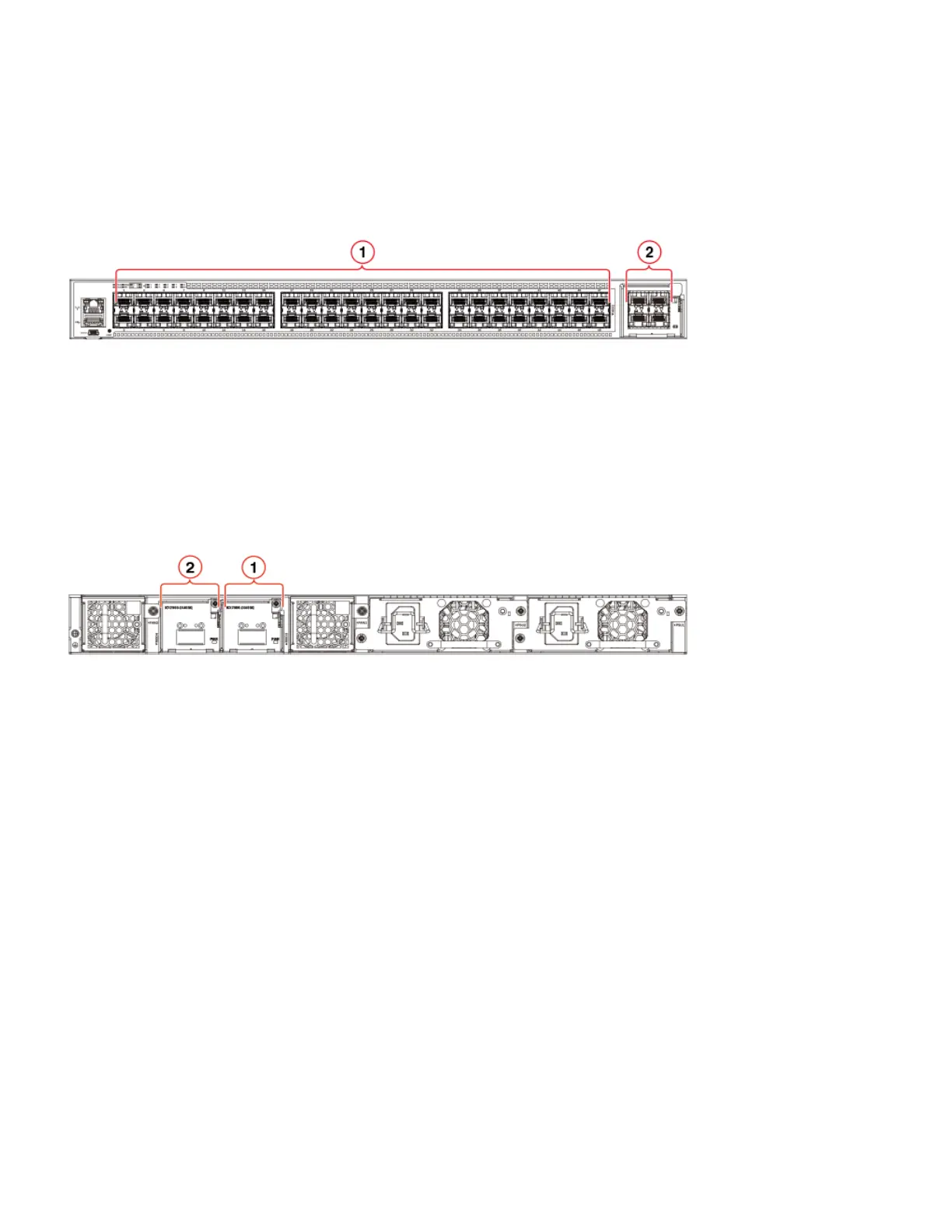

FIGURE 11 Ruckus ICX 7450-48F slot numbering
• Slot 3 is located on the rear of the Ruckus ICX 7450 switch and with a single-port module installed contains 40 GbE QSFP+
stacking/data port 1/3/1. With a 4-port module installed, Slot 3 contains 1/10 GbE SFP+ ports 1/3/1 and 1/3/3 on the top
row (left to right), and ports 1/3/2 and 1/3/4 on the bottom row (left to right). Refer to Figure 12.
• Slot 4 is also located on the rear of the Ruckus ICX 7450 switch and with a single-port module installed contains 40 GbE
QSFP+ stacking/data port 1/4/1. With a 4-port module installed, Slot 4 contains 1/10 GbE SFP+ ports 1/4/1 and 1/4/3 on
the top row (left to right), and ports 1/4/2 and 1/4/4 on the bottom row (left to right). Refer to Figure 12.
FIGURE 12 Ruckus ICX 7450 rear slot numbering
Supported expansion modules
A 4-port 1 GbE SFP expansion module can be installed in the slots shown in Table 4 on page 18 and Table 6 on page 18. The
expansion module supports 1 GbE optics (refer to the Ruckus Optics Family Data Sheet).
A 4-port 1/10 GbE SFP+ expansion module can be purchased and installed in the slots shown in Table 4 on page 18 and Table 6 on
page 18. The expansion module supports 1 GbE and 10 GbE optics (refer to the Ruckus Optics Family Data Sheet).
A 4-port 1/10 GbE copper expansion module can be installed in the slots shown in Table 4 on page 18 and Table 6 on page 18. The
expansion module supports 1 GbE and 10 GbE copper wired connections.
A 1-port 40 GbE QSFP+ expansion module can be installed in the slots shown in Table 4 on page 18 and Table 6 on page 18. The
expansion module supports 40 GbE optics. This module can be used for data uplink or stacking.
Modules are supported in slots where “Yes” is indicated.
1 Slot 1 – SFP ports 1/1/1 - 1/1/48 2 Slot 2 – SFP+ ports 1/2/1 - 1/2/4
1 Slot 3 – 40 GbE QSFP+ stacking/data port 1/3/1
or 1/10 GbE SFP+ data ports 1/3/1 - 1/3/4
2 Slot 4 – 40 GbE QSFP+ stacking/data port 1/4/1
or 1/10 GbE SFP+ data ports 1/4/1 - 1/4/4
