Ruckus ICX 7450 Switch Hardware Installation Guide 19
Part Number: 53-1003899-09

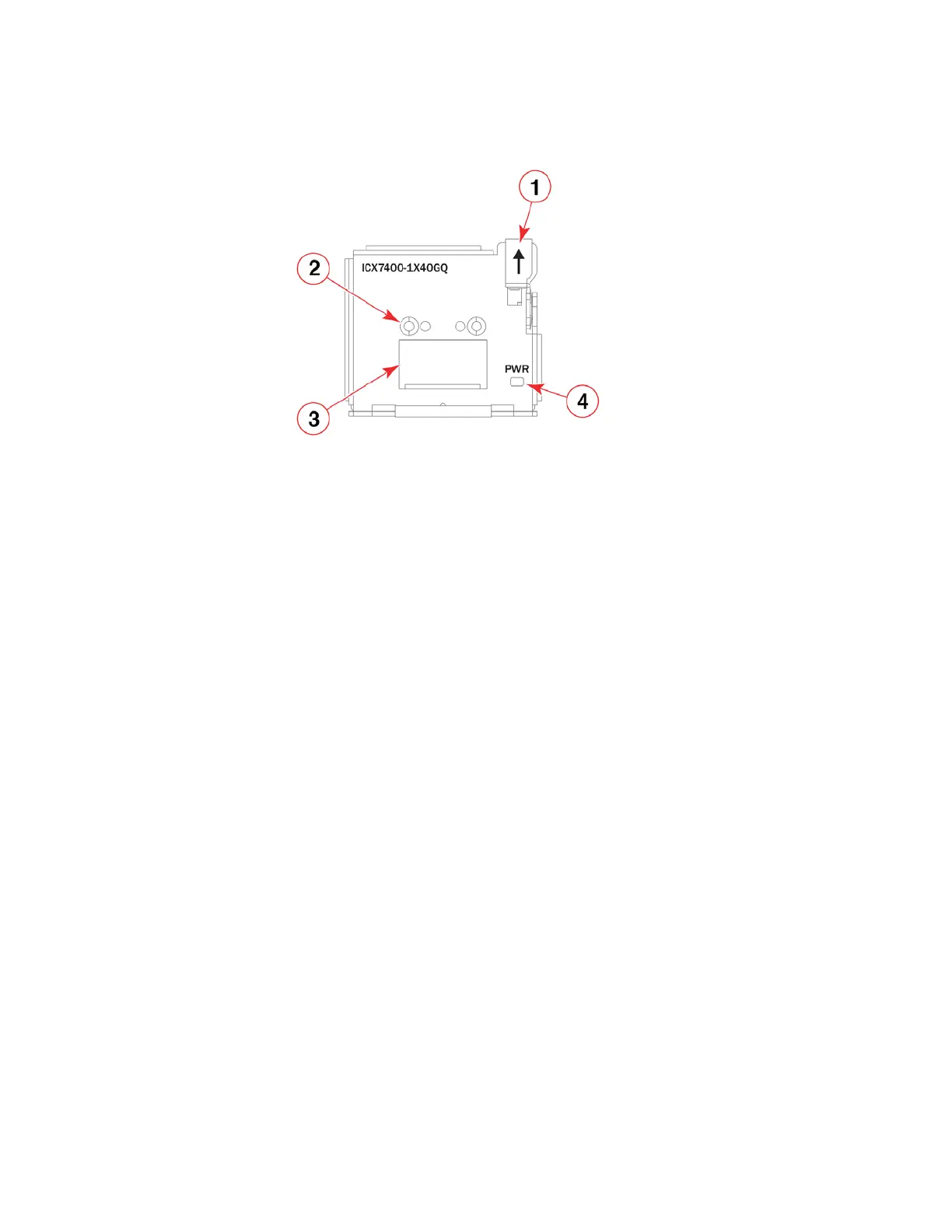

FIGURE 13 40 GbE QSFP+ expansion module
NOTE
Pull the release lever down before removing a media or stacking module.
Supported transceivers and cables
For a list of supported transceivers and cables, refer to the Ruckus Optics Family Data Sheet.
QSFP+ 40GBase-SR-BD support
The Ruckus ICX 7450 supports 40GBASE-SR-BD bi-directional (BiDi) QSFP+ transceivers with duplex LC optics. The 40 GbE BiDi
optics support two 20 GbE channels over duplex fiber cable, with the transmit and receive of each channel operating at two wavelengths
on a single fiber.
The 40 GbE BiDi transceivers enable 40 GbE links to be supported on installed 10 GbE duplex fiber infrastructure. This transceiver is for
data only, it is not supported for stacking.
1Release lever latch 3QSFP+ slot
2 Module slot LEDs 4 Expansion module power LED
