30 Ruckus ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-09
Installing the Ruckus ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)

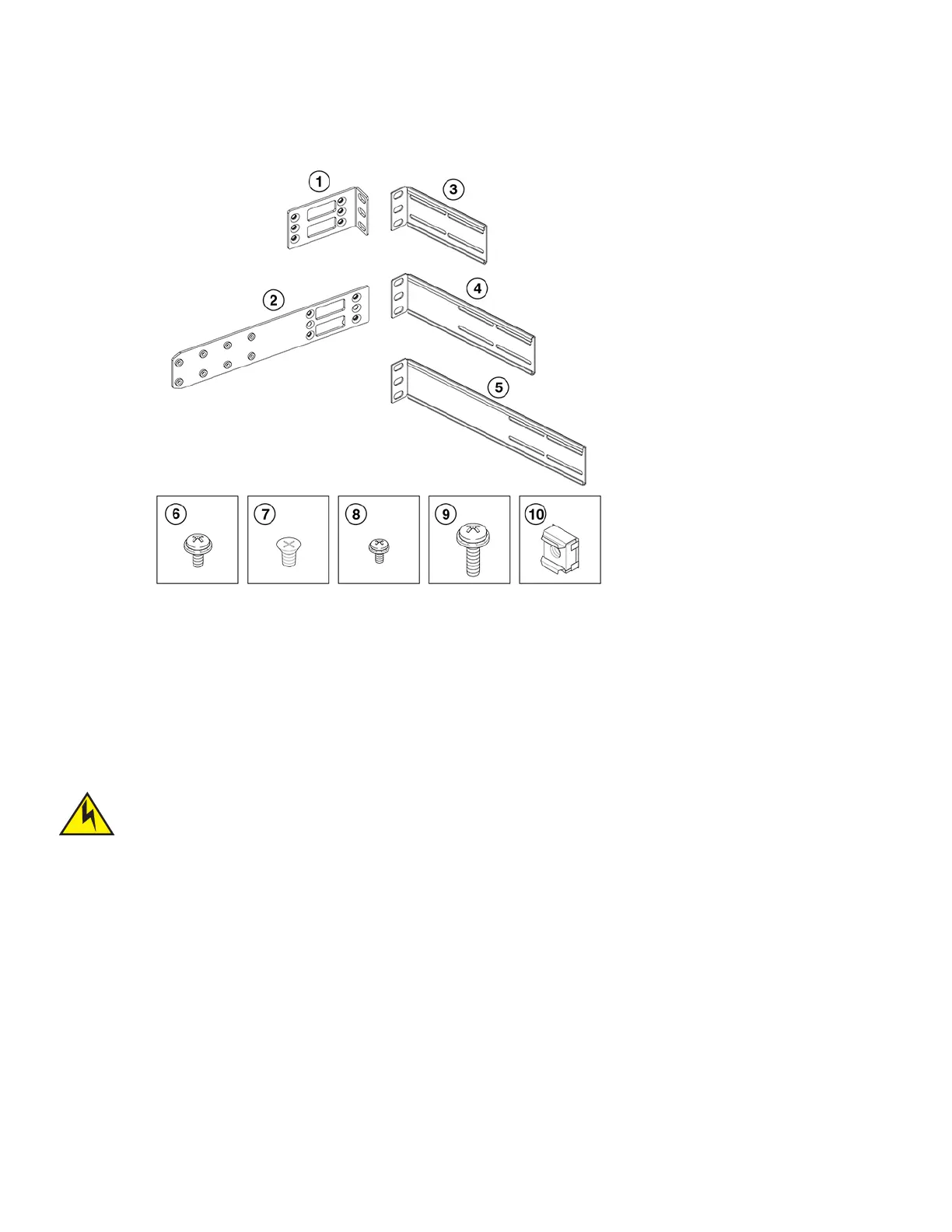

FIGURE 18 Rack kit parts
Flush-front mounting the device in the rack
The illustrations in the rack installation procedures show a 1U device, but the instructions are the same for a 1.5U or 2U device.
The illustrations in the rack installation procedures are for reference only and may not show the actual device.
Complete the following tasks to install the device in a four-post rack:
1. “Attaching the front brackets” on page 31
2. “Attaching the extension brackets to the device” on page 31
3. “Installing the device in the rack” on page 32
4. “Attaching the rear brackets to the extensions” on page 33
5. “Attaching the rear brackets to the rack posts” on page 34
1 Front brackets (2) 6 Screw, 8-32 x 5/16-in., panhead Phillips (8)
2 Bracket extensions (2) 7 Screw, 8-32 x 5/16-in., flathead Phillips (16)
3 Rear brackets, short (2) 8 Screw, 6-32 x 1/4-in., panhead Phillips (8)
4 Rear brackets, medium (2) 9 Screw, 10-32 x 5/8-in., panhead Phillips (8)
5 Rear brackets, long (2) 10 Retainer nut, 10-32 (8)
The device must be turned off and disconnected from the fabric during this procedure.
