Ruckus ICX 7450 Switch Hardware Installation Guide 33
Part Number: 53-1003899-09

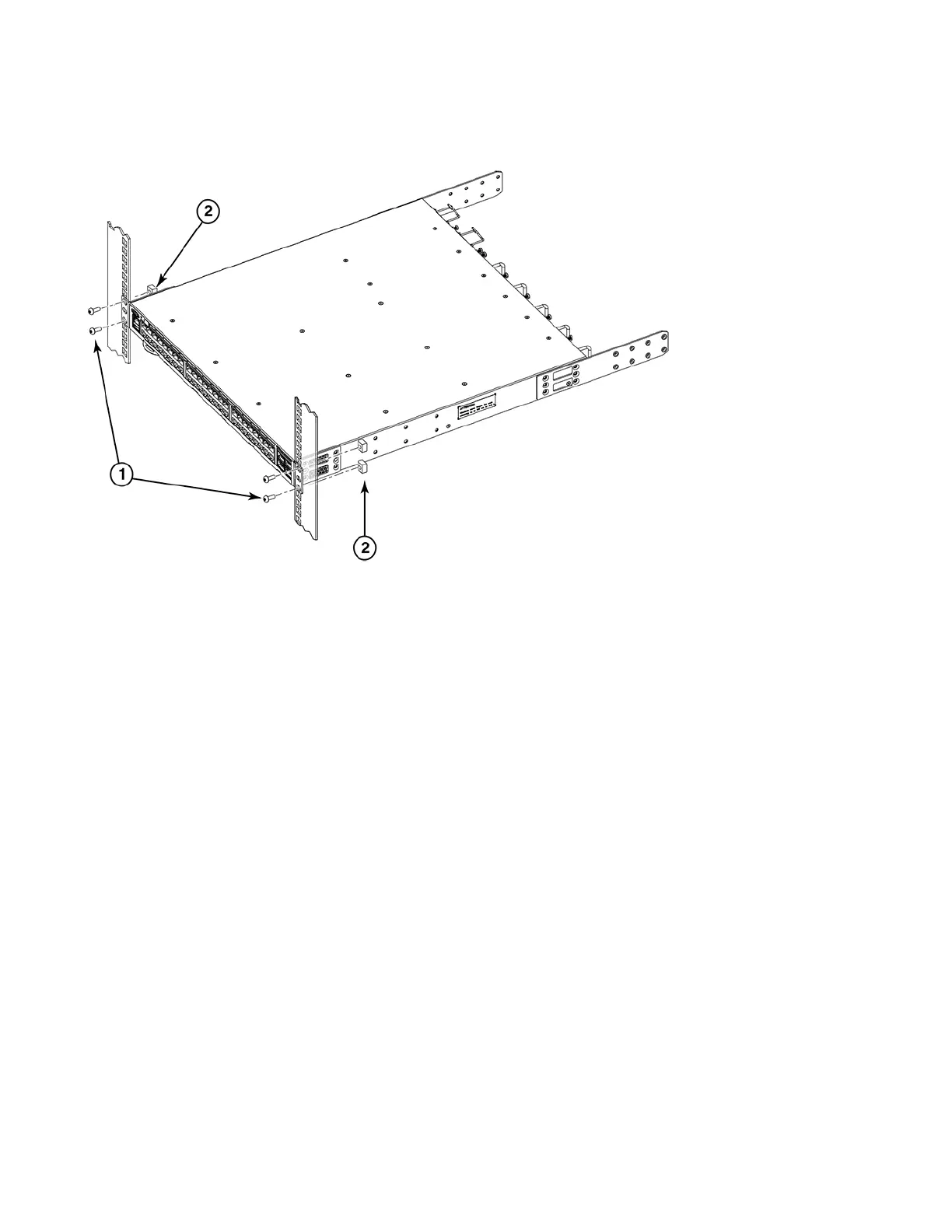

FIGURE 21 Positioning the device in the rack
Attaching the rear brackets to the extensions
Complete the following steps to attach the rear brackets to the extensions. There are short and long rear brackets that you can use for this
step. Choose the correct bracket for the depth of your rack.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension, as shown in Figure 22.
The short rear brackets are shown. Use the first and third vertical pairs of holes for the screws.
Refer to Figure 23 for the positioning of the medium or long brackets and screws.
3. Attach the brackets using four 6-32 x 1/4-in. panhead screws.
4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
