34 Ruckus ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-09
Installing the Ruckus ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)

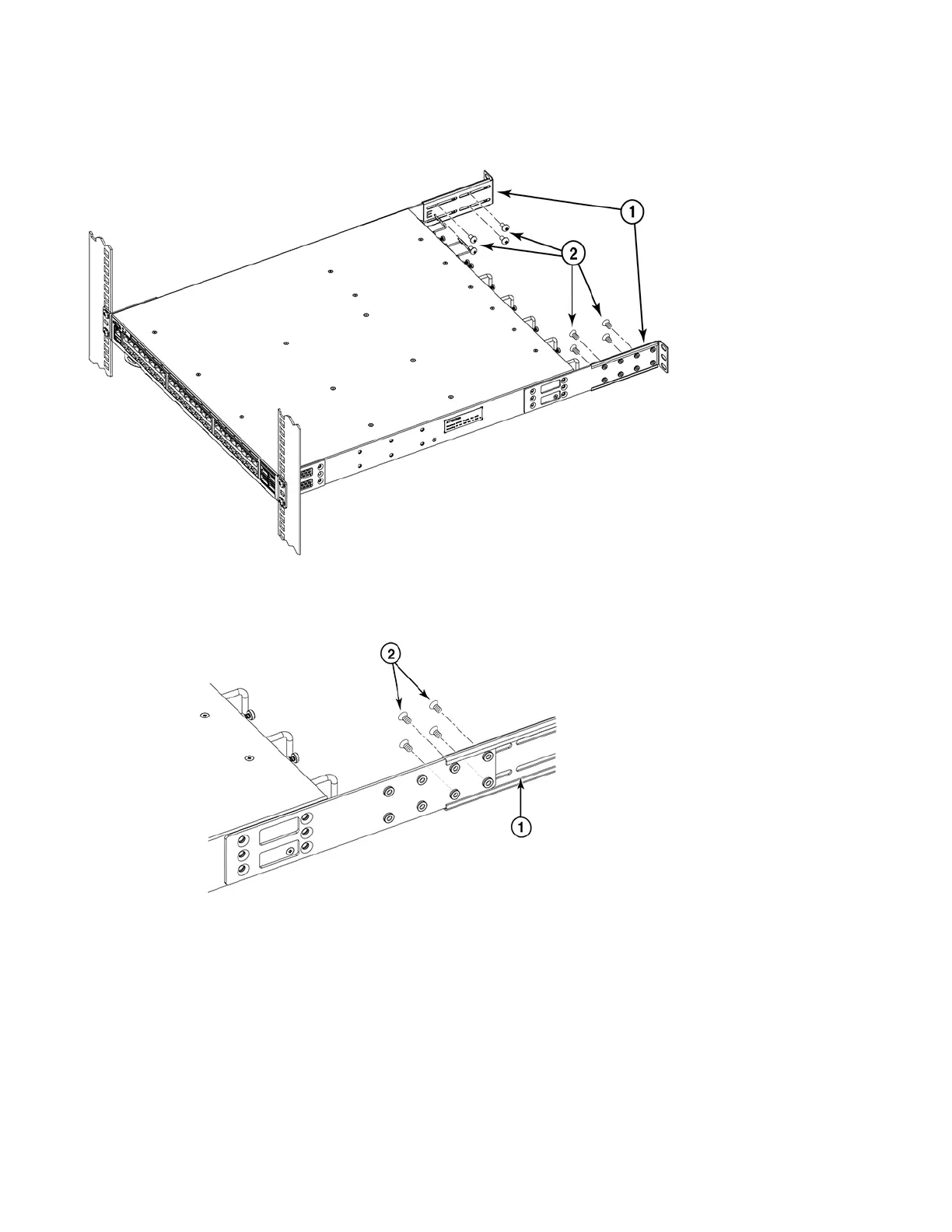

FIGURE 22 Attaching the rear brackets to the extensions
FIGURE 23 Attaching the medium or long rear brackets to the extensions
Attaching the rear brackets to the rack posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts, as
shown in Figure 24. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Rear brackets 2 Screws, 6-32 x 1/4-in., panhead Phillips
1 Rear bracket, medium or long 2 Screws, 6-32 x 1/4-in., panhead Phillips
