60 Ruckus ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-09
Ruckus ICX 7450 Operation
Ruckus ICX 7450 rear-panel LEDs
Ruckus ICX 7450 rear-panel LEDs
The Ruckus ICX 7450 has the following LEDs on the rear panel:
• Expansion module power LED: One bicolor status LED (green and amber)
• QSFP+ module LEDs: Four status LEDs (green) for the stacking port on the QSFP+ modules. Only the first LED is currently
used, and indicates the status of the port in 40 GbE mode.
• Power supply LEDs: One bicolor status LED (green and amber) on each installed power supply
• Fan tray LEDs: One bicolor status LED (green and amber) on each installed fan tray
Figure 48 shows the LEDs on the rear panel of the Ruckus ICX 7450.

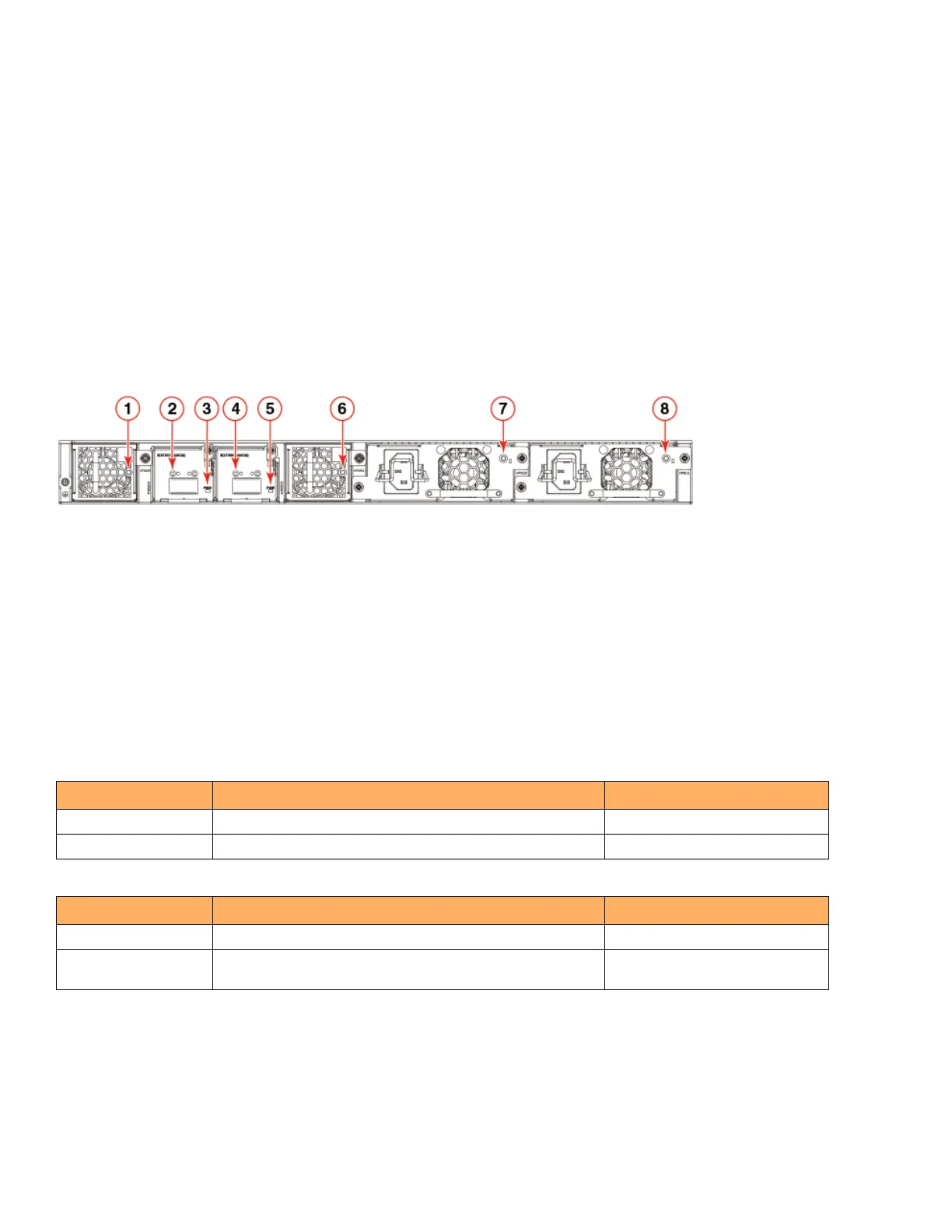

FIGURE 48 Ruckus ICX 7450 rear-panel LEDs
LED patterns
The following tables describe the Ruckus ICX 7450 LED patterns.
1 FAN2 fan tray LED 5 MOD3 power LED
2 MOD4 40 GbE QSFP+ link/activity LED for
stacking
6 FAN1 fan tray LED
3 MOD4 power LED 7 PSU2 status LED
4 MOD3 40 GbE QSFP+ link/activity LED for
stacking
8PSU1 status LED
TABLE 10 Management port left (10/100/1000 Mbps) status LED
LED state Status of hardware Recommended action
Off (no light) Not cabled or 10/100 Mbps link is up. No action required.
Steady green A 1000 Mbps link is up. No action required.
TABLE 11 Management port right (activity) status LED
LED state Status of hardware Recommended action
Off (no light) Not cabled or no packets are being transmitted or received. No action required.
Blinking green There is traffic and packets are being transmitted or received at 1000
Mbps.
No action required.
